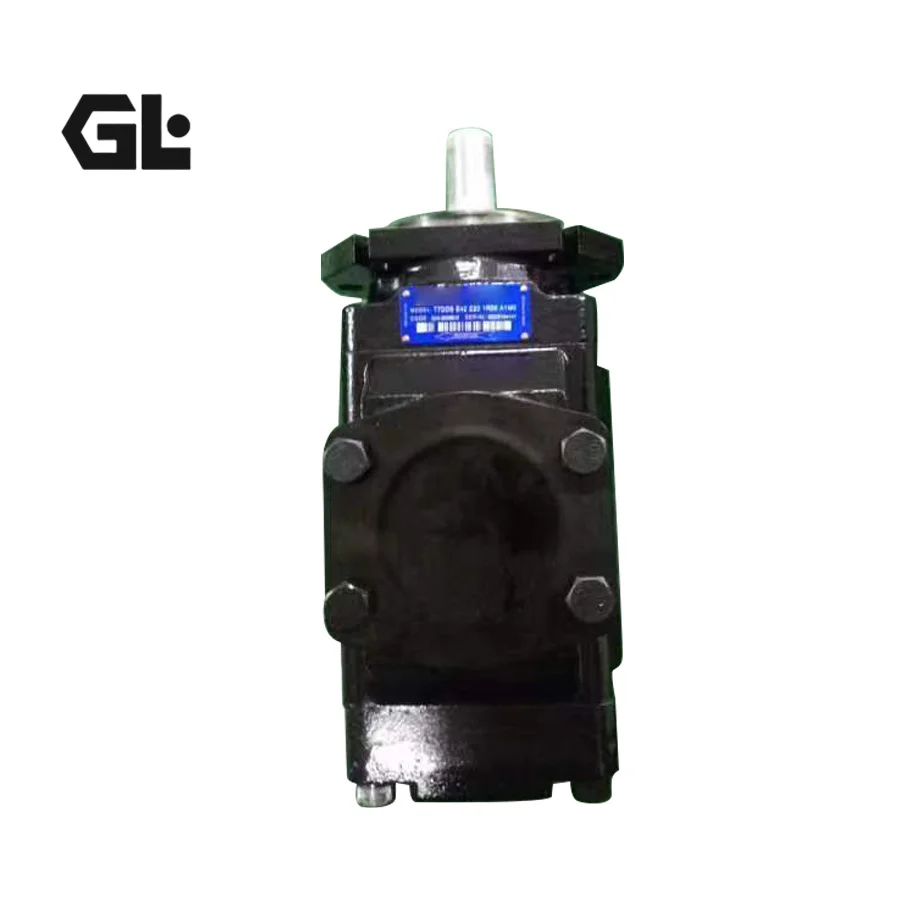

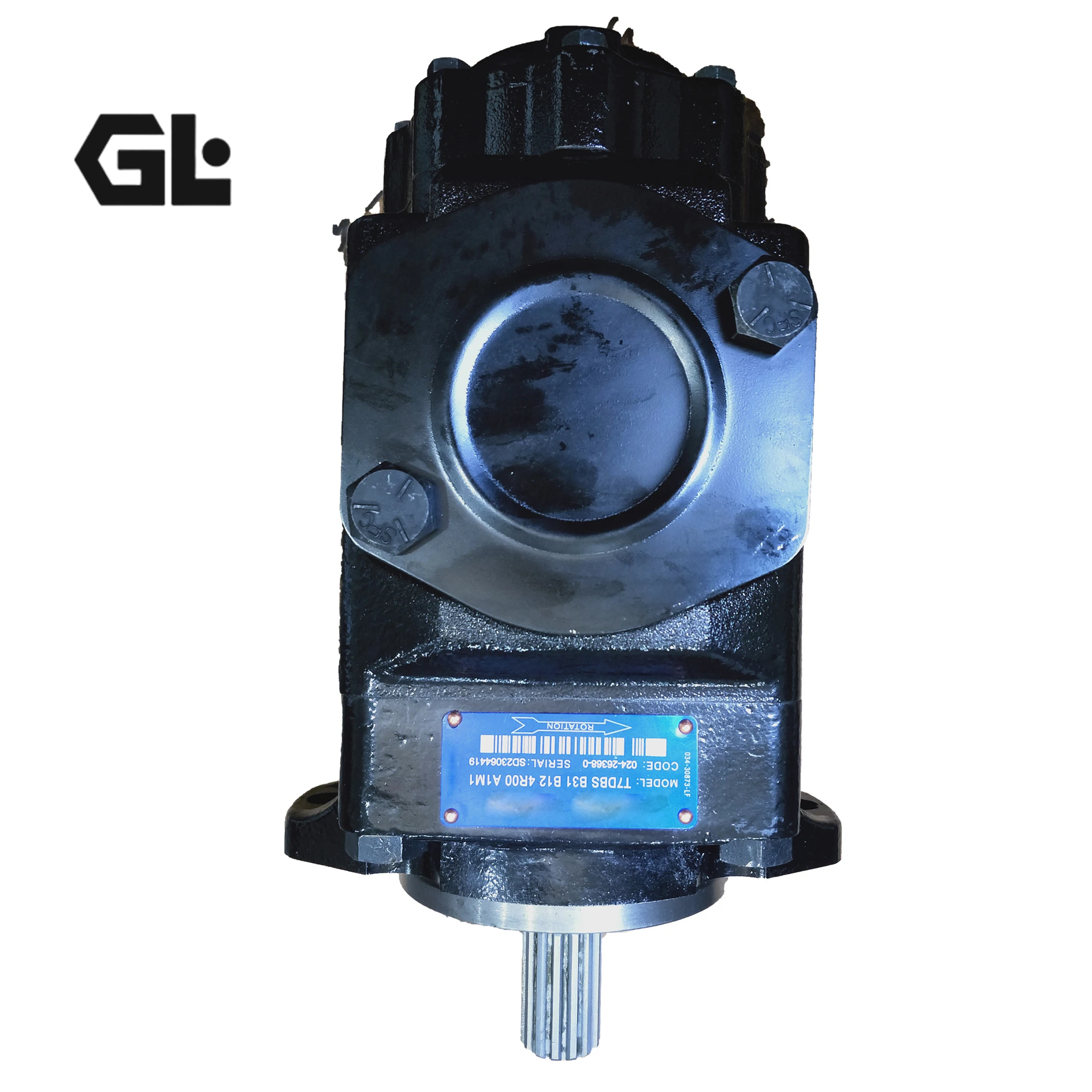

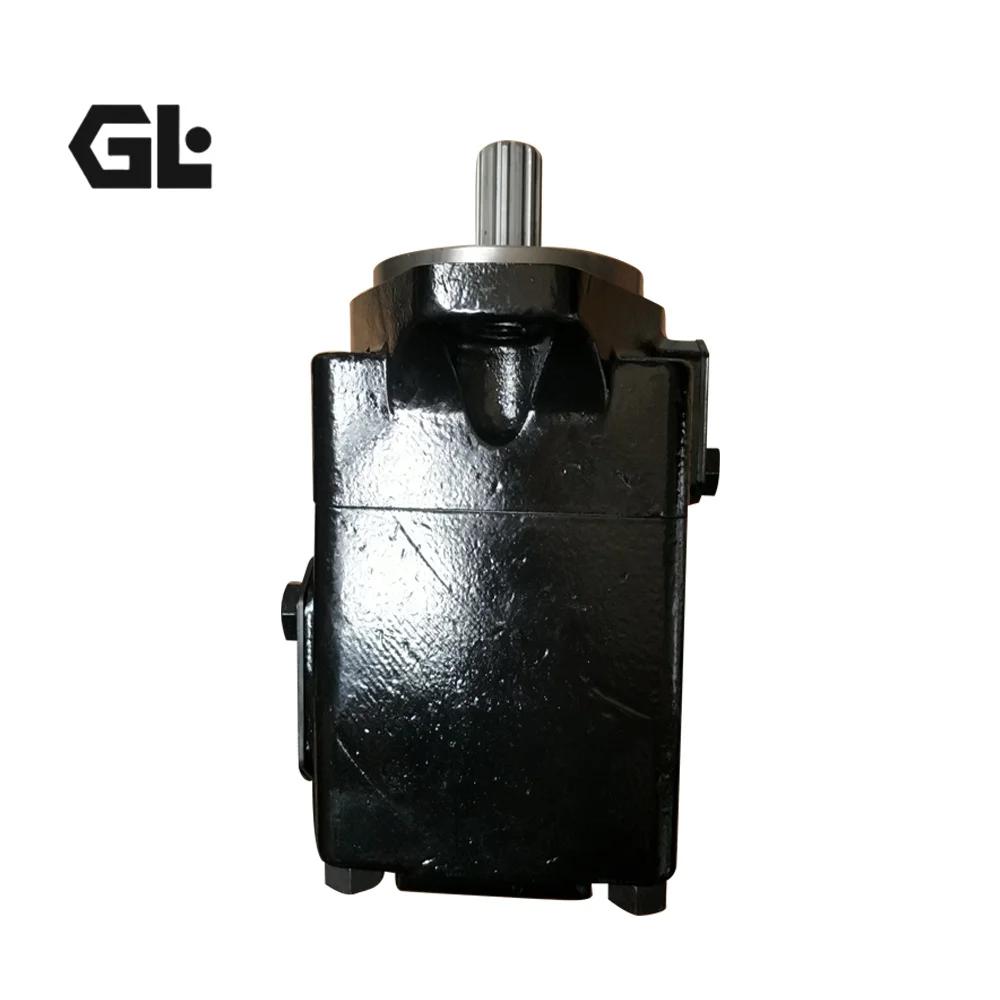

T7DBS-E38-E15 Parker Denison T7 Vane Pump 120+50cc 250bar

Product Overview
The T7DS / T7DBS series are Parker Denison T7 fixed-displacement vane pumps (single or double) designed for industrial high-pressure hydraulic systems. These units are precision direct interchanges for original Denison T7 models including T7DBS E38 E15 1R10 A1M0 and T7DS B35 3R00 A1M0. Featuring advanced cartridge construction and hydraulically balanced vanes, they deliver high volumetric efficiency and low noise. Every pump undergoes 100% simulated duty-cycle testing to guarantee exact match of mounting flanges, shaft ends, port locations and performance curves.

Technical Specifications (Bulleted List)

• Models: T7DBS E38 E15 1R10 A1M0 / T7DS B35 3R00 A1M0 (and T7DS / T7DBS range)
• Geometric displacement: E38 / B38 = 120.6 cm³/r; E15 / B15 = 50.0 cm³/r; B35 = 113.4 cm³/r
• Continuous rated pressure: 250 bar (up to 280 bar for certain sizes)
• Peak pressure: up to 280–300 bar intermittent
• Maximum speed: 1800–2800 r/min depending on displacement
• Minimum recommended speed: approx. 600 r/min
• Control type: Fixed displacement (no variable control); single or double section; keyed or splined shaft; clockwise or counterclockwise rotation
• Approximate weight: 26–40 kg depending on configuration
• Ports: SAE flange
• Seals: Buna-N / Viton / EPDM optional
• Mounting flange: SAE C or ISO

Key Technical Advantages

1. Cartridge design: Allows rapid cartridge replacement without removing the pump body, minimizing downtime.
2. Hydraulically balanced vanes and floating side plates: Reduce wear and automatically compensate clearance for high volumetric efficiency and low internal leakage.
3. Precision machining for true interchangeability: Matches original Denison mounting dimensions, shaft ends and port orientations exactly—direct drop-in replacement.
4. Low noise and high reliability: Optimized flow paths minimize ripple; quality bearings and seals support continuous high-pressure duty.
5. 100% simulated operating-condition testing: Full pressure, flow, leakage and noise verification ensures consistency with OEM performance curves.

Application Areas
Injection molding machines, die-casting machines, machine-tool hydraulic systems, presses, steel and metallurgical equipment, port machinery, industrial power units and medium-to-high-pressure fixed hydraulic systems.

Expert Maintenance Tips
Ensure precise shaft alignment during installation to avoid excessive radial or axial loads. Maintain inlet pressure between 0 and 0.5 bar to prevent cavitation. Use anti-wear hydraulic oil (ISO VG 32–68 recommended); target system cleanliness of ISO 18/16/13 or better. Fully bleed air before initial start-up and monitor temperature and leakage during break-in. Cartridge kits can be replaced without removing the pump body. Periodically inspect shaft seals and bearings; never allow dry running.
