TB0100FS100AAAA Parker TB Torqmotor 98cc LSHT Orbital Motor

Product Overview

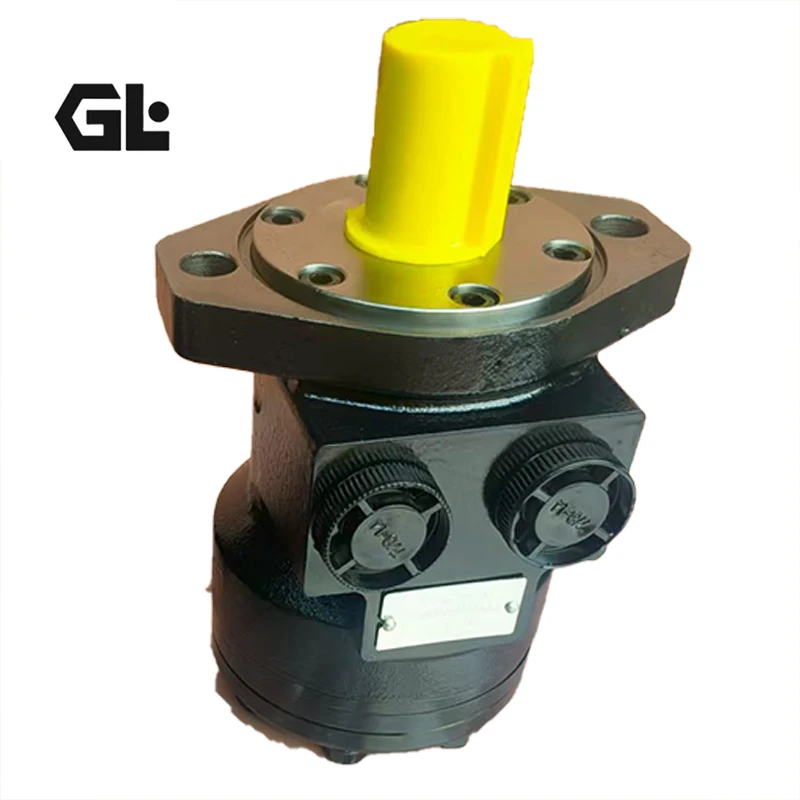

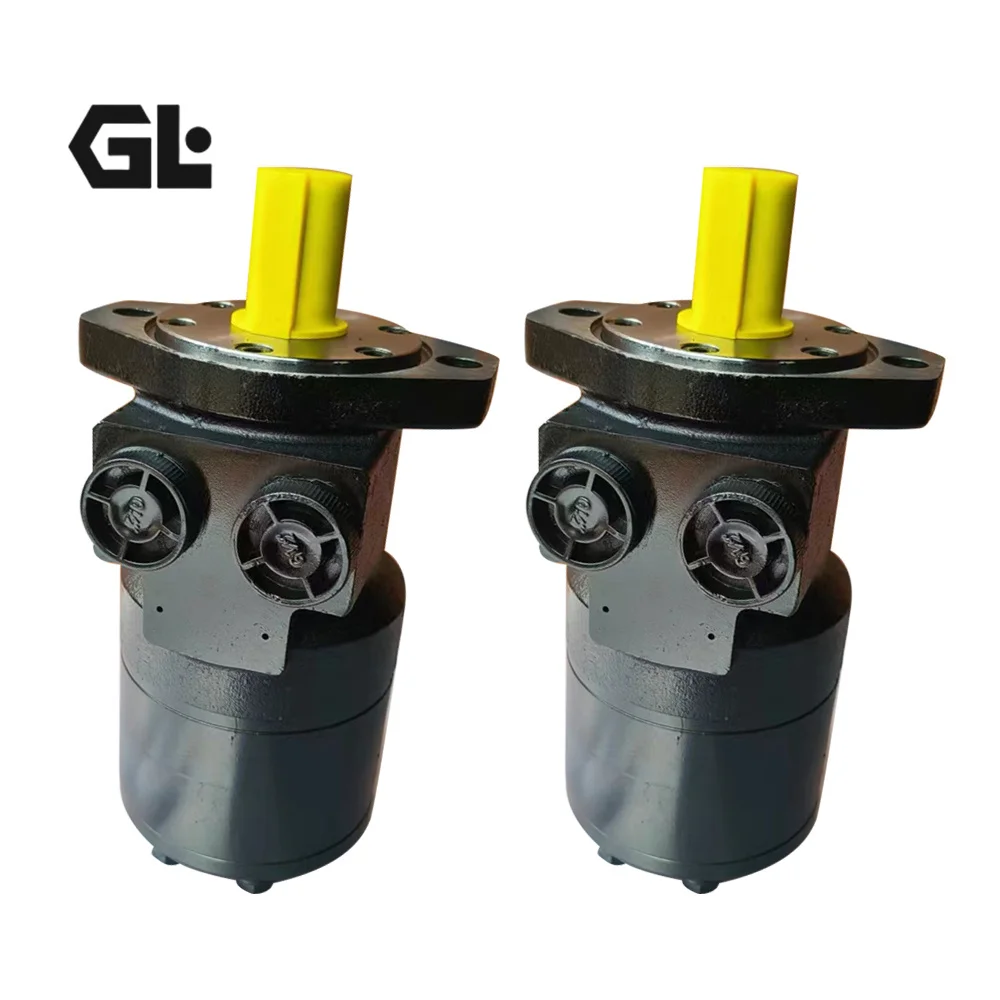

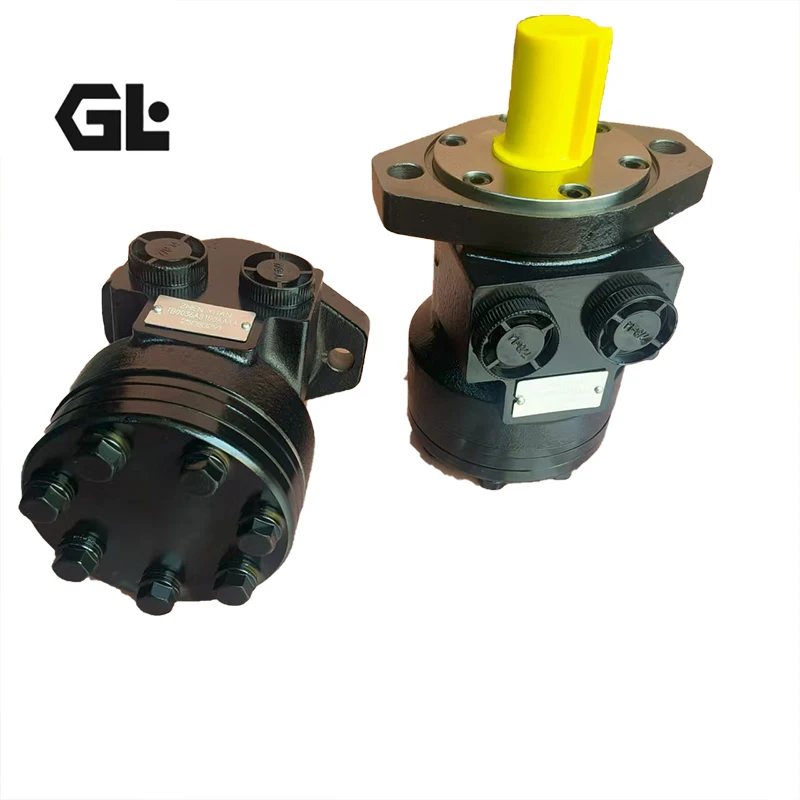

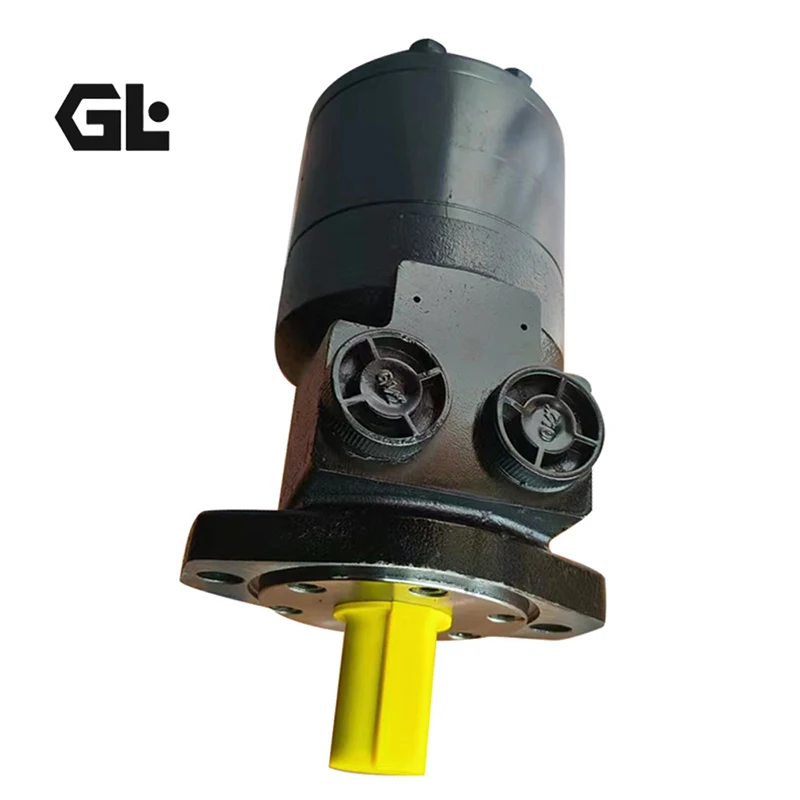

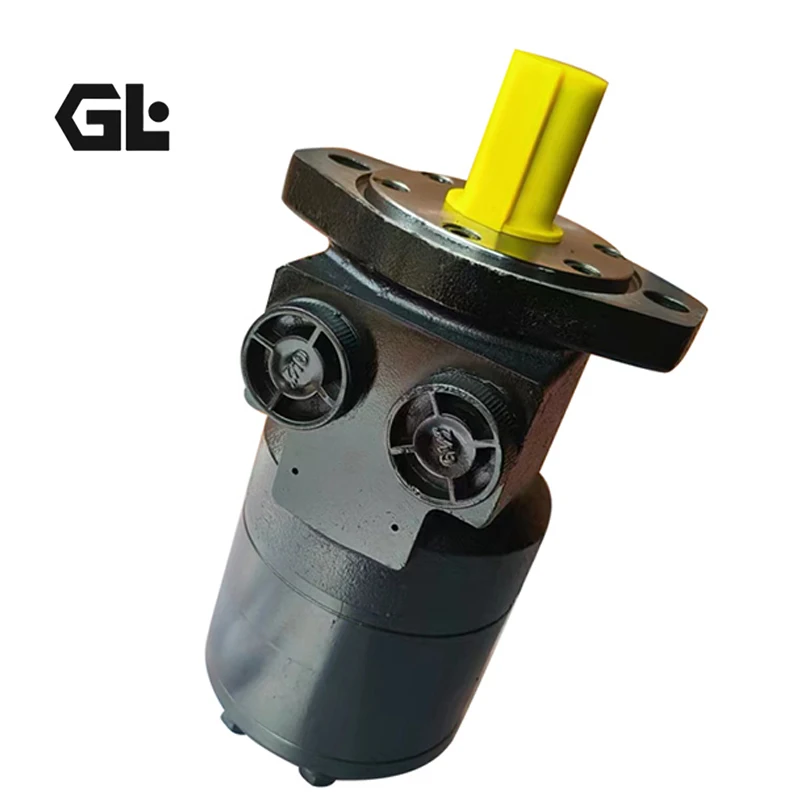

The TB0100FS100AAAA, TB0160FS100AAAA, TB0295AP260AAAA and TB0390AP100AAAA are precision drop-in interchangeable light-duty high-torque low-speed orbital hydraulic motors for the Parker TB Series Torqmotor™. Featuring roller-vane technology, high-pressure shaft seals and continuous spline cooling, they deliver superior side-load capacity (up to 1100 lb) and exceptionally smooth low-speed operation. Every unit undergoes 100% simulated operating-condition testing to guarantee identical mounting dimensions, performance curves and control characteristics to genuine Parker TB motors—ready for direct replacement in light-to-medium duty mobile and industrial hydraulic drive systems.

Technical Specifications

• Models: TB0100FS100AAAA / TB0160FS100AAAA / TB0295AP260AAAA / TB0390AP100AAAA (Parker TB Series interchange)
• Geometric displacement: TB0100 98 cm³/rev (6.0 in³/rev); TB0160 approx. 163 cm³/rev (10.0 in³/rev); TB0295 293 cm³/rev (17.9 in³/rev); TB0390 392 cm³/rev (24.0 in³/rev)
• Continuous differential pressure: 125 bar (1800 PSID for smaller sizes); lower for larger displacements (approx. 83–100 bar)
• Intermittent differential pressure: 165 bar (2400 PSID for smaller sizes)
• Maximum supply pressure: 190 bar (2750 PSID)
• Maximum continuous speed: TB0100 454 rpm; lower for larger sizes (TB0390 approx. 143 rpm)
• Maximum continuous flow: 45 L/min (12 GPM); intermittent up to 57 L/min
• Continuous torque: TB0100 159 Nm (1411 lb-in); TB0295 approx. 383 Nm; TB0390 approx. 428 Nm
• Intermittent torque: TB0100 217 Nm (1917 lb-in); up to approx. 540 Nm for larger sizes
• Minimum starting torque (continuous): TB0100 approx. 119 Nm
• Maximum output power: approx. 7.8–13.8 kW depending on displacement
• Typical mounting: 4 Bolt with 3/8″-16 UNC (F code) or SAE A
• Shaft: common 1″ keyed
• Ports: 7/8-14 SAE or 1/2-14 NPTF
• Side-load capacity: up to 4900 N (1100 lb) at the key
• Control: Standard bidirectional rotation
• Weight: approx. 6–10 kg depending on displacement

Key Technical Advantages

1. Roller-vane automatic wear compensation: Ensures high volumetric efficiency and long life with smooth, shock-free low-speed operation.
2. High-pressure shaft seal and case-drain-free design: Shaft seals withstand full system pressure; full-flow internal cooling and flushing eliminate the need for a separate case drain.
3. Continuous spline cooling and precision manufacturing: Splines are continuously flushed with cool fluid; DU and sintered copper/steel bushings enhance side-load capacity and wear resistance.
4. Economical light-duty construction with heavy-duty features: 1-inch nominal shaft, 1100 lb side-load capability and robust design make it ideal for cost-effective light-to-medium duty applications while retaining key reliability features of larger motors.

Application Areas

Conveyors, gear-box drives, winches, boom-rotate systems, augers, agricultural and municipal equipment, light construction attachments, and fixed industrial hydraulic systems requiring reliable low-speed high-torque output.

Expert Maintenance Tips

Verify exact flange and shaft configuration match the original machine (FS = 4-bolt + 7/8-14 SAE ports etc.) before installation. Use clean hydraulic fluid with adequate filtration (β10 ≥ 75 recommended). Fully bleed the system prior to first operation to avoid dry running. Periodically inspect shaft and port seals; strictly observe the maximum side-load limit (4900 N). Maintain oil temperature within recommended range and limit intermittent high-pressure operation to no more than 10% of total running time. For long-term storage, protect against corrosion and seal all ports.
