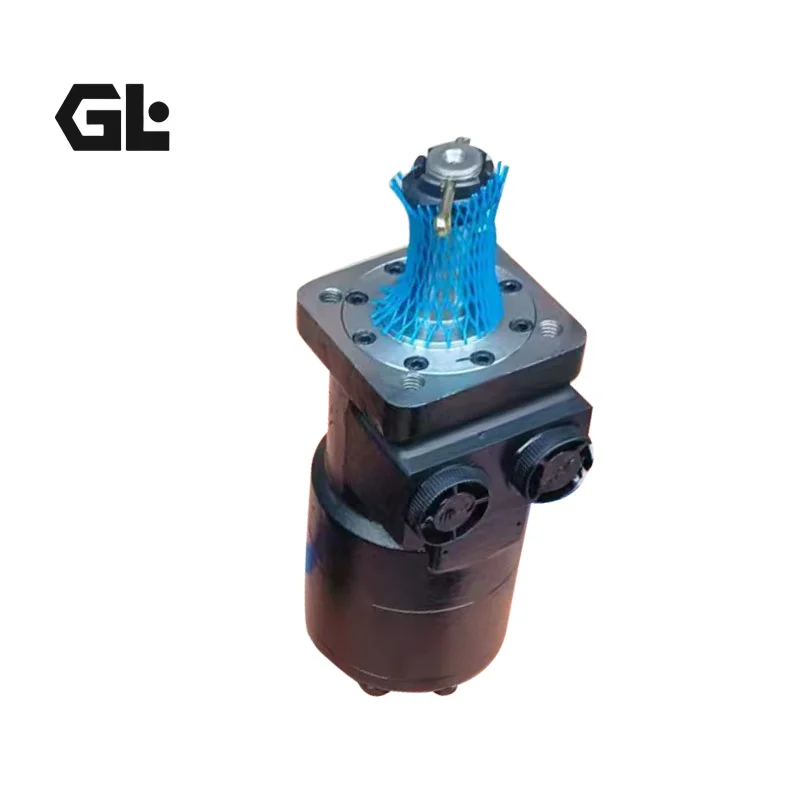

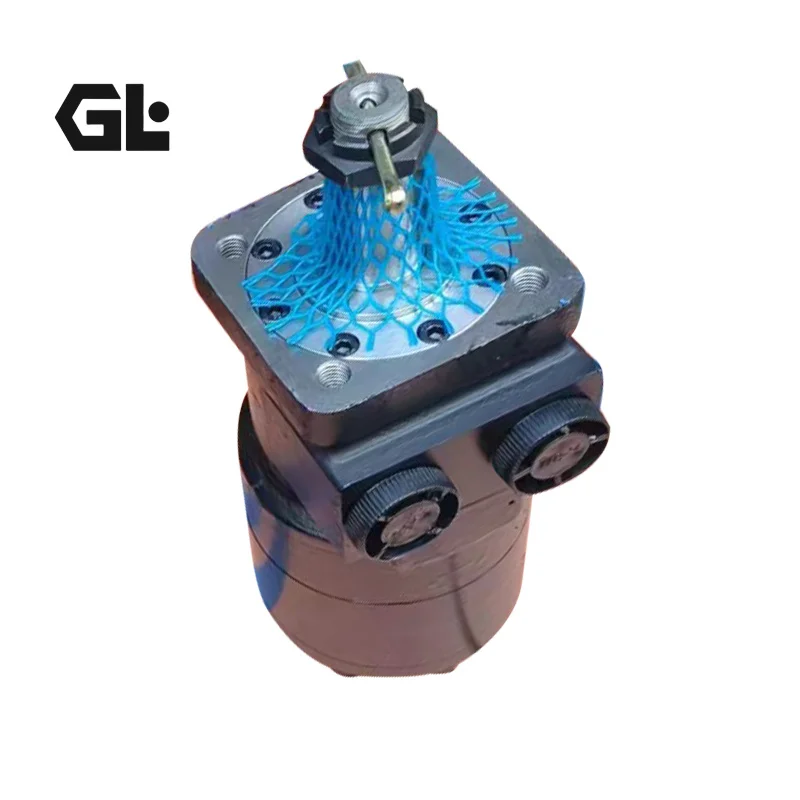

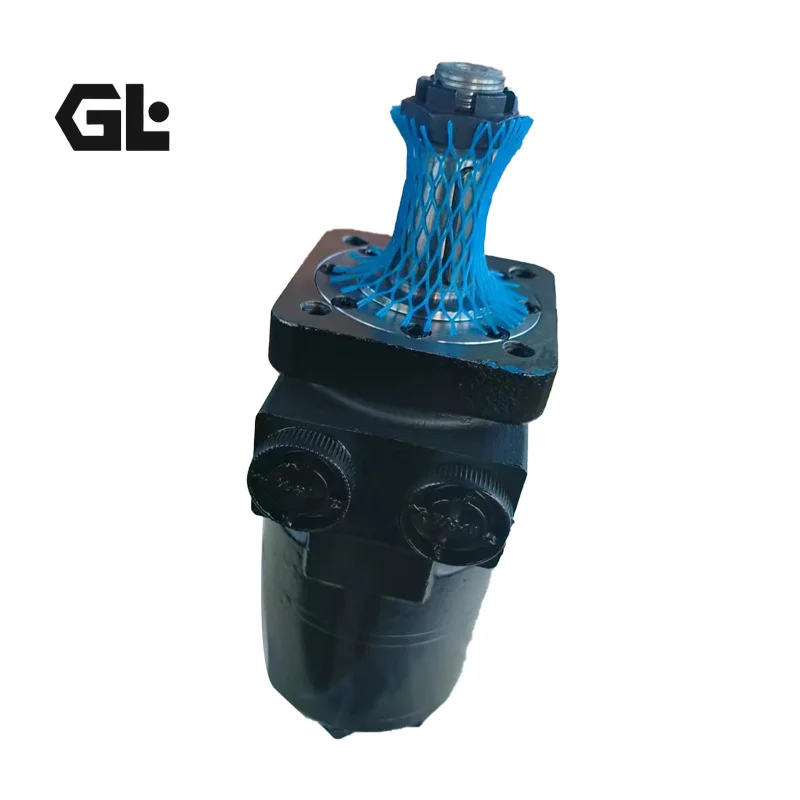

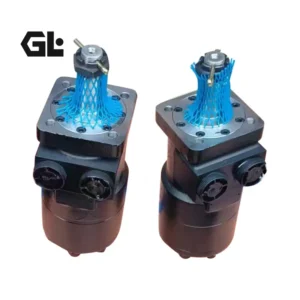

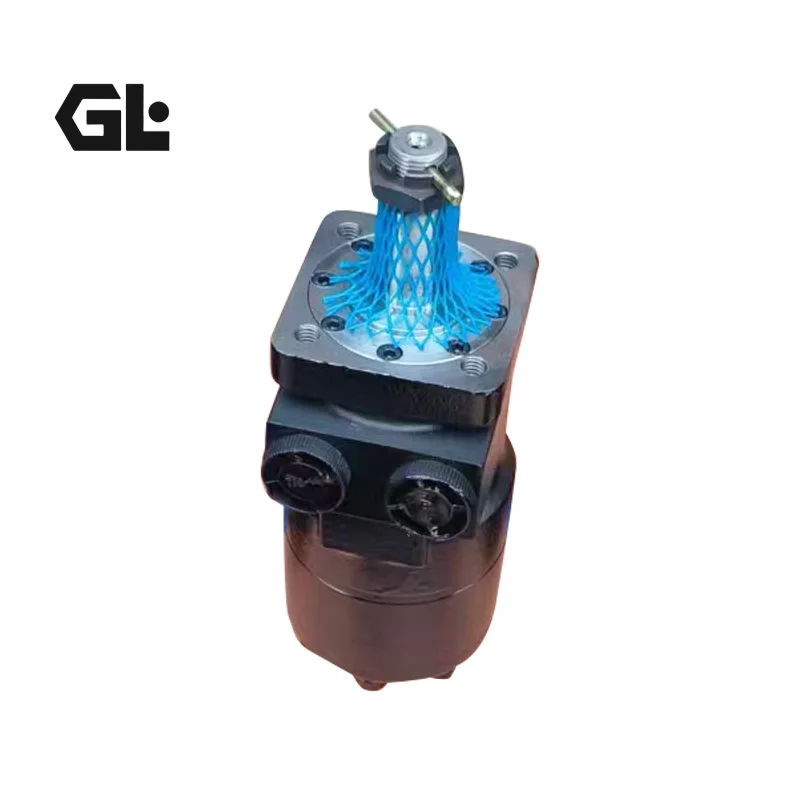

TC0230 Parker Torqmotor High Torque Orbital Motor 228cc

Product Overview

Parker Torqmotor™ TE Series low-speed high-torque orbital hydraulic motors (including models TE0240AS030AAAA, TE0195CN410AAAB, TE0100CW260LABA and related configurations) are low-speed high-torque (LSHT) fixed-displacement motors. Featuring precision Gerotor design and roller bearings, they deliver superior side-load capacity, excellent starting torque, and smooth low-speed operation for light- to medium-duty applications. These motors offer exact drop-in interchangeability with original Parker units. Every motor undergoes 100% simulated operating-condition testing to guarantee high volumetric efficiency, consistent performance, and extended service life—ideal for OEM integration and replacement in vehicle propulsion, augers, chain drives, winches, and boom-rotate systems.

Technical Specifications

• Models: TE0100CW260LABA / TE0195CN410AAAB / TE0240AS030AAAA (and other TE Series configurations)
• Displacement: TE0100 = 98 cm³/rev; TE0195 = 195 cm³/rev; TE0230/TE0240 ≈ 228 cm³/rev (series range approx. 36–392 cm³/rev)
• Continuous (rated) differential pressure: up to approx. 140 bar / 2000 psi (varies by size)
• Peak (intermittent) differential pressure: up to approx. 190 bar / 2750 psi
• Maximum speed: series up to approx. 1141 rpm (higher for smaller sizes); TE0100 approx. 582 rpm; TE0195 approx. 292 rpm; TE0230 approx. 246–328 rpm range
• Maximum flow: continuous approx. 34–57 L/min, intermittent up to approx. 75 L/min
• Control type: Fixed displacement (quantitative) orbital design
• Maximum torque: continuous up to approx. 445 Nm range, higher intermittent
• Weight: approx. 6–9 kg (varies by size)
• Additional: Roller bearings; high-pressure shaft seal; side-load capacity up to approx. 1500 lb

(Data extracted from official Parker Torqmotor TE Series technical literature; actual performance depends on exact configuration and operating conditions.)

Key Technical Advantages

1. Precision-machined orbital elements with continuous internal spline oil-flow cooling deliver high volumetric efficiency, superior starting torque, and smooth crawl-free low-speed operation.
2. Roller bearings and high side-load design support dynamic loading from chain/sprocket couplings in a robust package.
3. High-performance shaft seal with cooling supports elevated case pressure, simplifies plumbing, reduces leak points, and extends service life.
4. 100% simulated-condition testing combined with true drop-in interchangeability ensures consistent performance and minimized downtime.

Application Areas

• Vehicle propulsion, augers, and chain-drive systems
• Winches, boom-rotate mechanisms, and light- to medium-duty construction equipment
• Applications requiring reliable low-speed high-torque hydraulic drive with high side-load capacity
• Other mobile systems demanding compact installation and high reliability

Expert Maintenance Tips

Use clean hydraulic oil meeting DIN 51524 with filtration to at least ISO 4406 18/16/13. Do not exceed intermittent pressure or speed ratings (intermittent duty limited to 10% of each minute). Ensure proper alignment and full system bleeding during installation. Periodically inspect shaft seals and bearings. Protect ports and shaft ends during storage and transport to prevent contamination and impact damage.
