TE0330CW260LAAY Parker Torqmotor TE Series Orbit Motor 330cc

Product Overview

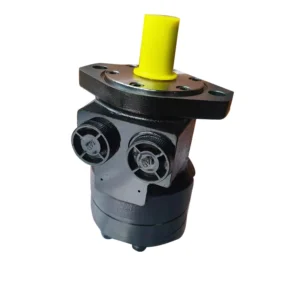

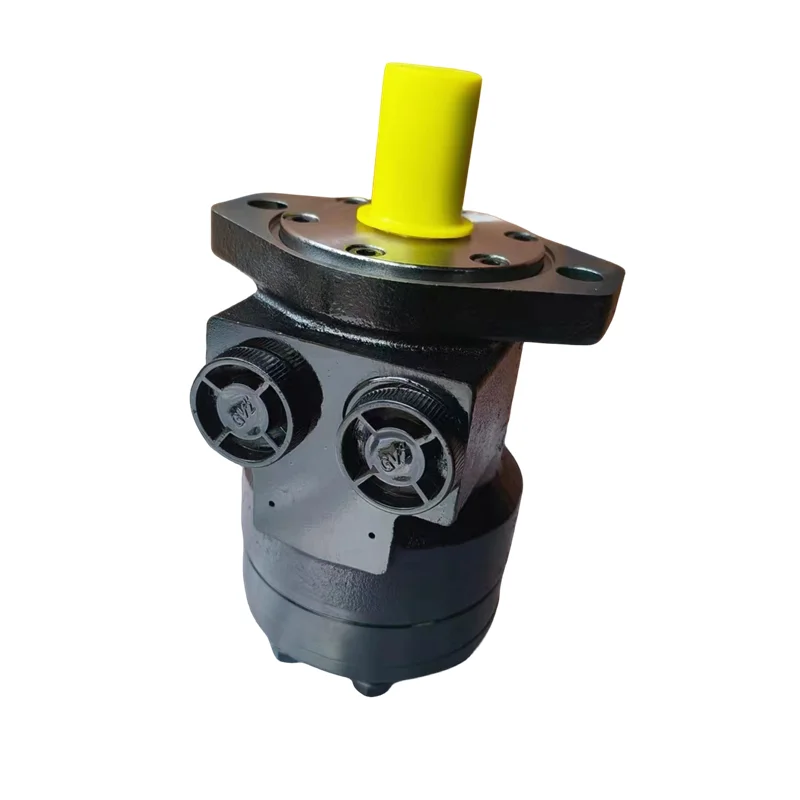

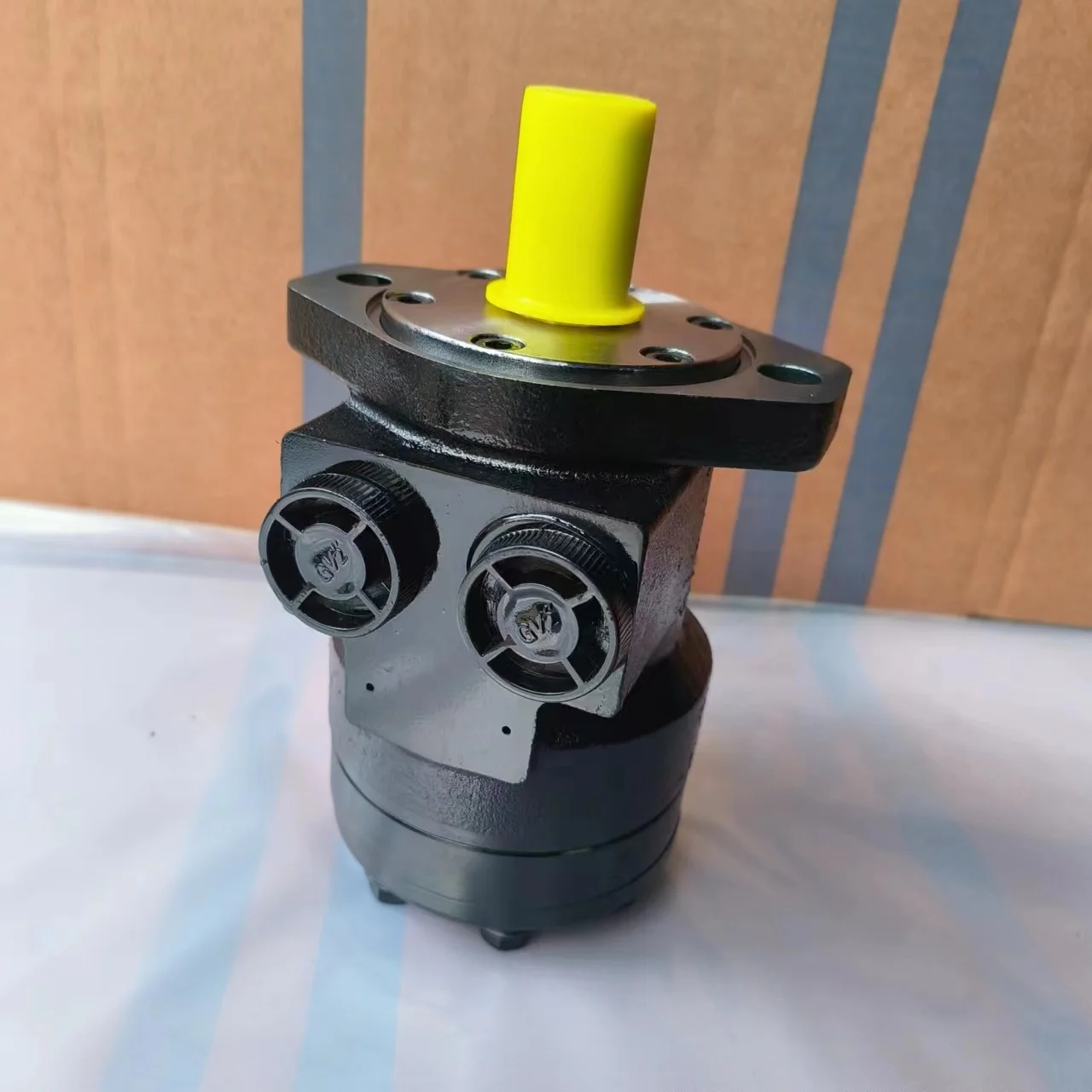

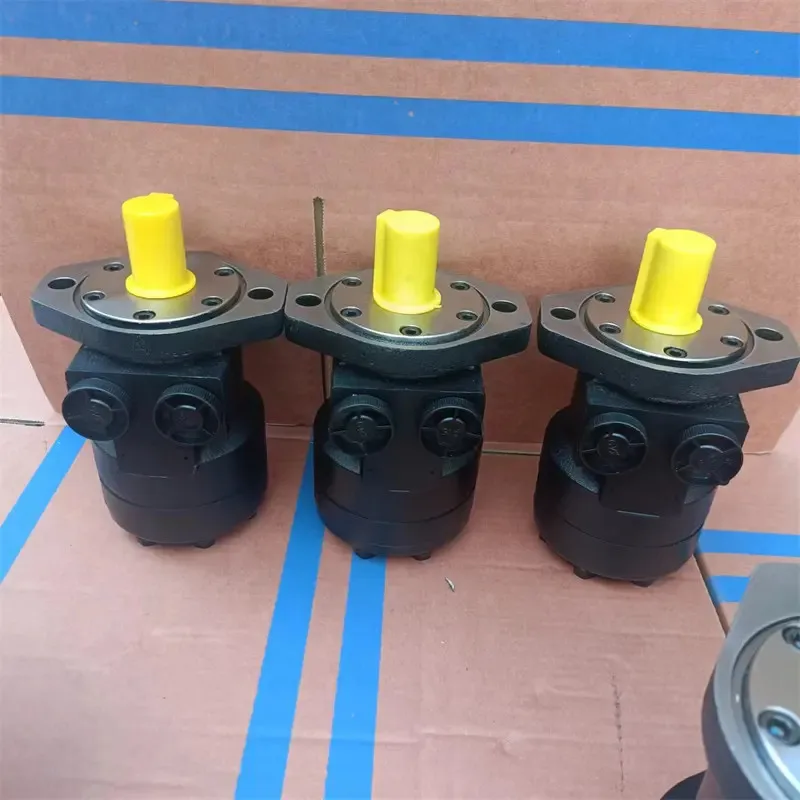

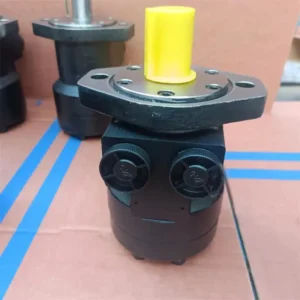

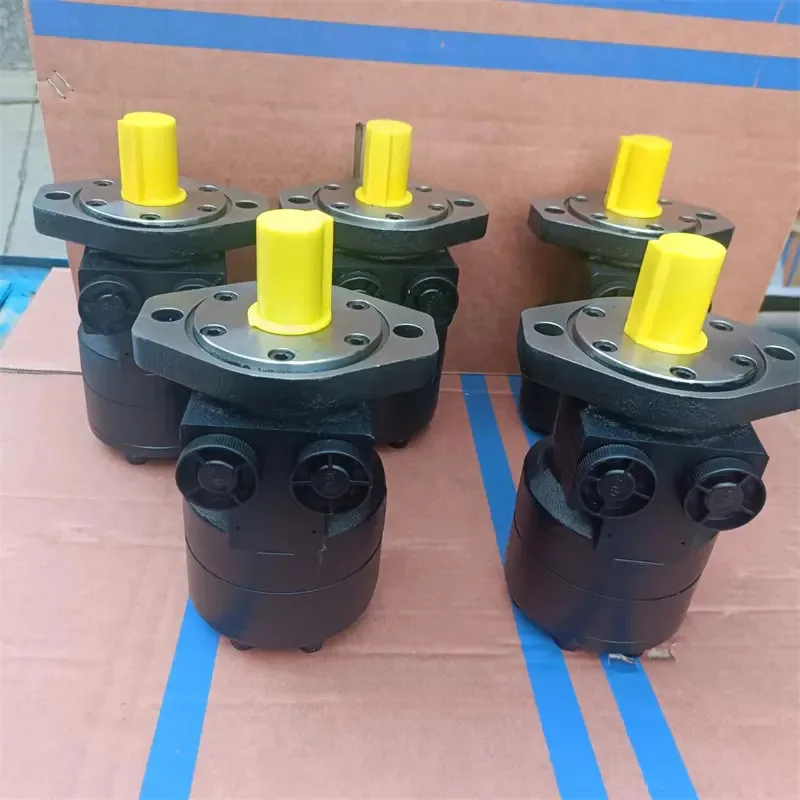

The Parker TE0330CW260LAAY is a Torqmotor™ TE Series low-speed high-torque gerotor hydraulic motor with a displacement of 330 cc/rev. Featuring disc valve distribution and a Geroler roller-stator set, this model belongs to the large-displacement segment of the TE Series (TE0330), specifically engineered for light-to-medium duty drive applications requiring excellent radial load capacity and smooth low-speed operation.

The TE0330CW260LAAY is a direct drop-in replacement for Parker Torqmotor™ TE Series motors of matching specifications, as well as Danfoss OMT 315 and M+S MT 315 equivalents. Every unit undergoes 100% simulated load-condition bench testing before shipment, covering continuous pressure, intermittent pressure, and the full speed range to ensure performance parity with OEM specifications.

Technical Specifications

• Model: TE0330CW260LAAY (Parker Torqmotor™ TE Series)

• Geometric Displacement: 326 cm³/rev (330 cc/rev nominal)

• Continuous Working Pressure: 2000 psi (approx. 138 bar)

• Intermittent Working Pressure: 2750 psi (approx. 190 bar)

• Maximum Speed: Approx. 380 rpm (TE Series 330 displacement reference)

• Continuous Output Torque: Approx. 648 N·m (TE Series maximum torque reference)

• Rated Flow: 60 L/min

• Maximum Dynamic Radial Load: 6672 N (at keyway)

• Shaft Diameter: 25.4 mm (1 inch)

• Control Type: Disc valve distribution; bidirectional rotation; speed infinitely adjustable via hydraulic flow

• Bearing Type: Roller bearings

• Weight: Approx. 8.4 kg

Data source: Parker Torqmotor™ TE Series official specifications (Kuil Nicos distributor technical data and Hidraoil product data). Simultaneous operation at maximum speed and maximum pressure is not permitted.

Key Technical Advantages

1. No Case Drain Required

The TE Series’ most significant design innovation eliminates the need for an external case drain line. Conventional orbit motors require a dedicated drain circuit to return case leakage to the reservoir, but the TE Series employs a high-pressure shaft seal and optimized internal porting to balance case pressure naturally. This design directly reduces hose, fitting, and installation labor costs for machine builders — a decisive advantage in space-constrained compact drive systems.

2. High Radial Load Capacity with Roller Bearings

The TE0330CW260LAAY output shaft is supported by roller bearings, rated for a maximum dynamic radial load of 6672 N at the keyway. This bearing configuration allows the motor to directly drive chain sprockets, gears, and other mechanisms subject to significant radial forces without additional bearing housings or support structures — ideal for chain and gear direct-drive applications.

3. Continuous Oil Flow Tooth Cooling

The TE Series internal porting directs hydraulic oil continuously across the rotor-stator tooth surfaces during operation, providing continuous cooling and lubrication. This design effectively reduces tooth contact temperature, decreases wear rate, and significantly extends motor service life under continuous heavy-load conditions while maintaining high volumetric efficiency.

4. High-Pressure Shaft Seal and Ultra-Low Speed Smoothness

The standard high-pressure shaft seal enables the TE0330CW260LAAY to operate reliably under elevated backpressure while ensuring smooth output at ultra-low speeds. The precision-matched tolerances between the disc valve plate and Geroler roller-stator set allow stable torque output at extremely low speeds, free from stick-slip or pulsation.

Application Areas

• Municipal & Specialty Vehicles: Street sweeper brush drives, snow removal auger drives

• Agricultural Machinery: Combine harvester reel drives, tractor implement drives

• Construction Equipment: Compact excavator swing drives, skid-steer attachment drives

• Lawn & Landscape Equipment: Mower deck drives, aerial work platform travel drives

• Material Handling: Conveyor drives, winch and hoist mechanisms

• Industrial Automation: Factory automation line drives, specialty equipment rotary mechanisms

Expert Maintenance Tips

Installation Guidelines:

• Before installation, verify system oil cleanliness reaches NAS Class 9 or better. Although the TE Series is less contamination-sensitive than shaft-distribution designs, particles embedded in the disc valve face can still reduce volumetric efficiency. Install a 10μm filter upstream of the motor inlet.

• Shaft alignment between motor and load must be within 0.05mm, using a flexible coupling. While the roller bearing design tolerates some radial load, misalignment accelerates bearing wear.

• When leveraging the TE Series’ no-case-drain feature to simplify plumbing, confirm case pressure does not exceed the shaft seal rating to prevent premature seal failure.

Operational Maintenance:

• Before initial operation, run the motor at no more than 30% of maximum working pressure for at least 30 minutes of no-load break-in to allow the rotor-stator interface to seat properly.

• Normal operating oil temperature should not exceed 80°C. If case temperature rises abnormally, prioritize checking system internal leakage and distribution face wear.

• Inspect motor volumetric efficiency every 2,000 operating hours or every 12 months. If efficiency drops by more than 10% of rated value, disassemble and inspect the valve plate and rotor-stator assembly.
