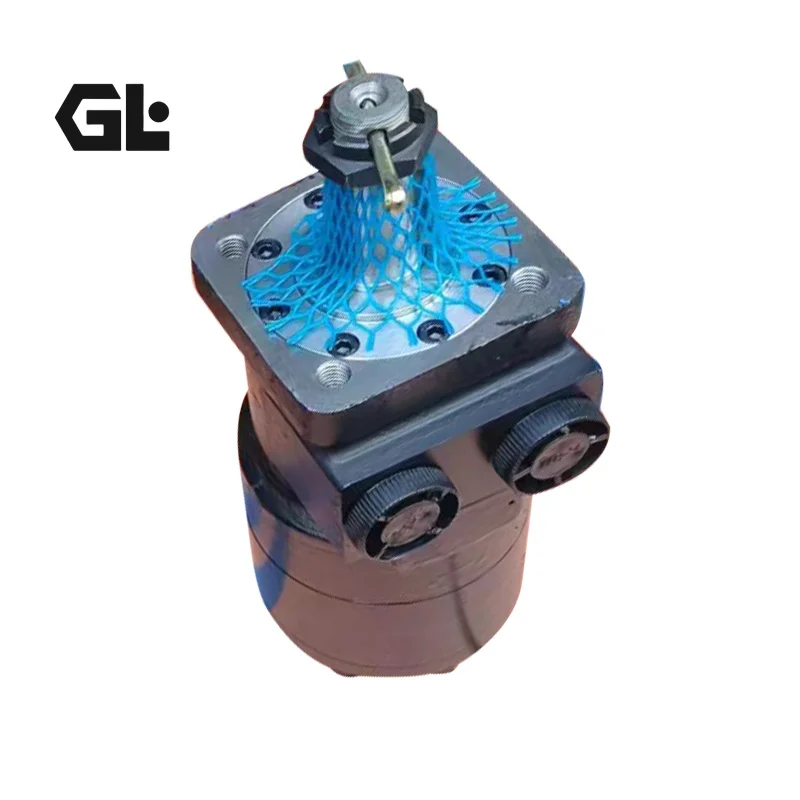

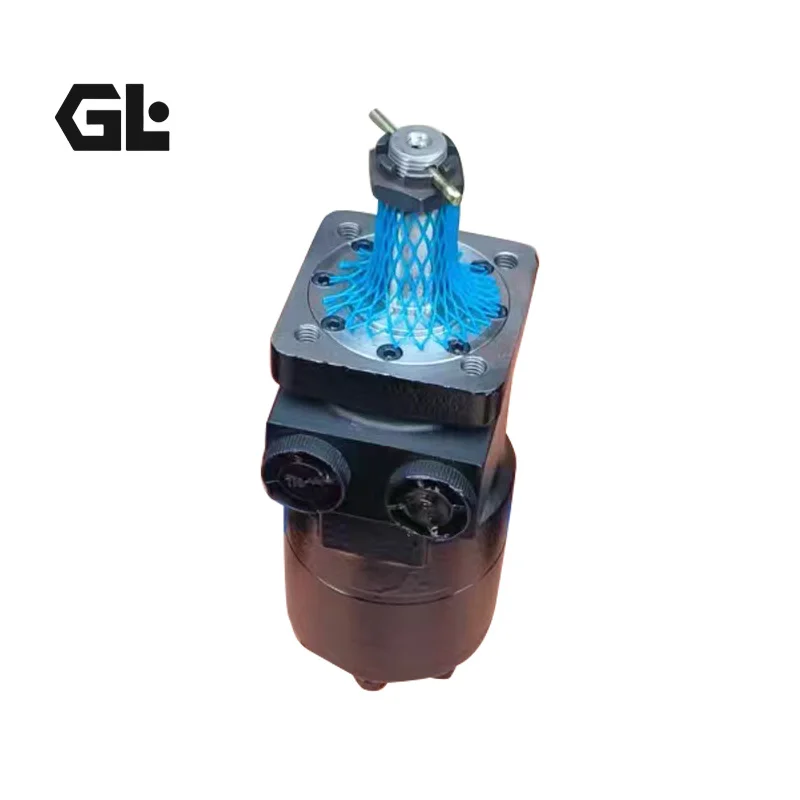

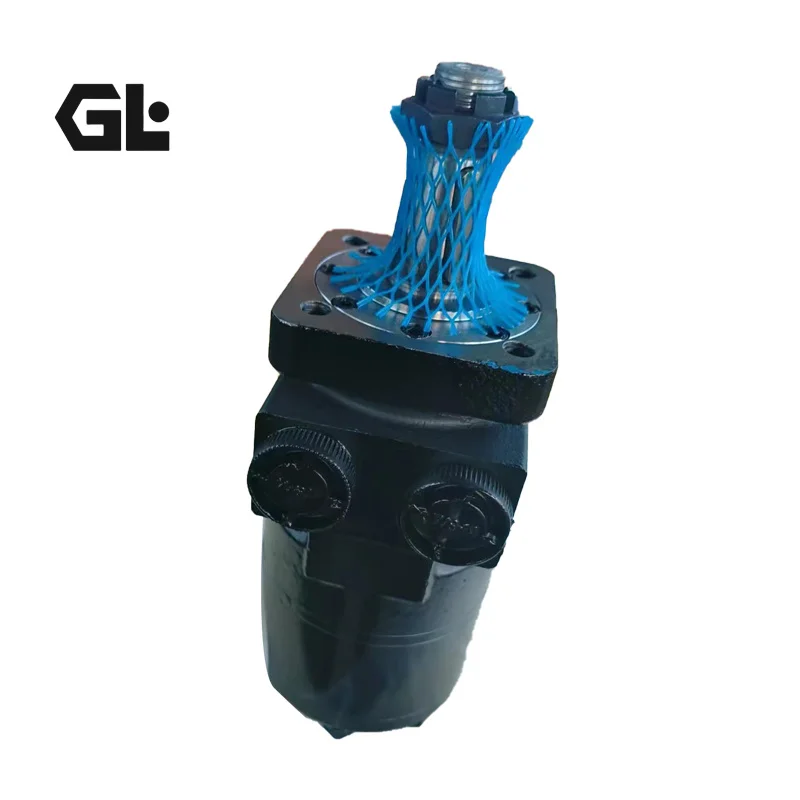

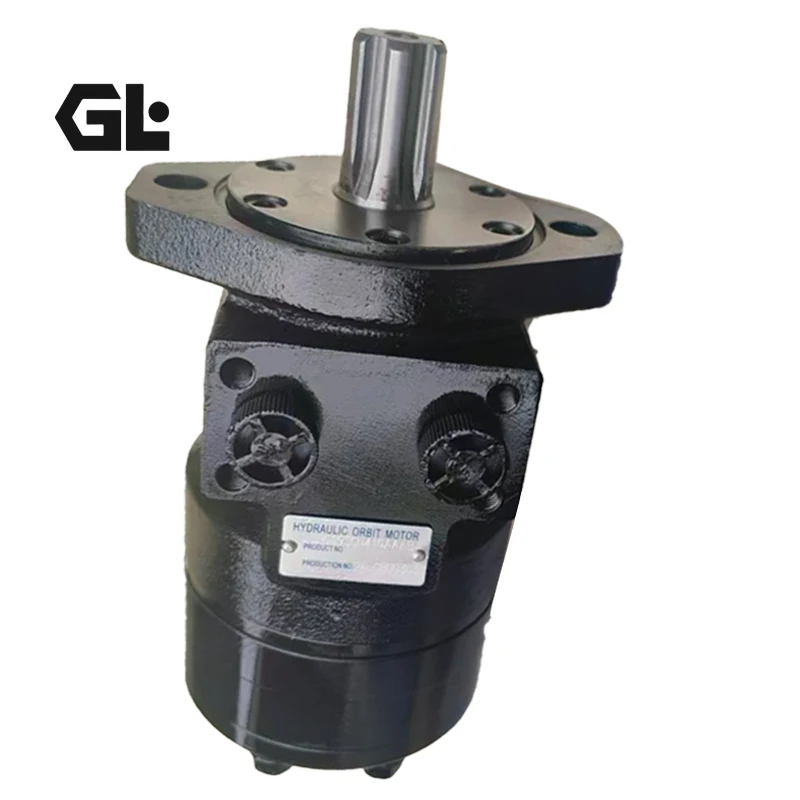

Product Overview
The Parker Torqmotor™ TE Series is a light-duty low-speed, high-torque (LSHT) orbital hydraulic motor featuring an inlaid-column Geroler gear set with a patented commutation system. It spans displacements from 36 to 392 cm³/rev, with intermittent pressure ratings up to 190 bar (2,750 psi), intermittent torque up to 648 Nm (5,728 lb-in), and maximum speeds reaching 1,141 rpm. The TE Series is the only motor in its class with roller bearings, carrying up to 6,672 N dynamic side load at the key and withstanding the pounding delivered by chain and sprocket couplings.
The three core models covered herein — TE0100CW261LAAC (98 cm³/rev), TE0165CW690AAAA (163 cm³/rev), and TE0195CN410AAAB (195 cm³/rev) — are manufactured to Parker OEM specifications with 100% drop-in interchangeability. Mounting flange dimensions, shaft specifications, and port configurations correspond exactly to genuine Parker products, requiring no modification to piping or drivetrain interfaces. Every unit undergoes 100% simulated duty-cycle testing before shipment, verifying volumetric efficiency, torque output, and seal integrity. The TE Series features a standard high-pressure shaft seal, and its innovative design eliminates the need for a case drain line, simplifying system layout and reducing potential leak paths. Designed and manufactured in Greeneville, TN USA, every unit undergoes rigorous quality inspection before shipment.
Technical Specifications
TE0100CW261LAAC (Displacement Code: 0100, CW Mount, 261 Shaft, LAAC Configuration):
Model: TE0100CW261LAAC
Brand: Parker Torqmotor™ TE Series
Geometric Displacement: 98 cm³/rev (6.0 in³/rev)
Max. Speed Intermittent: 582 rpm
Max. Pressure Differential Continuous / Intermittent: 140 bar (2,030 PSID) / 190 bar (2,750 PSID)
Max. Continuous Torque: 190 Nm (1,682 lb-in)
Max. Intermittent Torque: 264 Nm (2,337 lb-in)
Min. Starting Torque Continuous / Intermittent: 152 Nm (1,345 lb-in) / 205 Nm (1,819 lb-in)
Max. Power: 23.4 kW (31.4 HP)
Max. Flow Continuous / Intermittent: 45 L/min / 57 L/min
Mounting Flange: SAE A 2-bolt diamond flange
Output Shaft: 25.4 mm cylindrical
Ports: 7/8″-14 SAE
Max. Dynamic Side Load at Key: 6,672 N (1,500 lb)
Shaft Seal: High-pressure shaft seal (case-drain-free design)
Rotation: Bidirectional reversible
Weight: Approx. 7.4 kg
TE0165CW690AAAA (Displacement Code: 0165, CW Mount, 690 Shaft, AAAA Standard Configuration):
Model: TE0165CW690AAAA
Brand: Parker Torqmotor™ TE Series
Geometric Displacement: 163 cm³/rev (10.0 in³/rev)
Max. Speed Intermittent: 348 rpm
Max. Pressure Differential Continuous / Intermittent: 140 bar (2,030 PSID) / 190 bar (2,750 PSID)
Max. Continuous Torque: 310 Nm (2,744 lb-in)
Max. Intermittent Torque: 436 Nm (3,846 lb-in)
Min. Starting Torque Continuous / Intermittent: 248 Nm (2,195 lb-in) / 338 Nm (2,992 lb-in)
Max. Power: 17.0 kW (22.8 HP)
Max. Flow Continuous / Intermittent: 45 L/min / 57 L/min
Mounting Flange: SAE A 2-bolt diamond flange
Output Shaft: 25.4 mm cylindrical
Ports: 7/8″-14 SAE
Max. Dynamic Side Load at Key: 6,672 N (1,500 lb)
Shaft Seal: High-pressure shaft seal (case-drain-free design)
Rotation: Bidirectional reversible
Weight: Approx. 8.8 kg
TE0195CN410AAAB (Displacement Code: 0195, CN Mount, 410 Shaft, AAAB Standard Configuration):
Model: TE0195CN410AAAB
Brand: Parker Torqmotor™ TE Series
Geometric Displacement: 195 cm³/rev (11.9 in³/rev)
Max. Speed Intermittent: 292 rpm
Max. Pressure Differential Continuous / Intermittent: 140 bar (2,030 PSID) / 190 bar (2,750 PSID)
Max. Continuous Torque: 390 Nm (3,452 lb-in)
Max. Intermittent Torque: 528 Nm (4,673 lb-in)
Min. Starting Torque Continuous / Intermittent: 312 Nm (2,762 lb-in) / 411 Nm (3,638 lb-in)
Max. Power: 23.4 kW (31.4 HP)
Max. Flow Continuous / Intermittent: 45 L/min / 57 L/min
Mounting Flange: SAE A 2-bolt diamond flange
Output Shaft: 25.4 mm splined (6-tooth)
Ports: 7/8″-14 SAE
Max. Dynamic Side Load at Key: 6,672 N (1,500 lb)
Shaft Seal: High-pressure shaft seal (case-drain-free design)
Rotation: Bidirectional reversible
Weight: Approx. 7.1 kg
TE Series Full Displacement Range (by Model):
TE0036: 36 cm³/rev (2.2 in³/rev), 1,141 rpm intermittent speed
TE0045: 41 cm³/rev (2.5 in³/rev), 1,024 rpm intermittent speed
TE0050: 49 cm³/rev (3.0 in³/rev), 1,020 rpm intermittent speed
TE0065: 65 cm³/rev (4.0 in³/rev), 877 rpm intermittent speed
TE0080: 82 cm³/rev (5.0 in³/rev), 695 rpm intermittent speed
TE0100: 98 cm³/rev (6.0 in³/rev), 582 rpm intermittent speed
TE0130: 130 cm³/rev (8.0 in³/rev), 438 rpm intermittent speed
TE0165: 163 cm³/rev (10.0 in³/rev), 348 rpm intermittent speed
TE0195: 195 cm³/rev (11.9 in³/rev), 292 rpm intermittent speed
TE0230: 228 cm³/rev (13.9 in³/rev), 255 rpm intermittent speed
TE0260: 260 cm³/rev (15.9 in³/rev), 221 rpm intermittent speed
TE0295: 293 cm³/rev (17.9 in³/rev), 197 rpm intermittent speed
TE0330: 328 cm³/rev (20.0 in³/rev), 176 rpm intermittent speed
TE0365: 370 cm³/rev (22.6 in³/rev), 156 rpm intermittent speed
TE0390: 392 cm³/rev (24.0 in³/rev), 147 rpm intermittent speed
Key Technical Advantages
1. Only Roller-Bearing Configuration in Its Class — Superior Side Load Capacity
The TE Series is the only motor in its class with roller bearings, carrying up to 6,672 N (1,500 lb) maximum dynamic side load at the key. From an engineering standpoint, the line contact of roller bearings versus the point contact of ball bearings provides a larger contact area and higher load capacity when subjected to radial loads. This advantage allows the TE Series to directly drive sprockets or gears without additional bearing support structures, significantly reducing total drivetrain cost in chain and sprocket coupling applications.
2. High-Pressure Shaft Seal with Innovative Case-Drain-Free Design
The TE Series features a standard high-pressure shaft seal rated for intermittent pressures up to 190 bar, while its innovative design eliminates the need for an external case drain line. From a system integration perspective, the case-drain-free design reduces plumbing complexity and minimizes potential leak points. For replacement applications, this means no additional drain ports are required on the host machine, directly reducing installation time and maintenance costs. The high-pressure shaft seal operates under high-flow cooling fluid wash, effectively extending seal life.
3. Continuous Oil Flow Spline Lubrication
The TE Series incorporates internal continuous oil flow channels that constantly flush and lubricate the internal spline pairs during operation. From an engineering standpoint, this mechanism keeps the spline pair operating at low temperatures, preventing material degradation and clearance growth caused by localized overheating. The continuous cooling and lubrication of the spline pair is a key factor behind the TE Series’ long-life reliable operation, particularly suited to applications involving frequent starts/stops and high-frequency alternating loads.
4. Patented Commutation System with Roller Vane Rotor Design
The TE Series employs a zero-leak commutation valve plate system in which the commutation process involves no sliding friction, significantly reducing wear rates. Combined with a roller vane rotor design, internal friction and leakage are minimized, maintaining stable volumetric efficiency throughout the service life. The cast iron housing with precision-machined critical mating surfaces maintains stable clearances across a wide temperature range, ensuring efficient output even after extended operation.
5. Modular Platform with Broad Interchange Compatibility
The TE Series is built on a modular design platform spanning displacements from 36 to 392 cm³/rev, offering multiple flange options including SAE A 2-bolt diamond flange, SAE A 2-bolt magneto flange, 4-bolt mount, and wheel mount, along with cylindrical, splined (SAE 6B), and tapered shaft options. The TE Series enables drop-in interchange with Eaton Char-Lynn S Series, M+S MR Series, and other mainstream brand motors, delivering true drop-in interchangeability.
Application Areas
Lawn & Turf Equipment: Zero-turn mower wheel drives, golf course maintenance equipment, rotary cutters
Construction Equipment: Mini skid steer attachment drives, trenchers, post hole augers, aerial work platforms
Agricultural Equipment: Combine header drives, auger drives, portable irrigation systems, specialty harvesters (potato, tomato, nut, leafy vegetable, sugar, cotton, coffee, grape)
Material Handling: Conveyor drives, winch drives, hydraulic winches
Municipal Equipment: Snow removal equipment, sweepers, salt and sand spreaders
Oil & Gas Industry: Oil and gas blender trucks, boom rotate drives
Industrial Automation: Factory automation drives, hydraulic powerpack integration
Expert Maintenance Tips
Installation Notes:
The TE0100CW261LAAC uses an SAE A 2-bolt diamond flange with a 25.4 mm cylindrical shaft. Verify the host machine’s flange pilot and bolt pattern match before installation, and ensure the pilot face is clean and free of debris.
The TE0165CW690AAAA uses an SAE A 2-bolt diamond flange with a 25.4 mm cylindrical shaft. Apply a light coating of grease to the shaft and keyway before assembly to prevent corrosion and ensure smooth engagement.
The TE0195CN410AAAB uses an SAE A 2-bolt diamond flange with a 25.4 mm splined shaft (6-tooth). Apply a light coating of grease to the spline surface before assembly to prevent corrosion and ensure smooth engagement with the coupling or hub.
All models use 7/8″-14 SAE ports. Use appropriate sealing washers during installation and avoid over-torquing to prevent thread damage.
The TE Series features a standard high-pressure shaft seal with case-drain-free design. However, ensure that return back-pressure does not exceed shaft seal limits (maximum intermittent pressure 190 bar).
Operation & Maintenance:
Replace the hydraulic oil filter after the first 50 hours of operation and verify fluid cleanliness to ISO 4406 class 20/18/15 or better.
Recommended oil viscosity range is 20–75 mm²/s; maintain normal operating oil temperature between 20°C and 60°C.
After installation, run the new motor at 30% of rated pressure or less for at least 1 hour for run-in before gradually loading to rated conditions.
Periodically check flange bolt torque. Re-torque every 500 hours to prevent loosening caused by vibration.
After extended storage, run the motor at low speed and light load for 10–15 minutes to re-establish the internal oil film before gradually applying full load.
