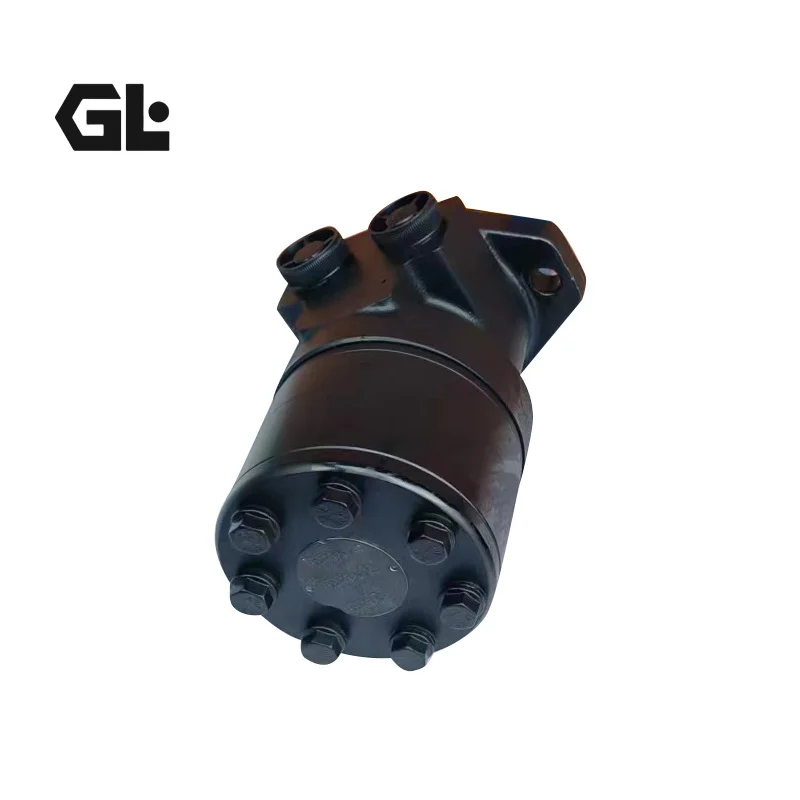

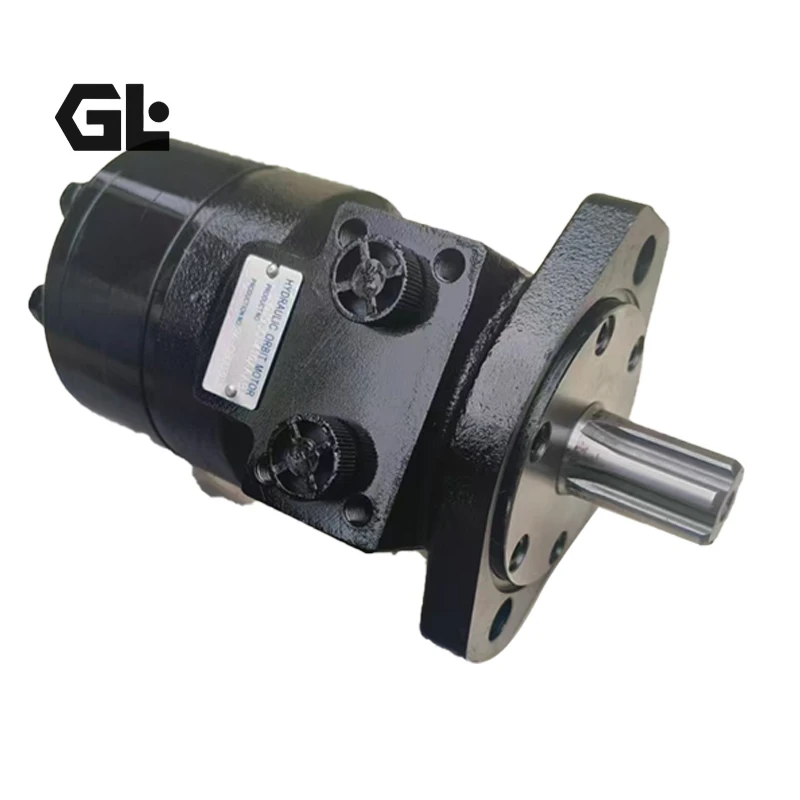

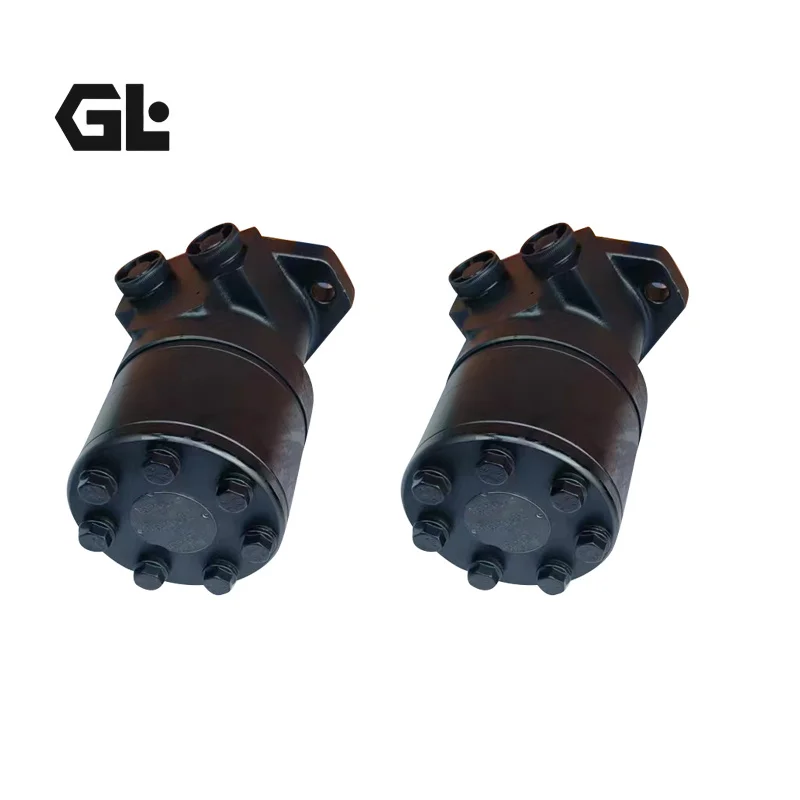

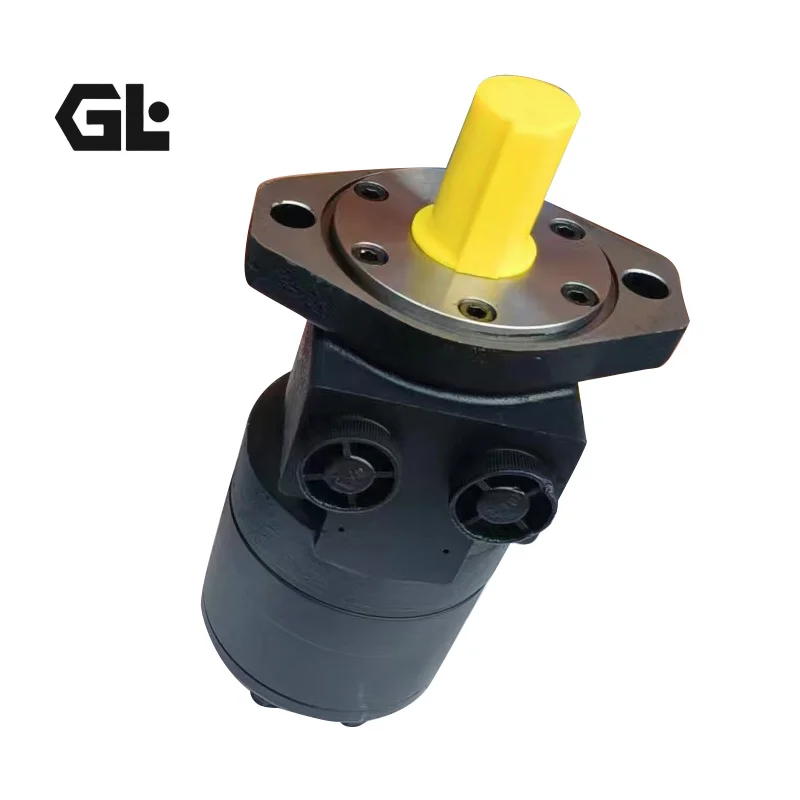

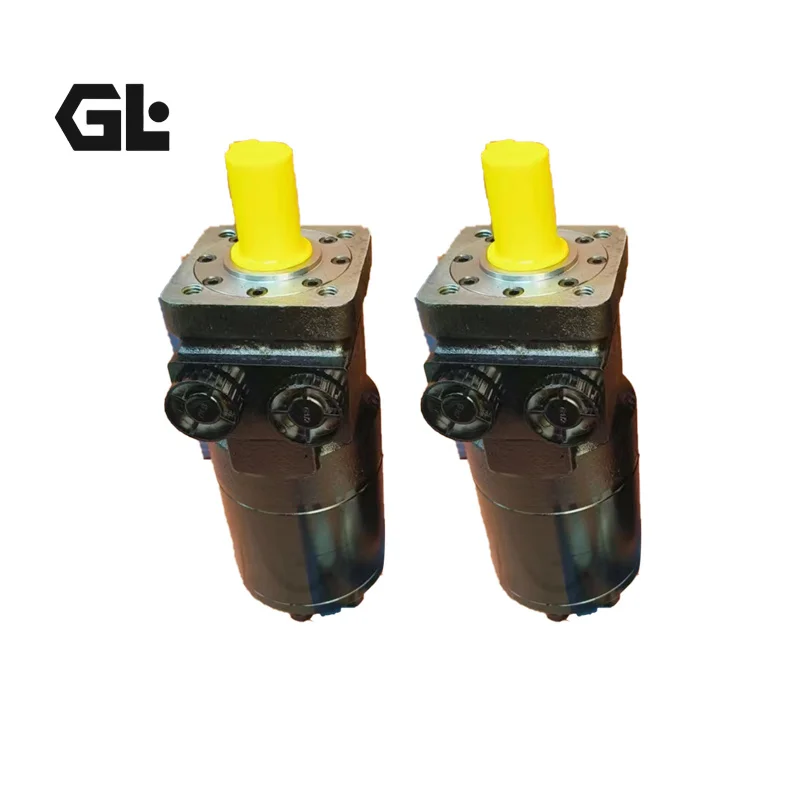

TE260CW690AAAA Parker TE Series LSHT Orbit Motor

Product Overview

The TE260CW690AAAA, TE295CW690AAAA and TE390CW690AAAA belong to the Parker Torqmotor™ TE Series medium-duty Low Speed High Torque (LSHT) orbital hydraulic motors. Featuring a precision gerotor design, they deliver high torque, smooth low-speed operation and superior side-load capacity. Continuous oil flow across internal splines, a high-pressure shaft seal and robust roller bearings ensure long service life and consistent volumetric efficiency. Fully interchangeable with original Parker TE Series configurations, these motors are engineered for reliable drop-in replacement in agricultural, construction and material-handling systems. Every unit is validated under simulated operating conditions for dependable field performance.

Technical Specifications

• Models: TE260CW690AAAA / TE295CW690AAAA / TE390CW690AAAA (Parker TE Series)
• TE0260 Geometric Displacement: 260 cm³/rev (15.9 in³/rev)
• TE0295 Geometric Displacement: 293 cm³/rev (17.9 in³/rev)
• TE0390 Geometric Displacement: 392 cm³/rev (24.0 in³/rev)
• TE0260 Continuous Differential Pressure: 110 bar
• TE0260 Intermittent Differential Pressure: 155 bar
• TE0260 Continuous Maximum Torque: 400 Nm
• TE0260 Intermittent Maximum Torque: 550 Nm
• TE0295 Continuous Differential Pressure: 100 bar
• TE0295 Intermittent Differential Pressure: 145 bar
• TE0295 Continuous Maximum Torque: 428 Nm
• TE0390 Continuous Differential Pressure: 85 bar
• TE0390 Intermittent Differential Pressure: 120 bar
• TE0390 Continuous Maximum Torque: 445 Nm
• Maximum Speed Range: approx. 191–287 rpm (displacement-dependent)
• Maximum Flow: 57 L/min continuous / 75 L/min intermittent
• Control Type: Open-circuit orbital motor (no integral control valves)
• Side Load Capacity: up to approx. 6650 N at key
• Approximate Weight: 8–10 kg (configuration-dependent)

Key Technical Advantages

1. Roller bearings provide exceptional side-load capacity, ideal for direct chain or sprocket drives without additional supports.
2. Continuous oil flow across internal splines minimizes wear and maintains high volumetric efficiency over extended service life.
3. Standard high-pressure shaft seal eliminates the need for case drains, simplifying plumbing and improving reliability.
4. Precision-machined gerotor set delivers quiet, smooth low-speed operation and high starting torque for frequent start-stop applications.
5. Durable cast-iron housing combined with quality bearings offers strong pressure and shock resistance for medium-duty continuous or intermittent duty.

Application Areas

Agricultural machinery (spreaders, chain conveyors), vehicle propulsion systems, winches and hoists, augers, scissor lifts, snow removal and salt/sand spreaders, material handling equipment, and light construction machinery for drive or rotation functions.

Expert Maintenance Tips

Ensure precise flange alignment during installation to avoid additional radial or axial loads. Use anti-wear hydraulic oil with operating viscosity of 20–43 cSt and keep oil temperature below 85°C. Bleed the system thoroughly and run at light load for 5–10 minutes before full operation. Maintain fluid cleanliness (10–25 μm filtration recommended) and periodically inspect the shaft seal. Avoid prolonged operation above intermittent pressure ratings to protect bearings and splines. In case of unusual noise or torque loss, first check system contamination and fluid condition.
