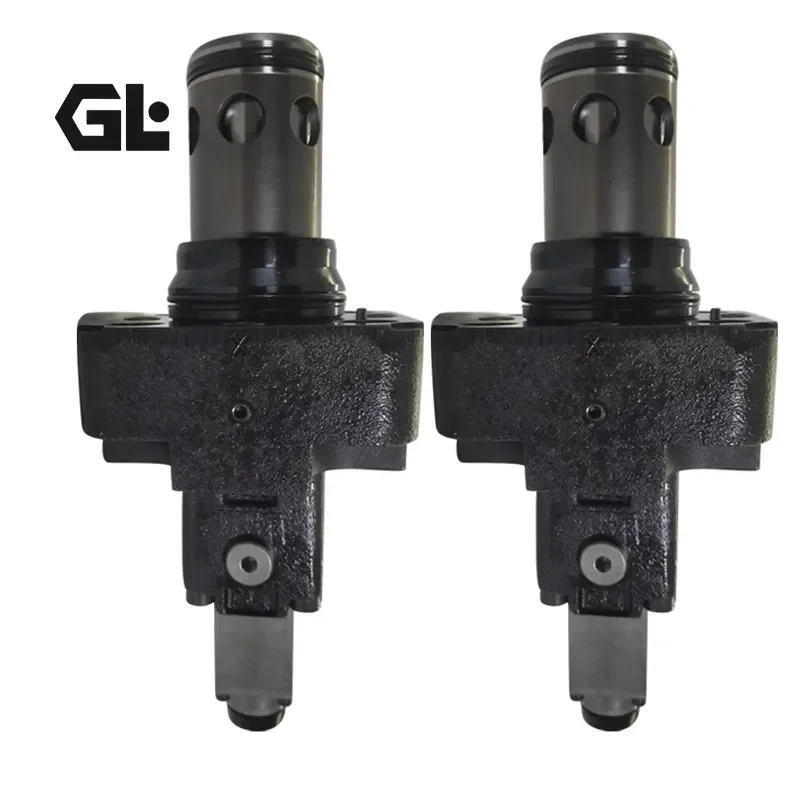

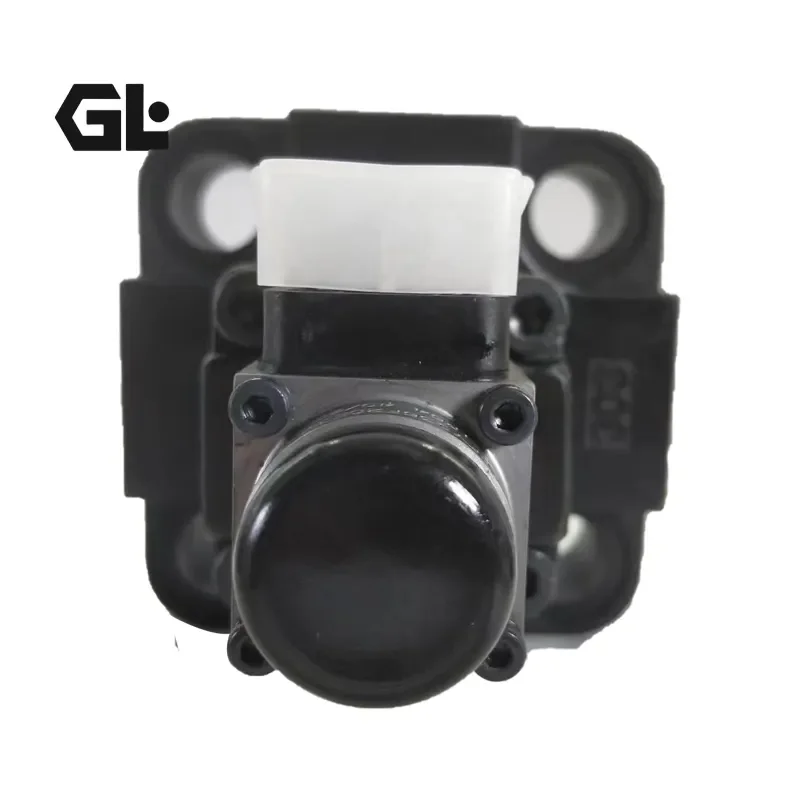

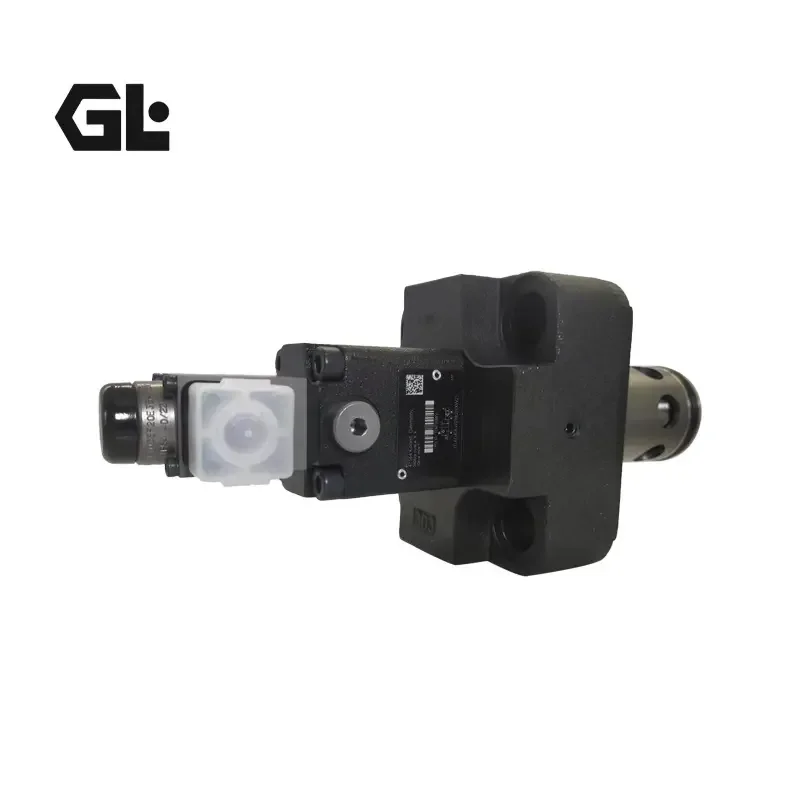

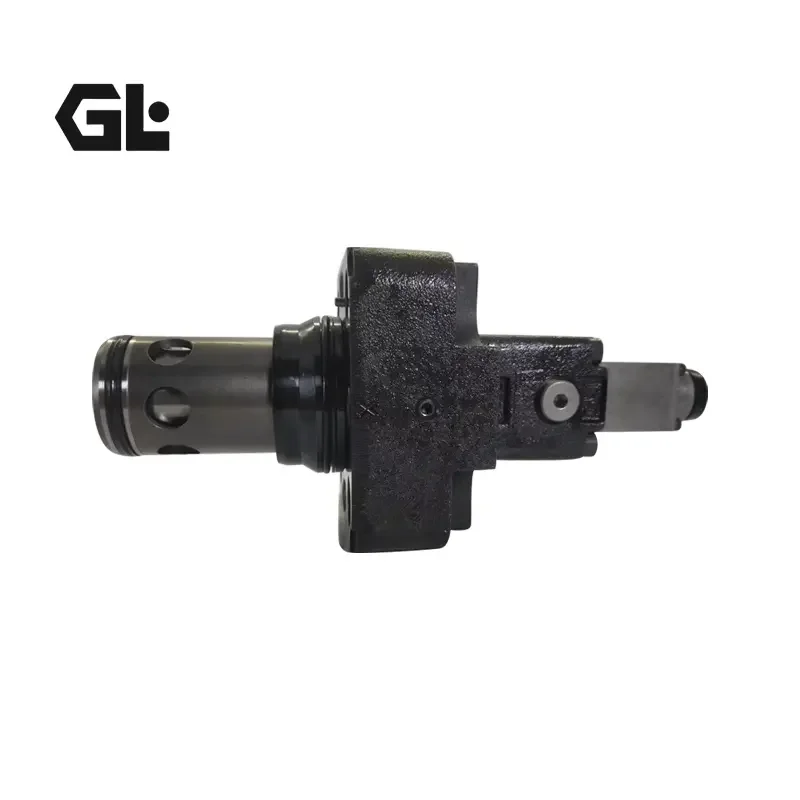

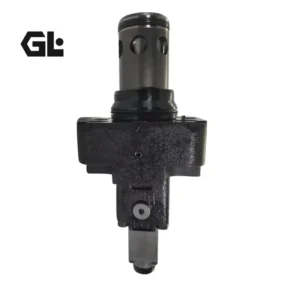

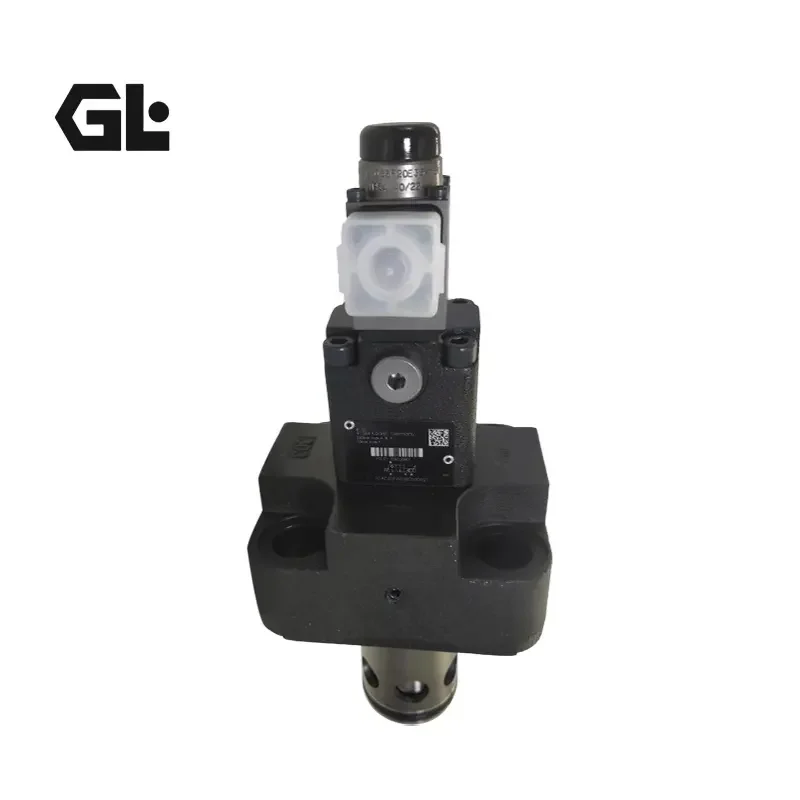

Parker TEA Series Proportional Valve | TEA080 TEA100 Pilot Operated Reversing Valve Replacement

Genlu Hydraulic proudly introduces our Parker TEA Series (covering NG016 to NG100 nominal sizes) high-performance proportional pilot-operated reversing cartridge valves. This series is engineered as a seamless, premium replacement for the classic Parker TEA, TDA, TDL, and TEH series slip-in cartridge and proportional valves. Specifically designed for precise directional and flow control within heavy-duty, high-flow hydraulic systems, Genlu guarantees 100% Drop-in Interchangeability in cavity dimensions, pilot port configurations, spool control logistics, and electrical response profiles compared to original Parker units. Every TEA valve assembly is subject to rigorous 100% simulation testing under full pressure scales to assure superior linearity, minimum hysteresis, and heavy-duty stability.

Technical Specifications

• Product Series: Parker TEA / TDA Series Proportional Pilot Operated Cartridge Valve

• Key Configuration Models: TEA100EW09B2NLWJ21, TEA080EW09B2NLWJ21

• Nominal Sizes (NG): NG16, NG25, NG32, NG40, NG50, NG63, NG80, NG100

• Max Operating Pressure: Up to 35 MPa (350 bar) for both pilot and main stages

• Max Controlled Flow: Size dependent; up to 8,000 L/min for the NG100 configuration

• Control Input: Proportional solenoid driven, compatible with external or integrated digital amplifiers

• Spool Design: EW throttling profile main spool (LVDT position feedback available)

• Sealing Elements: Premium Viton (FKM) seals as standard

Key Technical Advantages:

• Micron-Level Spool/Sleeve Finishing: Main spools and sleeves are machined from specialized high-strength alloy steel, hard-nitrided and precision-ground to deliver exceptional resistance against high-flow erosion while ensuring long-term low internal leakage.

• Precision Proportional Pilot Dynamics: Utilizing a high-response proportional solenoid as the pilot stage, the valve yields millisecond-level linear adjustment of fluid pathways, providing shock-free, high-accuracy acceleration and deceleration curve control.

• Optimized EW Fluid Flow Geometry: The EW throttling notch design on the main spool dramatically stabilizes fluid dynamics across the metering edges, effectively dampening flow forces and producing exceptionally smooth shifting performance.

• High-Pressure, Massive Flow Capability: The two-way slip-in cartridge manifold architecture significantly minimizes overall manifold volume while managing massive flow capacities at up to 350 bar, perfectly serving demanding heavy-industrial cycle requirements.

Application Areas:

• Heavy Presses & Forging Machinery: High-speed closing and directional control circuits for large four-column hydraulic presses and scrap metal shear balers.

• Injection Molding & Die-Casting Equipment: Core proportional control for plastic extruders and large-tonnage die-casting main manifolds.

• Iron & Steel Metallurgy: Hydraulic roll gap adjustment profiles and proportional controls for blast furnace valve stands.

Expert Maintenance Tips:

• Enforce Strict Fluid Hygiene: Proportional valves are highly vulnerable to particulate abrasion. The system must run a premium filtration system rated at ≤10µm, maintaining fluid cleanliness at NAS class 7 (ISO 16/13) or cleaner.

• Execute Pilot Air Purging: Upon first installation or system oil replacement, run the power pack at low pressure and alternate backing out the bleed screws on the valve cover to fully evacuate trapped air from the pilot chambers and LVDT cavity, preventing oscillation and signal distortion.

• Solenoid-Amplifier Calibration: Before powering the system, verify that the proportional solenoid ratings perfectly match the output parameters of your digital amplifier card (e.g., Parker PWDXX series or universal cards) to avoid coil burnouts from overcurrent spikes.
