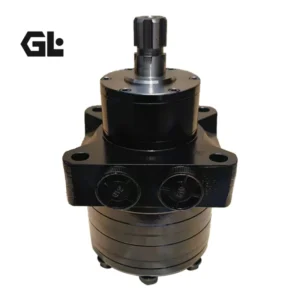

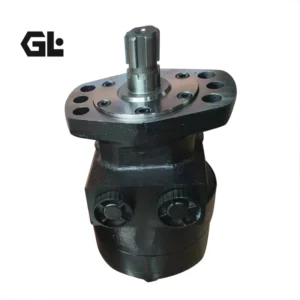

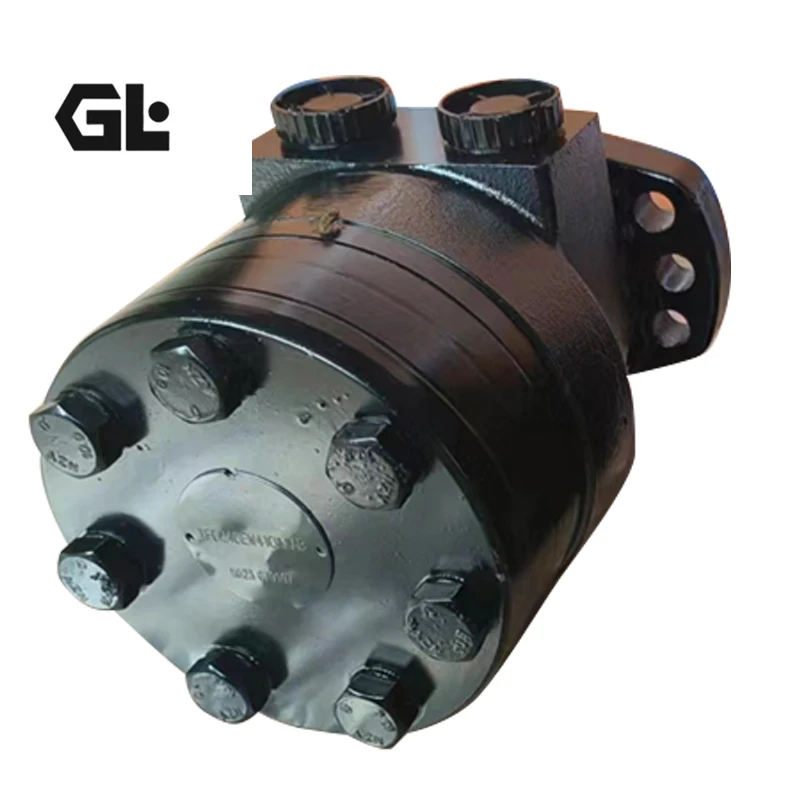

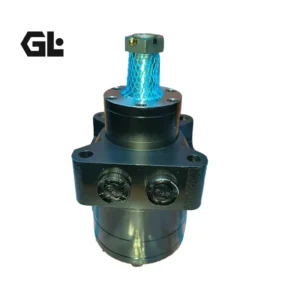

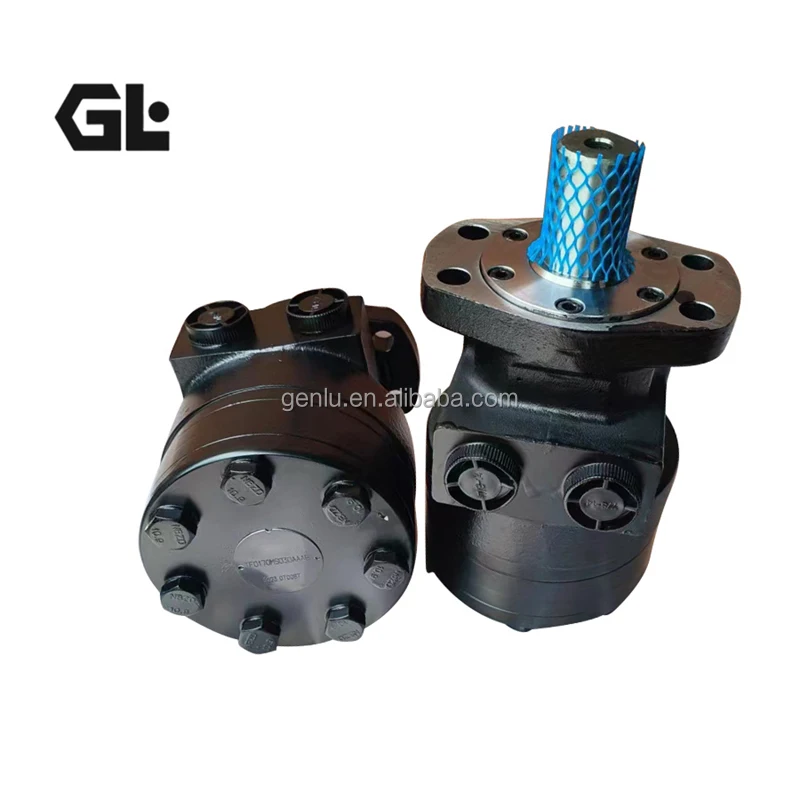

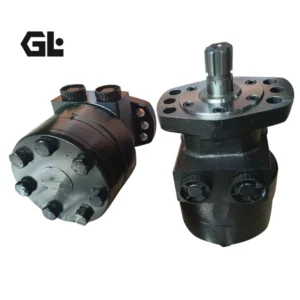

TF0360 Parker Torqmotor High Torque Orbital Motor 364cc

Product Overview

Parker Torqmotor™ TF Series high-torque orbital hydraulic motors (including models TF0360HW460AAAB, TF0360EW260LAAY, TF0240NS060AAAA and related configurations) are low-speed high-torque (LSHT) fixed-displacement motors. Built on a precision Gerotor/Geroler design, they deliver excellent starting torque and smooth low-speed operation for medium-duty applications. These motors offer precise drop-in interchangeability with original Parker units. Every motor undergoes 100% simulated operating-condition testing to guarantee high volumetric efficiency, consistent performance, and extended service life—ideal for OEM integration and replacement in agricultural, construction, and material-handling systems.

Technical Specifications

• Models: TF0240NS060AAAA / TF0360HW460AAAB / TF0360EW260LAAY (and other TF Series configurations)
• Displacement: TF0240 = 238 cm³/rev (14.5 in³/rev); TF0360 = 364 cm³/rev (22.2 in³/rev) (series range approx. 81–477 cm³/rev)
• Continuous (rated) differential pressure: approx. 113–207 bar depending on size (typically ~138 bar / 2000 psid for mid-size units)
• Peak (intermittent) differential pressure: up to approx. 207–276 bar / 3000–4000 psid
• Maximum speed: series up to approx. 749 rpm (higher for smaller displacements; TF0360 continuous approx. 258 rpm)
• Maximum flow: continuous approx. 76 L/min, intermittent approx. 95 L/min
• Control type: Fixed displacement (quantitative) orbital design
• Maximum torque: continuous up to approx. 680 Nm range, higher intermittent
• Weight: approx. 14–17.5 kg (varies by size and configuration)
• Additional: High-pressure shaft seal capable of full system pressure; multiple mounting, shaft, and port options available

(Data extracted from official Parker Torqmotor TF Series technical literature; actual performance depends on exact configuration and operating conditions.)

Key Technical Advantages

1. Precision-machined orbital elements with continuous internal spline oil-flow cooling deliver high volumetric efficiency, superior starting torque, and smooth crawl-free low-speed operation.
2. High side-load capacity and robust bearing system support wheel-drive and dynamic loading in a compact, durable package.
3. High-performance shaft seal design simplifies plumbing, reduces leak points, and extends service life.
4. 100% simulated-condition testing combined with true drop-in interchangeability ensures consistent performance and minimized downtime.

Application Areas

• Drive wheels and propulsion systems on agricultural and turf equipment
• Material-handling vehicles, compact construction machinery, and trailers
• Medium-duty equipment requiring reliable low-speed high-torque hydraulic drive
• Other mobile hydraulic applications demanding compact installation and high reliability

Expert Maintenance Tips

Use clean hydraulic oil meeting DIN 51524 with filtration to at least ISO 4406 18/16/13. Do not exceed intermittent pressure or speed ratings (intermittent duty limited to 10% of each minute). Ensure proper alignment and full system bleeding during installation. Periodically inspect shaft seals and bearings. Protect ports and shaft ends during storage and transport to prevent contamination and impact damage.
