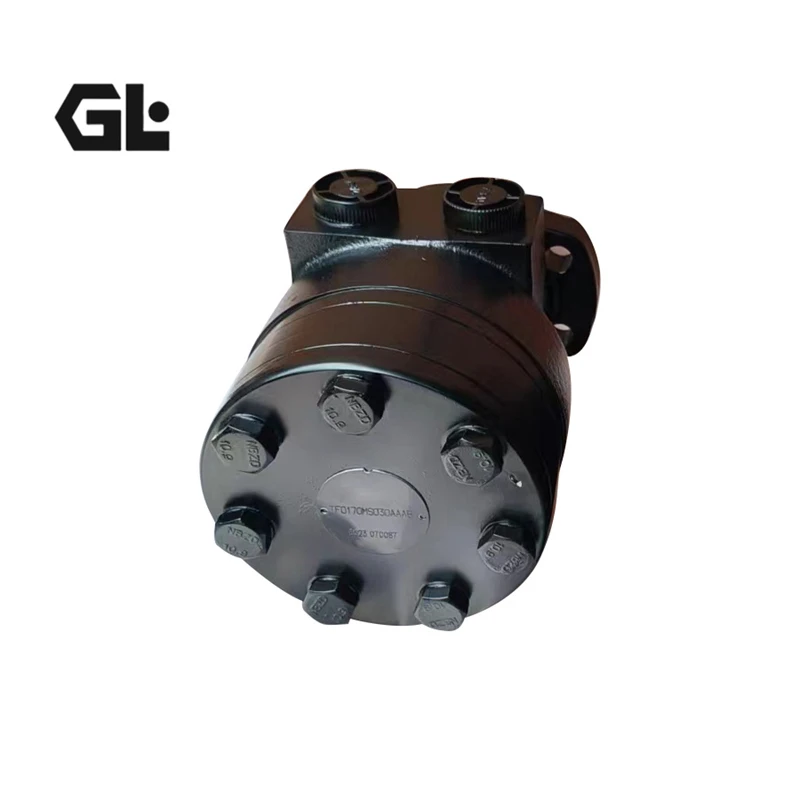

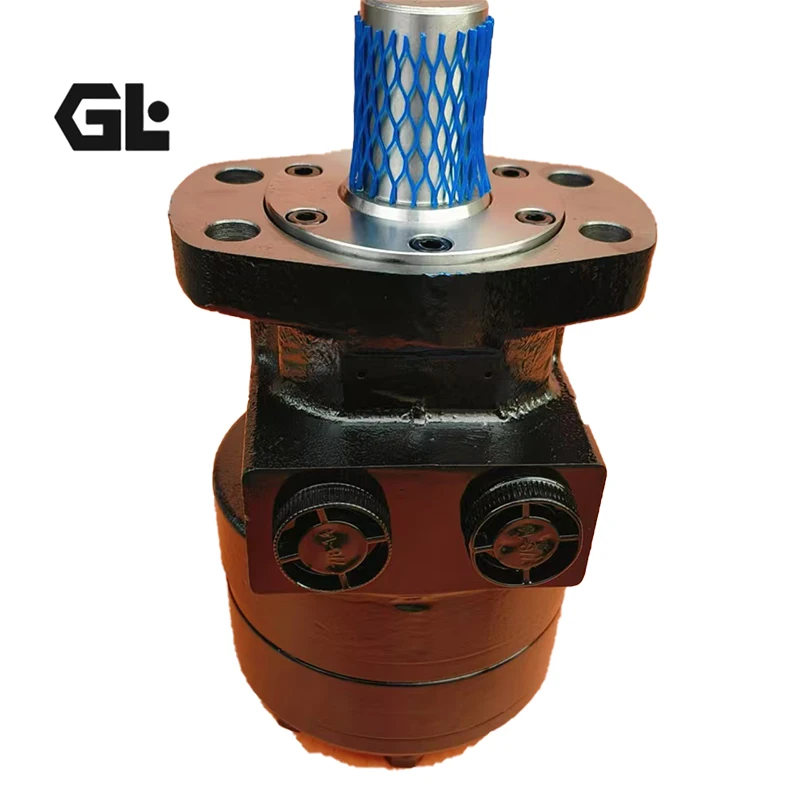

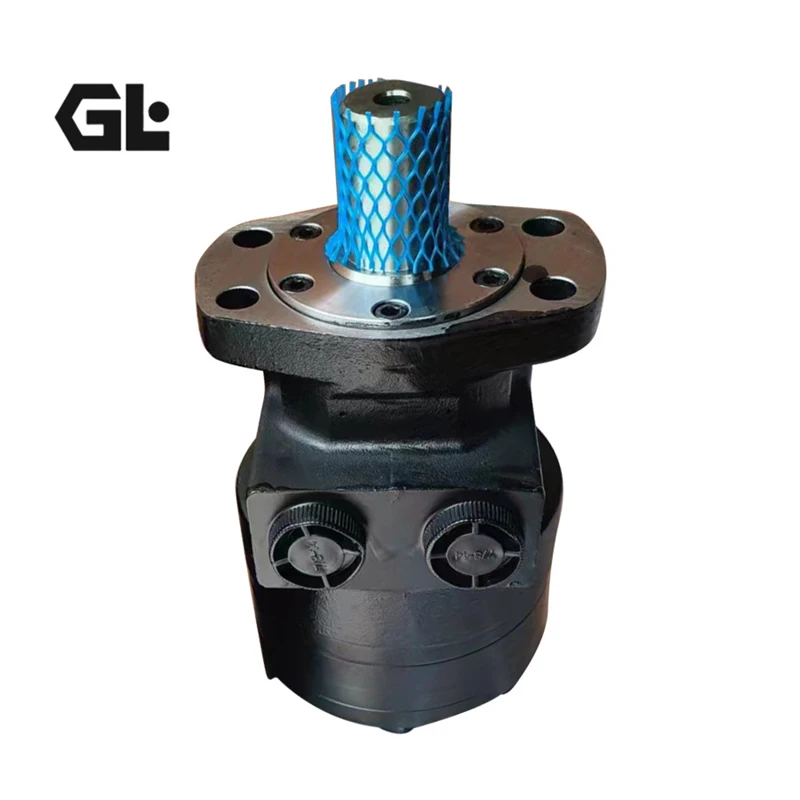

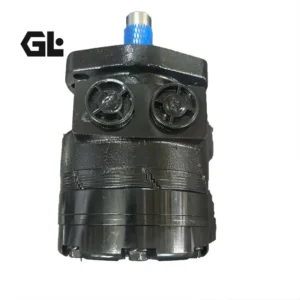

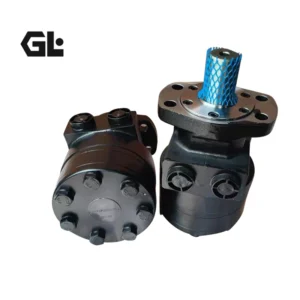

Parker TF Series Orbital Motor | TF0195 TF0240 TF0280 Low Speed High Torque Motor Replacement

Genlu Hydraulic proudly introduces our mobile fleet and heavy industrial-grade TF Series (comprehensively covering 195, 240, and 280 cc/rev baseline displacements) high-pressure Low-Speed High-Torque (LSHT) hydraulic orbital motors. This series is fully engineered as a seamless, high-value, drop-in replacement for the classic Parker / Torqmotor TF heavy-duty series, adapting flawlessly to replace intricate customized engineering configurations including TF0195EW260AAAB, TF0195US081AAHM, TF0240MB050AAA, and TF0280MS1V0AAAB (specifying exact mounting flanges, output shafts, fluid ports, and auxiliary integrated balance brake manifolds). Purpose-built to endure continuous fluid shocks and harsh environmental stresses, these motors utilize an advanced Roller Vane rotating matrix integrated within a robust dual tapered roller bearing main shaft suspension infrastructure. Genlu guarantees 100% Drop-in Interchangeability across standard SAE/Magneto mounting interfaces, output drive shafts (parallel keyed, splined, or tapered profiles), fluid port dimensions, and external casing drain threads compared to original Parker units. Every single TF assembly undergoes rigorous 100% automated full-load simulation torque testing on our digital benches to certify zero-slip tracking and pristine mechanical integrity under extreme load stresses.

Technical Specifications

• Product Series: Parker Torqmotor TF Series Heavy Duty Low-Speed High-Torque Orbital Motor

• Key Model Target Identifiers: TF0195EW260AAAB, TF0195US081AAHM, TF0240MB050AAA, TF0280MS1V0AAAB

• Geometric Displacement Profile Matrix:

  • TF0195 Frame Size: 195 cc/rev

  • TF0240 Frame Size: 240 cc/rev

  • TF0280 Frame Size: 280 cc/rev

• Nominal Continuous Operating Pressure: 14.0 MPa to 17.5 MPa (140 – 175 bar, dependent on specified displacement block)

• Peak Intermittent Proof Pressure: Up to 21.0 MPa (210 bar) absolute transient spike overpressure protection

• Maximum Developed Output Torque: 550 Nm to 840 Nm (attained consistently at peak frame displacement scales)

• Operational Speed Matrix: 5 rpm to 420 rpm (deeply optimized for high-torque stability at minimal velocity)

• Drive Shaft Options:

  • Standard 1-1/4″ Parallel Keyed / Involute Splined Shaft (denoted via specific configuration designations like AAAB or AAHM)

  • Heavy Tapered Shaft configuration (engineered for maximum overhung fatigue resistance)

• Housing Structural Material: High-density anti-fracture monoblock nodular ductile iron chassis

Key Technical Advantages:

• Premium Roller Vane Geometry via Low-Friction Engineering: Moving away from the high-wear sliding teeth of light-duty motors, the TF series incorporates a hardened, precision-ground rolling pin matrix at each inner stator profile. Converting high-pressure contact surfaces from sliding to rolling friction significantly reduces stick-slip vibration down to an ultra-low 5 rpm, keeping combined mechanical and volumetric efficiency steadily above 90% even under continuous 17.5 MPa pressures.

• Heavy Duty Tapered Roller Main Shaft Suspension Cradle: The front mounting enclosure incorporates a robust bearing infrastructure backed by two high-capacity tapered roller bearings. This setup allows the output drive shaft to be coupled directly to heavy-vehicle wheels, high-tension wire-rope drums, or industrial agitator hubs, absorbing up to 16,000 N of aggressive radial centripetal forces and high axial tensile loads without requiring outboard supportive pillow blocks.

• Highly Adaptable Multi-Dimensional Mounting Modulation: As indicated by customized code suffixes (e.g., EW260, MB050, MS1V0), the TF platform provides outstanding chassis configuration flexibility. Spanning standard SAE 4-bolt configurations (M/MS codes) to classic Magneto patterns (U/US codes), the side high-pressure A/B main ports feature high-integrity O-ring face-seal threading to prevent external weeping under severe, high-frequency frame vibrations.

• Full-Flow Self-Lubricating Axial Shaft-Seal Protection Block: The inner architecture houses a specialized fluid circulation route that continually channels oil across the moving gear sets, disc valve faces, and primary shaft bearings to dissipate friction heat. Coupled with a premium, high-pressure resilient lip shaft seal assembly, it ensures stable casing safety boundaries even in setups operating without an external case drain link.

Application Areas:

• High-Yield Modern Agricultural & Forestry Equipment: Direct reel speed drives for large grain combines, high-load grain tank unloading augers, and high-frequency cutting bar actuators for forestry harvesters.

• Municipal Road Infrastructure & Environmental Utility Fleets: High-torque rotary thrower drums for high-output snow blowers, primary broom rotation drives for automated street sweepers, and large packer-plate slide positioning systems for waste compactors.

• Industrial Material Handling & Marine Winches: Head-pulley drive motors for heavy-duty material belt conveyors, primary cable winches for truck-mounted cranes, and compact anchor windlass chain wheel actuators for marine vessels.

Expert Maintenance Tips:

• Guard Against Transient Vacuum Cavitation in High-Inertia Cycles: When driving heavy-inertia components like large conveyor drums, snow blowers, or crane winches, sudden directional control valve neutral shifts transform the motor into a high-speed pump driven by machine momentum. Without responsive anti-cavitation check valves or proper makeup boost pathways, a severe localized vacuum will develop in the intake chamber, pitting the cylinder block and Roller Vane profiles.

• Mandatory External Case Drain Connection under Backpressure (Critical Protocol): Although the main shaft seal is rated for robust internal pressures, operating multiple motors in a series loop or running a grid where the continuous system return backpressure spikes past $2.5\text{ MPa}$ demands independent external case drainage. You must connect a line from the specialized casing port straight back to the reservoir. Blocking this path will blow out the main shaft lip seal assembly in short order.

• Enforce Viscosity Threshold Checks & Prevent Thermal Breakdown: Low-speed high-torque operation relies heavily on robust boundary oil film strength across the running components. Keep system operating temperatures strictly under $70^\circ\text{C}$ using premium anti-wear fluid. If the oil overheats and the working viscosity drops beneath $15 \text{ mm}^2/\text{s}$, micro-metallic contact will occur across the internal valve faces and roller pins, causing power degradation and destructive scuffing wear.
