Product Overview

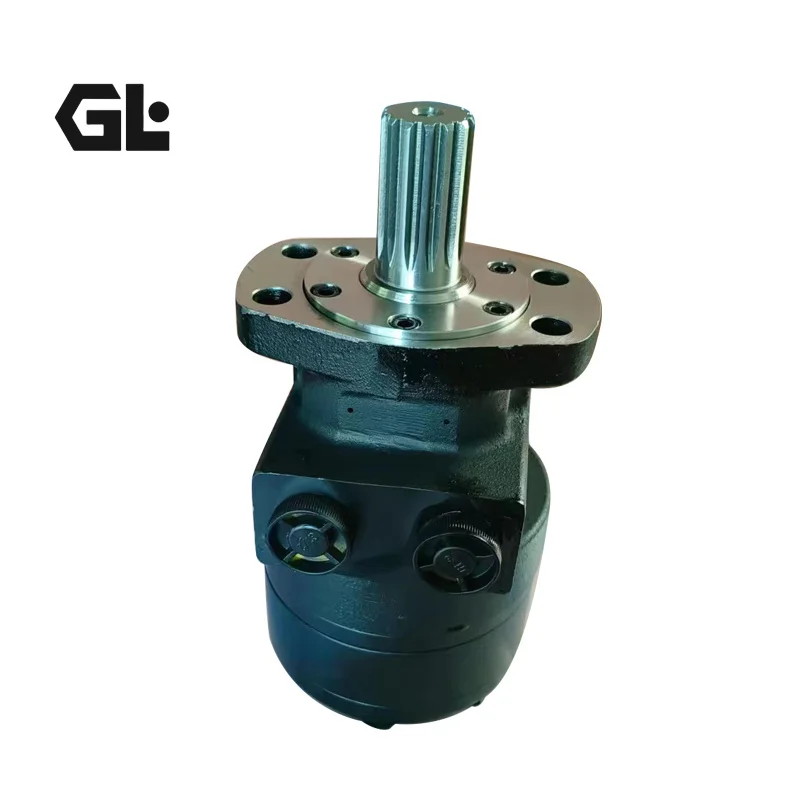

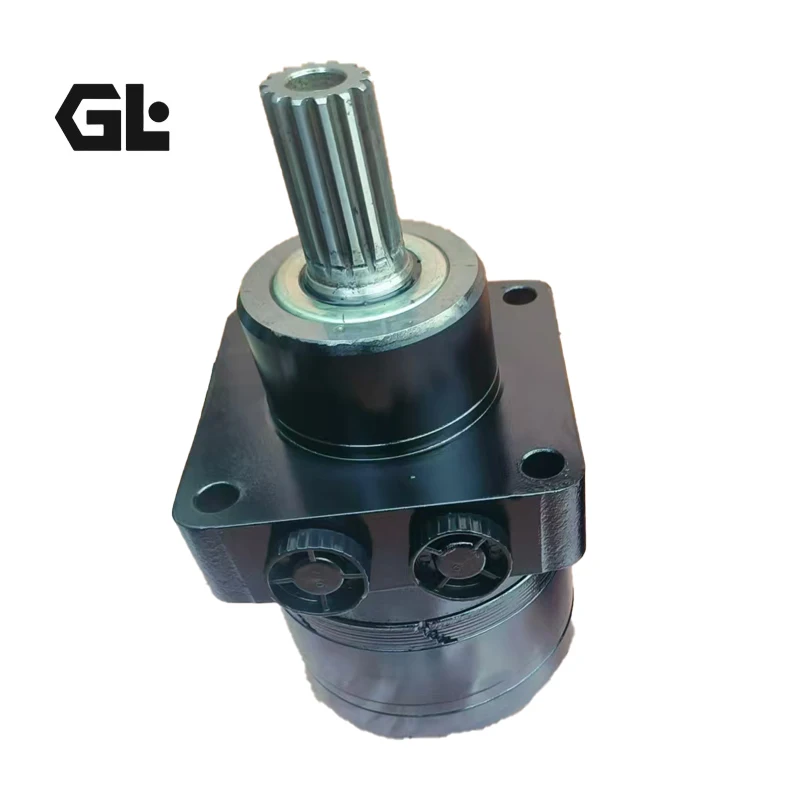

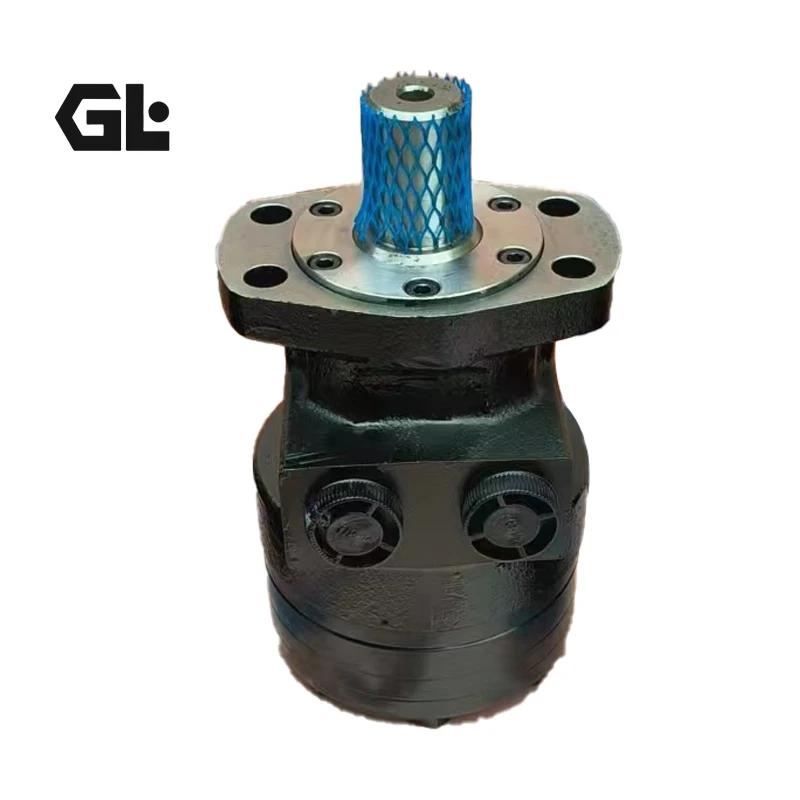

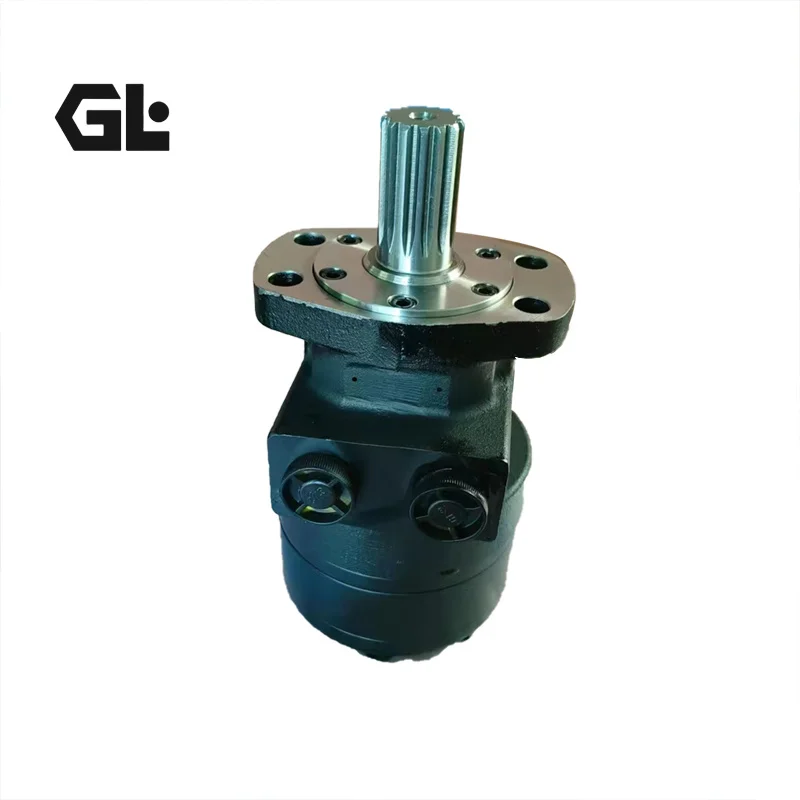

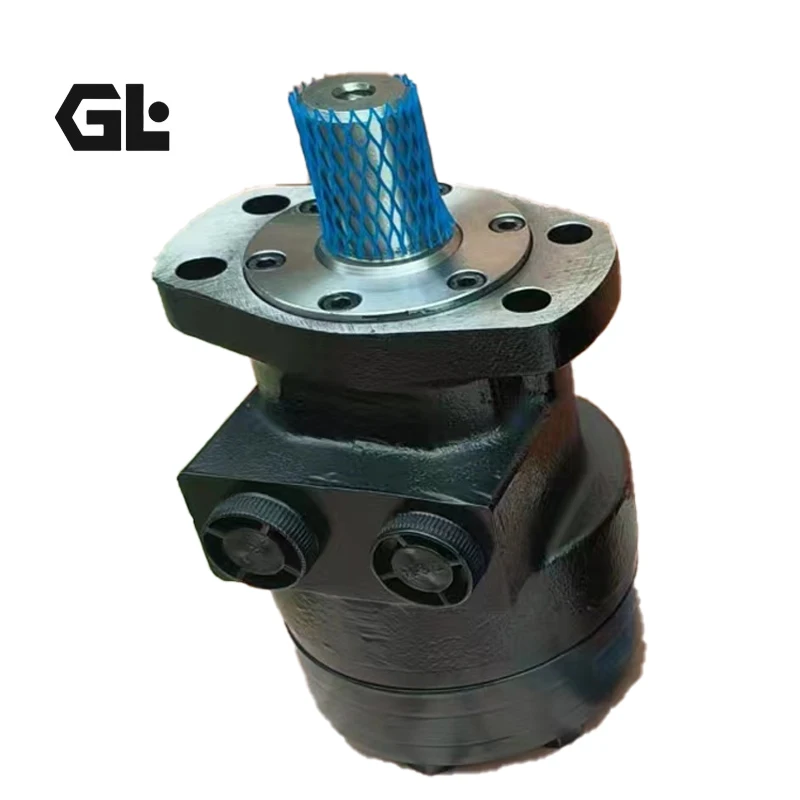

The TG0530MS030AAAB is a 530-displacement model in Parker’s Torqmotor™ TG Series of medium-duty, low-speed high-torque (LSHT) orbital hydraulic motors, with a geometric displacement of 528 cm³/rev (32.3 in³/rev). The TG Series represents the culmination of decades of Parker engineering in hydraulic motor design, purpose-built for high-load drive requirements in medium-duty industrial equipment.
The heart of the TG Series powertrain—the torque link—features Parker’s patented 60:40 spline geometry. This asymmetric tooth profile optimizes the torque transmission path and distributes contact stress more uniformly across the spline teeth, enabling the powertrain to transmit over 13,000 lb-in of torque while significantly extending spline and link service life. The motor uses roller vanes and a sealed commutator to maintain high volumetric efficiency across all speed ranges, with smooth extra-low-speed performance. The entire powertrain is continuously washed in cool, high-flow fluid to control operating temperatures at critical friction interfaces and ensure long service life.
Each TG0530MS030AAAB undergoes 100% simulated duty-cycle testing prior to shipment, validating volumetric efficiency, torque output, and low-speed stability under both dynamic instantaneous and static steady loads. Dimensional and functional interchangeability with the original Parker Torqmotor ensures true drop-in replacement—mounting flange, shaft configuration, and port geometry all match Parker OEM specifications. Designed and manufactured in Greeneville, TN USA.
Technical Specifications
Model: TG0530MS030AAAB
Series: Parker Torqmotor™ TG Series
Geometric Displacement: 528 cm³/rev (32.3 in³/rev)
Maximum Speed (Intermittent): 140 rev/min
Maximum Differential Pressure (Continuous): 207 bar (3000 PSID)
Maximum Differential Pressure (Intermittent): 276 bar (4000 PSID)
Maximum Supply Pressure: 300 bar (4350 PSIG)
Maximum Oil Flow (Continuous): 76 L/min (20 GPM)
Maximum Oil Flow (Intermittent): 95 L/min (25 GPM)
Maximum Torque (Continuous): 8673 lb-in (approx. 980 Nm)
Maximum Performance: 33 kW (45 HP)
Minimum Starting Torque (Continuous): 315 Nm (2791 lb-in)
Minimum Starting Torque (Intermittent): 418 Nm (3706 lb-in)
Mounting: 6-Bolt Magneto Flange
Shaft: 1-1/4 inch Keyed
Ports: 7/8-14 SAE
Maximum Side Load at Key: 16000 N (3597 lb)
Weight: Approx. 19.6 kg
Key Technical Advantages
Patented 60:40 spline torque link. The defining engineering innovation of the TG Series is the patented 60:40 spline geometry incorporated in the torque link. Conventional spline tooth profiles distribute contact stress unevenly, leading to localized fatigue and wear under high-torque transmission. The 60:40 asymmetric tooth form optimizes the torque transmission path and distributes contact stress more uniformly, raising the powertrain’s torque capacity to over 13,000 lb-in (approximately 1,469 Nm) while significantly extending spline and link service life.
Full-flow powertrain cooling and lubrication. The TG Series powertrain—including the torque link, splines, and rotor set—is continuously washed in cool, high-flow fluid. This design serves a dual engineering purpose: it controls operating temperatures at spline engagement surfaces and link bearings, preventing material degradation from overheating; and it continuously flushes wear debris and contaminants, maintaining clean transmission interfaces. Compared to periodically lubricated transmission designs, full-flow cooling significantly enhances TG Series reliability under sustained high-load operation.
Roller vane rotor set with sealed commutator. The rotor set uses roller vanes, where the rolling friction coefficient is substantially lower than sliding friction, reducing internal mechanical losses and heat generation. The sealed commutator maintains flow distribution accuracy independent of speed variation, sustaining stable volumetric efficiency even at extra-low speeds down to approximately 5 rpm—eliminating the need for an auxiliary gearbox to drive loads directly.
Superior side load capacity. The TG Series withstands up to 16000 N (3597 lb) dynamic side load at the key. This capability is enabled by reinforced bearing support structures and an optimized shaft system design, allowing the motor to maintain long service life under high side-load conditions such as chain drives, sprocket connections, and direct wheel hub drives. For applications subject to belt tension, chain impact, or radial loads, the TG0530MS030AAAB provides exceptional engineering margin.
Application Areas
Trenchers
Skid steer attachments
Zero-turn radius mowers
Winches and conveyor drives
Wood chippers and forestry equipment
Aerial work platform drives
Combine harvester header drives
Augers and post-hole diggers
Sprayers and salt/sand spreaders
Snow removal equipment
Oil and gas blender trucks
Expert Maintenance Tips
Verify option code compatibility before installation. The TG0530MS030AAAB carries option code AAAB, corresponding to standard seals and no paint. When replacing an original motor, confirm the original option code (e.g., AAAA for standard seals + black paint, AAAB for standard seals + no paint). While mounting interfaces are fully interchangeable, surface treatment differences may affect corrosion resistance in specific environments. Select the matching option code based on the actual operating environment.
Prime and bleed before first start. After initial installation or extended storage, air may be trapped within the motor casing. Fill the casing with clean hydraulic oil (viscosity of 200 SUS or higher recommended) through the highest port before startup, then jog the motor at low pressure (≤30 bar) several times to purge residual air. Apply full working pressure only after the motor runs smoothly. Inadequate bleeding may cause low-speed stick-slip or abnormal noise.
Maintain oil cleanliness and viscosity. Target an ISO cleanliness level of 18/16/13 or better, with return-line filtration rated at 10 μm or finer. Recommended oil viscosity is 200 SUS (approximately 43 cSt), with maximum oil temperature not exceeding 130°F (54°C). The TG Series roller vane rotor set and sealed commutator are sensitive to particulate contamination; inadequate cleanliness accelerates wear and reduces volumetric efficiency.
Inspect shaft seal and splines periodically. The TG Series features a standard high-pressure shaft seal with an innovative case-drain-free design. Inspect for weeping or dripping at the shaft seal every 2000 operating hours, and check the spline area for wear. If seal leakage or significantly increased spline clearance is detected, replace the seal kit or spline components promptly to prevent fault escalation.
