TG0170HW460AAAB TG0140 TG0170 TG0195 TG0240 Parker TG Torqmotor Orbital Motor

Product Overview

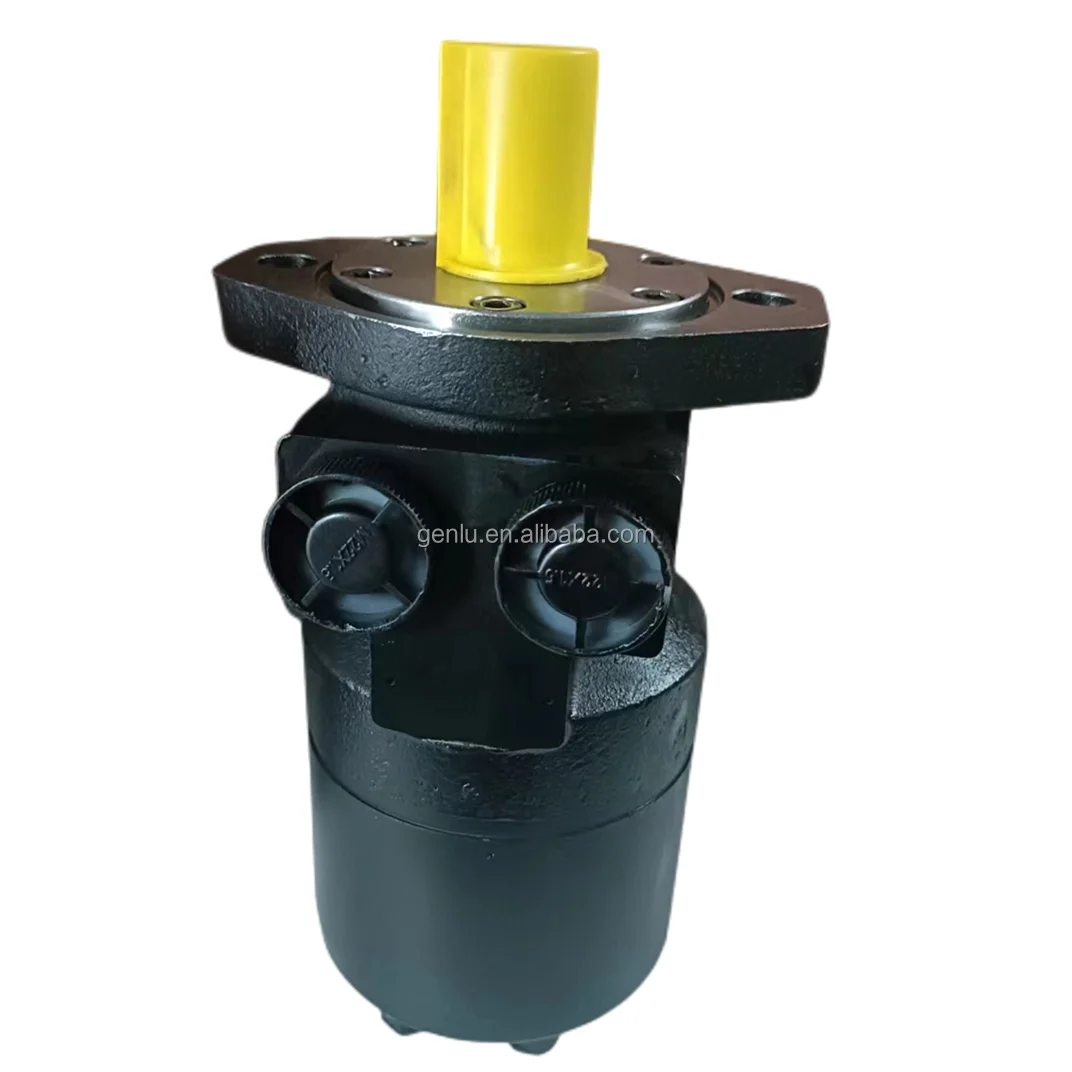

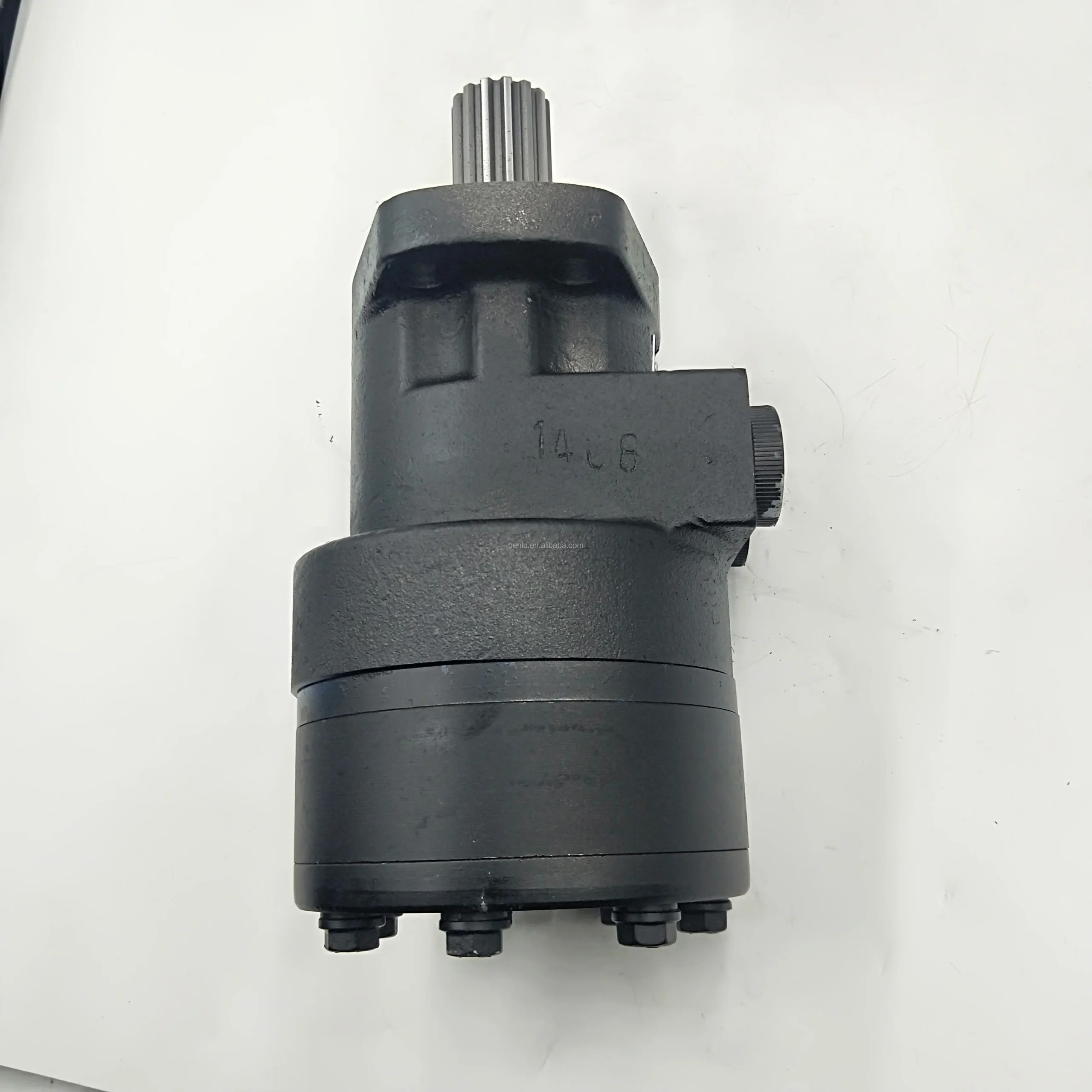

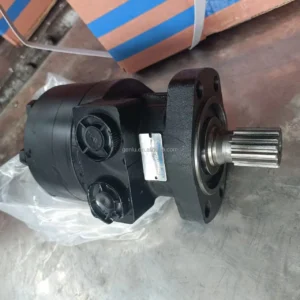

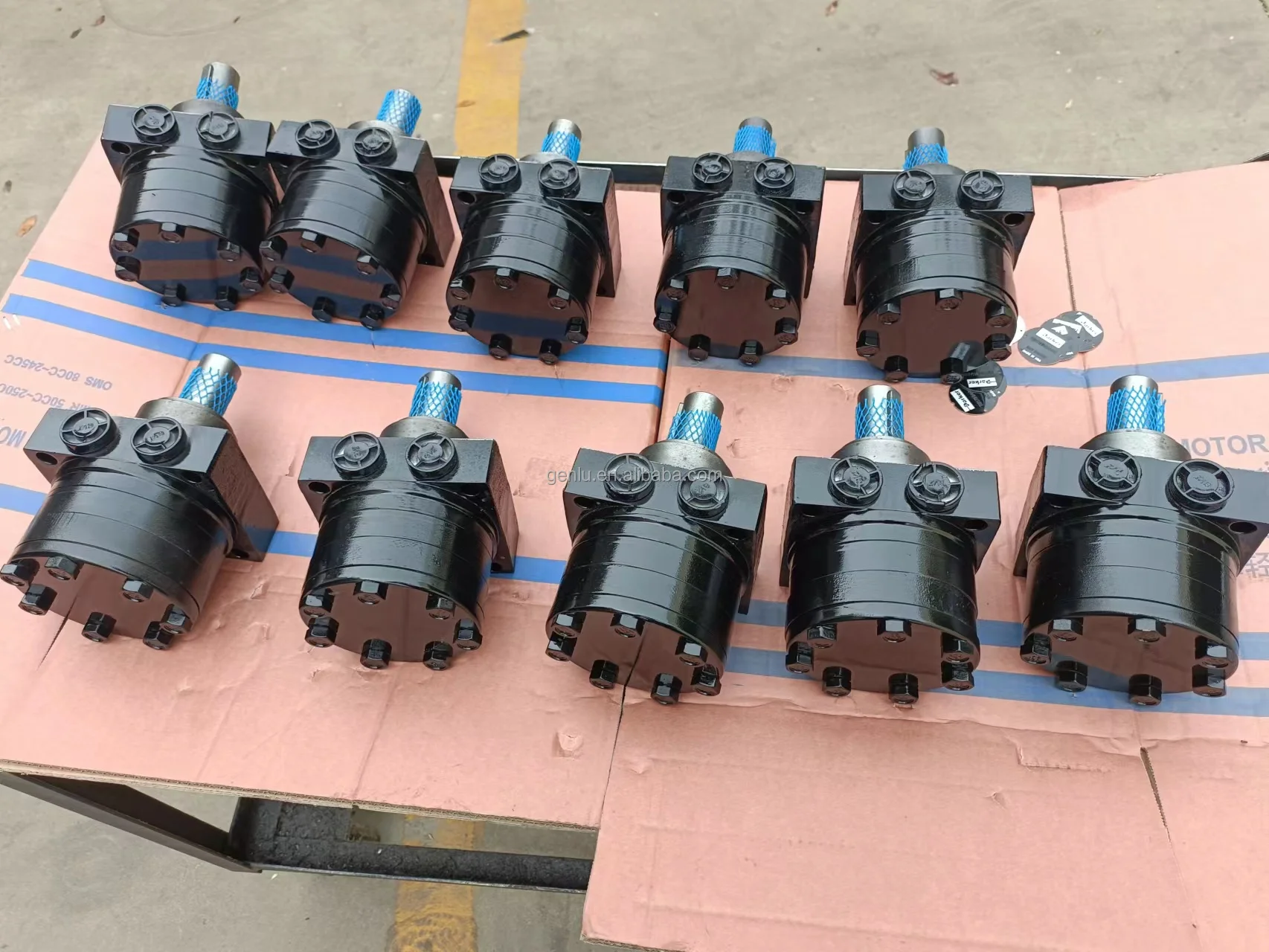

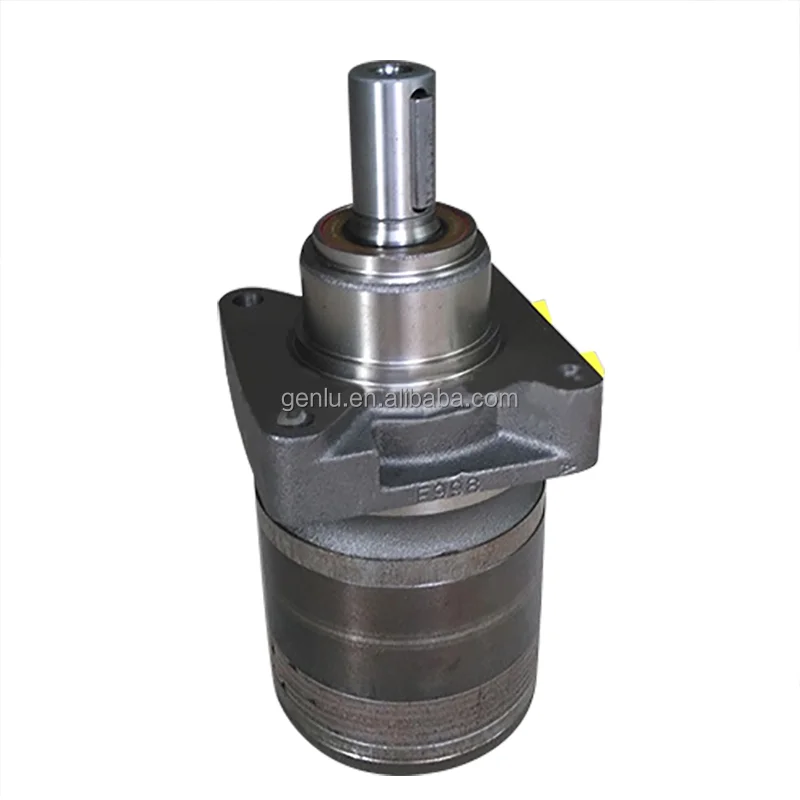

The TG0140, TG0170, TG0195, TG0240, TG0405, TG0475, TG0530 series and specific model TG0170HW460AAAB are Parker Torqmotor TG Series low-speed high-torque (LSHT) orbital hydraulic motors. Featuring roller-vane rotor sets, zero-leak commutation valves, and patented 60:40 spline geometry, they deliver high volumetric efficiency and superior side-load capacity. These motors are fully drop-in interchangeable with genuine Parker units and undergo 100% simulated operating condition testing, ensuring reliable performance under high pressure, high side-load, and continuous duty. Precision manufacturing and high-pressure shaft seal design make them ideal for demanding medium- to heavy-duty mobile and industrial applications.

Technical Specifications

• Model: TG0140
  • Displacement: 141 cm³/rev (8.6 in³/rev)
  • Continuous differential pressure: approx. 207 bar (3000 psi)
  • Intermittent/peak differential pressure: approx. 276 bar (4000 psi)
  • Maximum continuous speed: approx. 660 rpm (at max intermittent flow)
  • Maximum continuous torque: approx. 390–407 Nm
  • Control type: Fixed-displacement gerotor, standard or reverse timed
  • Approximate weight: 14–15 kg (depending on mount)
• Model: TG0170 / TG0170HW460AAAB
  • Displacement: 169 cm³/rev (10.3 in³/rev)
  • Continuous differential pressure: approx. 207 bar (3000 psi)
  • Intermittent/peak differential pressure: approx. 276 bar (4000 psi)
  • Maximum continuous speed: approx. 554 rpm
  • Maximum continuous torque: approx. 476–495 Nm
  • Control type: Fixed-displacement gerotor, standard rotation
  • Approximate weight: 14.5 kg
• Model: TG0195
  • Displacement: 195 cm³/rev (11.9 in³/rev)
  • Continuous differential pressure: approx. 207 bar (3000 psi)
  • Intermittent/peak differential pressure: approx. 276 bar (4000 psi)
  • Maximum continuous speed: approx. 477 rpm
  • Maximum continuous torque: approx. 556 Nm
  • Control type: Fixed-displacement gerotor
  • Approximate weight: 14.5–15 kg
• Model: TG0240
  • Displacement: 238 cm³/rev (14.5 in³/rev)
  • Continuous differential pressure: approx. 207 bar (3000 psi)
  • Intermittent/peak differential pressure: approx. 276 bar (4000 psi)
  • Maximum continuous speed: approx. 393 rpm
  • Maximum continuous torque: approx. 677–705 Nm
  • Control type: Fixed-displacement gerotor
  • Approximate weight: 15–16 kg
• Model: TG0405
  • Displacement: 405 cm³/rev (24.7 in³/rev)
  • Continuous differential pressure: approx. 172 bar (2500 psi)
  • Intermittent/peak differential pressure: approx. 241 bar (3500 psi)
  • Maximum continuous speed: approx. 232 rpm
  • Maximum continuous torque: approx. 942–991 Nm
  • Control type: Fixed-displacement gerotor
  • Approximate weight: 16–17 kg
• Model: TG0475
  • Displacement: 477 cm³/rev (29.1 in³/rev)
  • Continuous differential pressure: approx. 138 bar (2000 psi)
  • Intermittent/peak differential pressure: approx. 207 bar (3000 psi)
  • Maximum continuous speed: approx. 237 rpm
  • Maximum continuous torque: approx. 887 Nm
  • Control type: Fixed-displacement gerotor
  • Approximate weight: 17–18 kg
• Model: TG0530
  • Displacement: 528 cm³/rev (32.3 in³/rev)
  • Continuous differential pressure: approx. 138 bar (2000 psi)
  • Intermittent/peak differential pressure: approx. 172–207 bar
  • Maximum continuous speed: approx. 213 rpm
  • Maximum continuous torque: approx. 983 Nm
  • Control type: Fixed-displacement gerotor
  • Approximate weight: 18–19 kg

(Note: Exact shaft, flange, and port configurations depend on the full model code. Data based on typical values from Parker official technical literature. Maximum continuous flow approx. 76 L/min; intermittent up to 95–114 L/min. Maximum side load approx. 16000 N.)

Key Technical Advantages

• Roller-vane rotor set combined with zero-leak commutation valve delivers consistently high volumetric efficiency and exceptionally smooth low-speed performance throughout the motor’s service life.
• Patented 60:40 heavy-duty spline geometry with continuous oil-flow lubrication provides superior side-load capacity and effective cooling, extending powertrain and bearing life.
• High-pressure shaft seal withstands full system pressure, eliminating the need for a case drain line and simplifying system design.
• Full drop-in interchangeability with genuine Parker Torqmotors plus 100% simulated duty-cycle testing ensure reliable performance in high-pressure, high-flow, and heavy-duty applications while reducing OEM warranty and field maintenance costs.

Application Areas

Vehicle propulsion and drive axles, winches and hoists, auger and trencher drives, forestry and agricultural machinery (harvesters, chippers), material handling and conveyor systems, snow removal equipment, construction attachments, and a wide range of medium- to heavy-duty mobile and stationary hydraulic systems.

Expert Maintenance Tips

Verify system cleanliness and oil viscosity (mineral oil recommended; follow Parker viscosity guidelines) before installation. Ramp pressure gradually on start-up to avoid dry running. Periodically inspect shaft seals and monitor side-load conditions; keep internal spline lubrication paths clear. When replacing, use verified genuine or fully interchangeable units to ensure exact port and mounting flange match. Limit intermittent operation to no more than 10% of each minute of continuous duty. Maintain proper oil cleanliness to maximize service life.
