TG Series Hydraulic Motor | White Drive TG0335 TG0475 Low Speed High Torque Motor

Genlu Hydraulic proudly introduces our TG Series high-performance orbit hydraulic motors. Renowned for superior Low-Speed High-Torque (LSHT) output and exceptional stability, this series is engineered for heavy-duty travel drives and industrial rotary systems. The TG series covers the complete displacement range from TG405 to TG960, ensuring perfect compatibility with complex original configurations such as TG0335HW440BBBC, TG0335MS050ABCB, and TG0475MS030AAAA. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges, drive shaft specifications, port configurations, and torque output relative to White Drive original standards. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for startup efficiency, high-pressure seal integrity, and continuous endurance before dispatch, ensuring relentless, high-torque driving power for your heavy-duty operations.

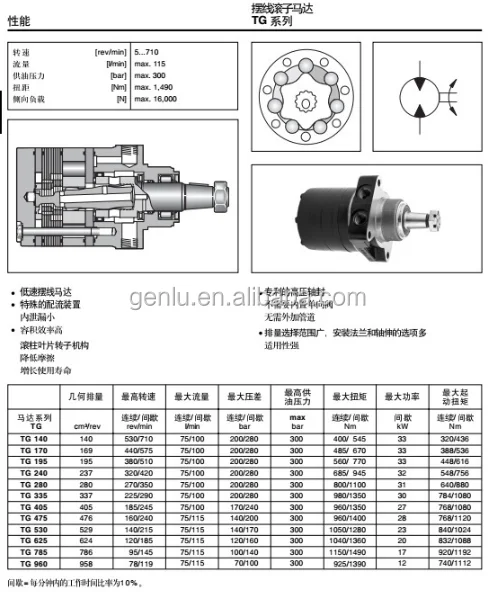

Technical Specifications

• Product Series: White Drive TG Series Hydraulic Motor

• Representative Models: TG0335HW440BBBC, TG0335MS050ABCB, TG0475MS030AAAA

• Displacement Range: 335 cc/rev to 960 cc/rev (Model-dependent)

• Rated Operating Pressure: 20 – 24 MPa

• Max Peak Pressure: 27 – 30 MPa

• Rated Speed: 150 – 400 rpm (Model-dependent)

• Torque Output: Up to 2000 Nm

• Control Mode: Fixed displacement drive, integrated flushing valve options available

Key Technical Advantages:

• Heavy-Duty Bearing System: The output shaft utilizes high-capacity tapered roller bearings capable of withstanding extreme radial loads, allowing for direct drive of heavy sprockets or gears without external support.

• Advanced Distribution Technology: Features a high-performance distribution mechanism that automatically compensates for wear-related clearances under high pressure, minimizing internal volumetric leakage and ensuring smooth torque output even at low speeds (5-10 rpm).

• High-Fatigue Rotor Components: The gerotor rotor set is manufactured from high-strength alloy steel with deep case-hardening, providing exceptional shock resistance and vibration damping, which significantly extends the motor’s operational life.

• Modular Seal Structure: Employs a dual-shaft seal design that tolerates higher case-drain backpressures. This simplifies system plumbing and significantly reduces the risk of seal failure caused by excessive case pressure.

Application Areas:

• Agricultural Machinery: Large-scale combines, grain transport equipment, and specialized agricultural vehicle travel drives.

• Construction Equipment: Rotary drilling rigs, asphalt pavers, and roller travel/vibration systems.

• Forestry Equipment: Harvesters and skidders.

• Industrial Rotary Platforms: Port logistics conveyors and large-scale industrial turntables.

Expert Maintenance Tips:

• Case-Drain Protection: The TG motor must have a dedicated case-drain line plumbed directly to the reservoir. Never route the case-drain in series with system return lines, as high backpressure will rupture the rotating shaft seals.

• Cold Start Protocol: In cold environments, operate at low pressure for the first 5 minutes to warm up the fluid. This ensures optimal viscosity and protects the internal gerotor set from cavitation during the initial start-up.

• System Filtration: Maintain fluid cleanliness at ISO 4406 19/17/14 or better using a 10-20μm return-line filter. This prevents solid particulates from entering the distribution mechanism, which can otherwise cause speed instability.
