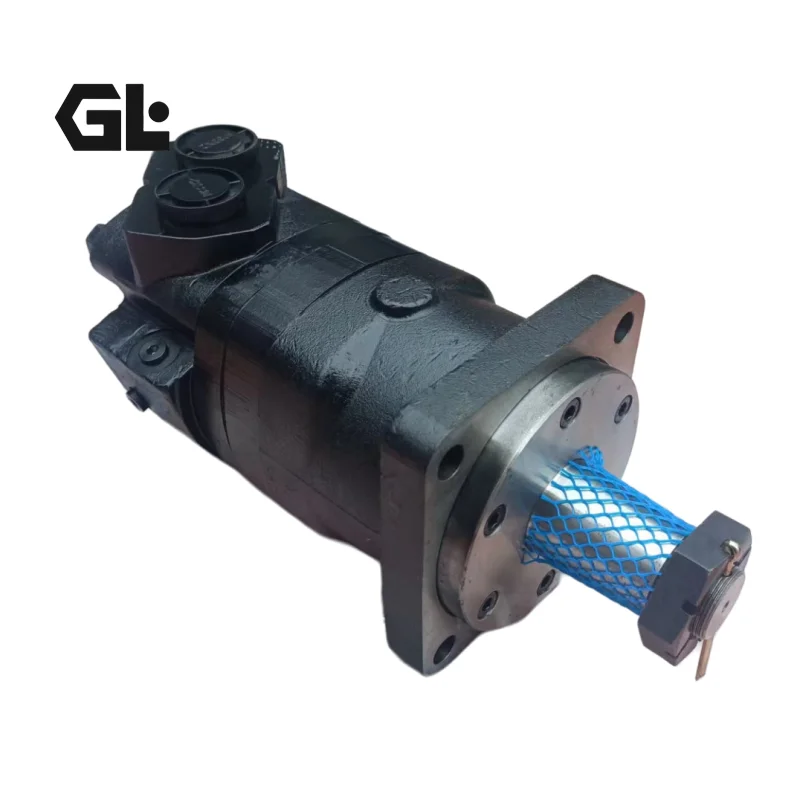

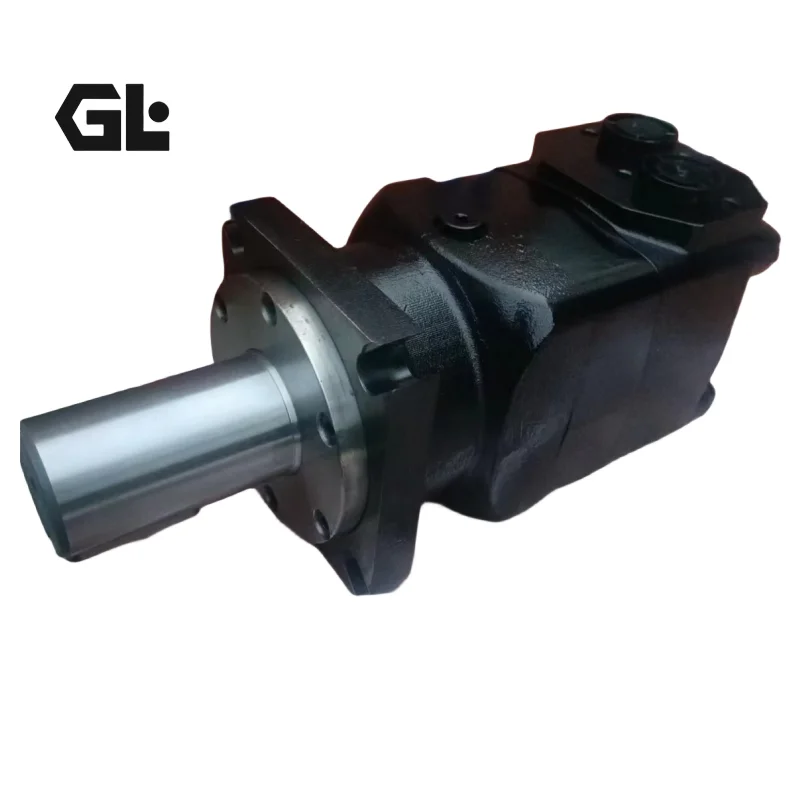

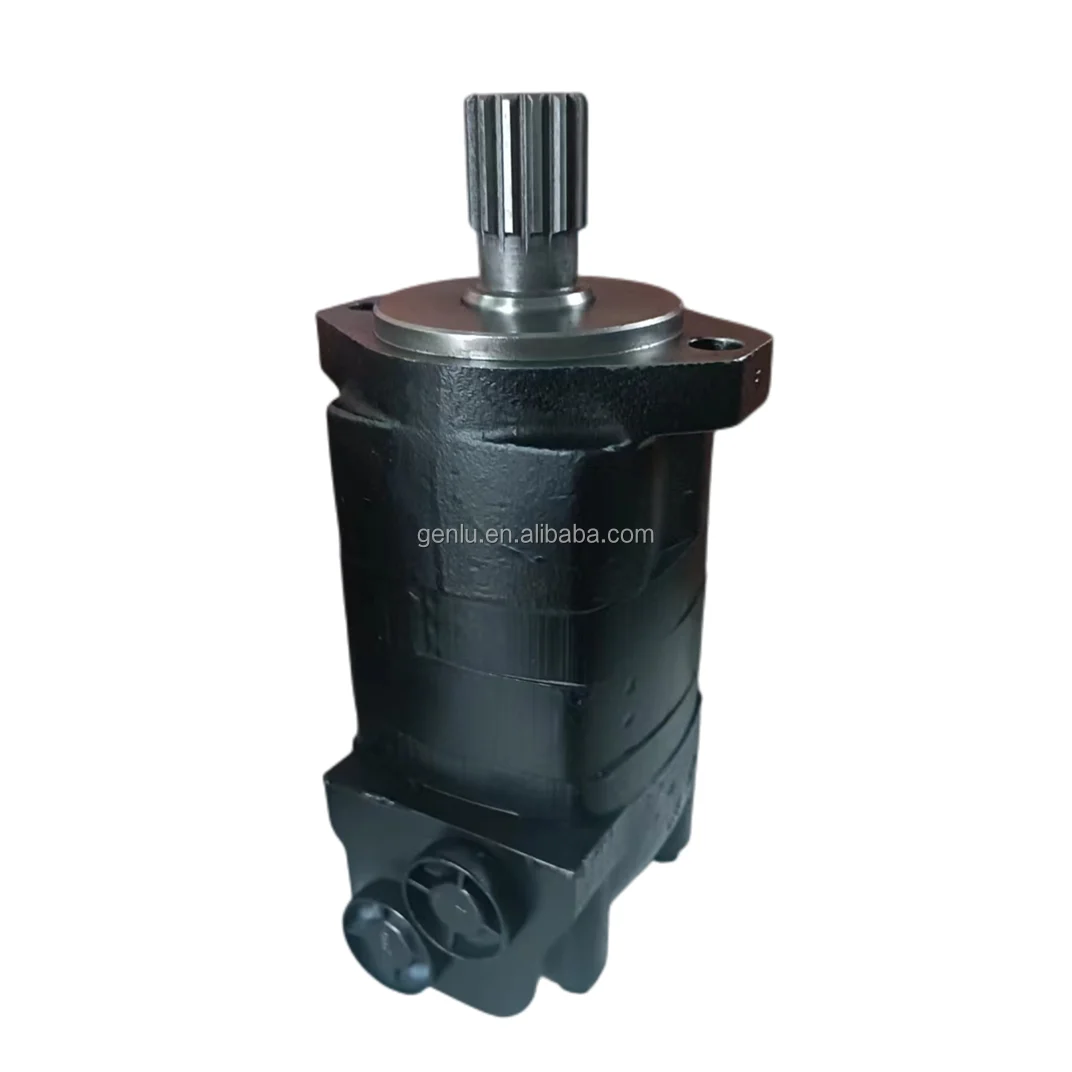

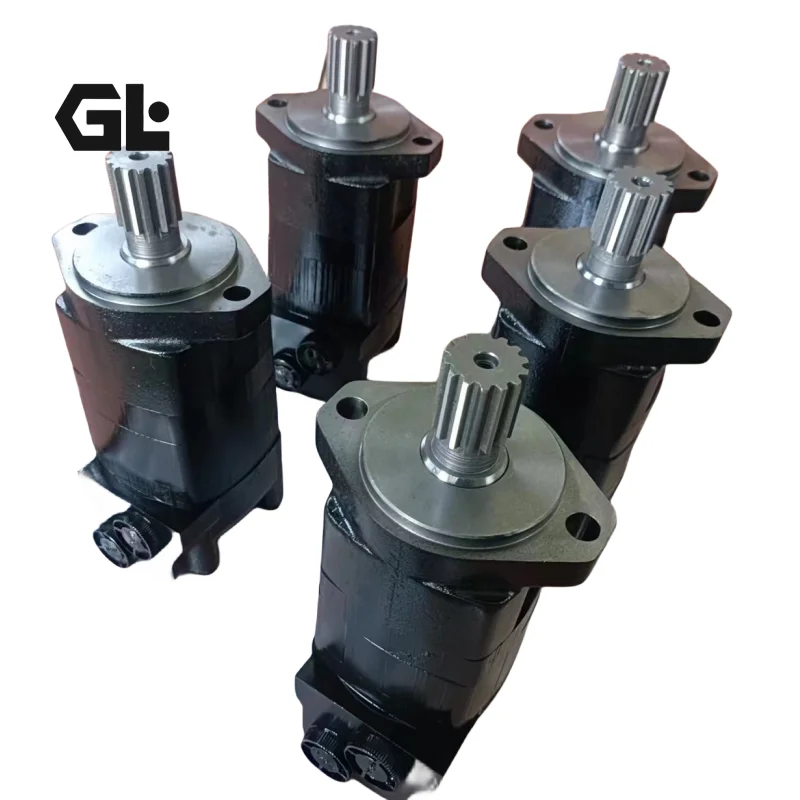

TMK160 Danfoss Orbital Motor 157.9cc 250bar

Product Overview

The TMK160, TMK200, TMK250, TMK315, TMK400, TMK470, TMTW, TMVW400, and TMVW500 are large-frame orbital hydraulic motors from Danfoss (formerly Sauer-Danfoss). Featuring proven gerotor/geroler technology, these low-speed high-torque (LSHT) hydraulic motors are widely deployed in propulsion and work functions for mobile machinery.

Danfoss is a world leader in orbital motor production, offering more than 1,600 different orbital motor models. The TMK series represents the core large orbital motor product line from Danfoss, covering displacements from 160 to 470 cc/rev, recognized for its high efficiency, high starting torque, long service life, and compact design. The TMTW series features wheel-mount orbital motors with displacements from 250 to 630 cc/rev, specifically designed for travel drives and wheel applications. The TMVW series covers displacements from 400 to 800 cc/rev, delivering higher torque output capability.

Designed as 100% interchangeable direct replacements for original Danfoss TMK/TMTW/TMVW series motors, these products match OEM specifications in mounting dimensions, porting interfaces, and performance characteristics. Every unit undergoes 100% simulated duty cycle testing prior to shipment, validating volumetric efficiency, mechanical efficiency, and sealing integrity under actual operating load conditions.

Technical Specifications

TMK Series – General Specifications

• Brand: Danfoss (formerly Sauer-Danfoss)

• Product Type: Large Orbital Hydraulic Motor

• Technology: Gerotor / Geroler design

• Displacement Range: 160 – 470 cc/rev

• Max Intermittent Pressure: 350 bar (5,075 psi)

• Max Continuous Oil Flow: 80 L/min

• Max Intermittent Output: 36 hp / 27 kW

• Rotation Direction: Reversible

• Circuit Type: Open circuit / Closed circuit

• Features: Speed sensor, integrated brake, integrated flushing valve, dust seal ring (optional)

TMK160 (151F6051 / 151F6121, etc.)

• Geometric Displacement: 157.9 cc/rev

• Continuous Speed: 505 rpm

• Intermittent Speed: 630 rpm

• Continuous Torque: 570 N.m (57 daNm)

• Intermittent Torque: 720 N.m (72 daNm)

• Continuous Pressure Drop: 250 bar

• Continuous Output: 22 kW

• Intermittent Output: 27 kW

• Min Starting Pressure: 8 bar

• Min Starting Torque: 430 N.m (43 daNm)

TMK200 (151F6061 / 151F6121, etc.)

• Geometric Displacement: 201.3 cc/rev

• Continuous Speed: 400 rpm

• Intermittent Speed: 500 rpm

• Continuous Torque: 920 N.m (92 daNm)

• Intermittent Torque: 1070 N.m (107 daNm)

• Continuous Pressure Drop: 250 bar

• Continuous Output: 22 kW

• Intermittent Output: 27 kW

• Min Starting Pressure: 8 bar

• Min Starting Torque: 540 N.m (54 daNm)

TMK250 (151F6052 / 151F6122, etc.)

• Geometric Displacement: 252.2 cc/rev

• Continuous Speed: 320 rpm

• Intermittent Speed: 400 rpm

• Continuous Torque: 910 N.m (91 daNm)

• Intermittent Torque: 1050 N.m (105 daNm)

• Continuous Pressure Drop: 250 bar

• Intermittent Pressure Drop: 300 bar

• Continuous Output: 21 kW

• Intermittent Output: 25 kW

• Min Starting Pressure: 7 bar

TMK315 (151F6053 / 151F6123, etc.)

• Geometric Displacement: 314.9 cc/rev

• Continuous Speed: 255 rpm

• Intermittent Speed: 315 rpm

• Continuous Torque: 1070 N.m (107 daNm)

• Continuous Pressure Drop: 250 bar

• Max Inlet Pressure: 350 bar

• Continuous Output: 20 kW

• Intermittent Output: 23.5 kW

• Min Starting Pressure: 7 bar

• Max Oil Flow: 80 L/min

TMK400 (151F6054 / 151F6124 / 151F6134 / 151F6144, etc.)

• Geometric Displacement: 396.8 cc/rev

• Continuous Speed: 200 rpm

• Intermittent Speed: 250 rpm

• Continuous Torque: 1020 N.m (102 daNm)

• Continuous Pressure Drop: 200 bar

• Max Inlet Pressure: 350 bar

• Continuous Output: 17.5 kW

• Intermittent Output: 22 kW

• Min Starting Pressure: 7 bar

• Max Oil Flow: 80 L/min

• Part Number Mapping: 151F6124 / 151F6134 / 151F6144 are different configuration variants of TMK400

TMK470 (151F6055 / 151F6125, etc.)

• Geometric Displacement: 470.5 cc/rev

• Continuous Speed: 170 rpm

• Intermittent Speed: 210 rpm

• Continuous Torque: 1090 N.m (109 daNm)

• Continuous Pressure Drop: 160 bar

• Continuous Output: 14 kW

• Intermittent Output: 17 kW

• Min Starting Pressure: 7 bar

TMTW Series

• Brand: Danfoss (formerly Sauer-Danfoss)

• Product Type: Wheel Mount Orbital Motor

• Displacement Range: 250 – 630 cc/rev

• Continuous Pressure: 250 bar

• Intermittent Pressure: 350 bar

• Peak Pressure Limit: 310–330 bar (intermittent)

• Displacement Focus: 500–1000 cc large displacement

• Load Grade: Ultra-low speed, extra-large torque

• Typical Applications: Forestry machinery, travel drives

• Compatibility: Danfoss TMTW-compatible hydraulic motor

TMVW Series (TMVW400 / TMVW500)

• Brand: Danfoss (formerly Sauer-Danfoss)

• Product Type: TMV Series Orbital Motor

• Displacement Range: 400 – 800 cc/rev

• Max Operating Pressure: 350 bar (5,075 psi)

• Continuous Torque: 920 – 1880 N.m

• Max Continuous Power: 53.5 kW

TMVW400 (151Z8205 / 151Z8210, etc.)

• Geometric Displacement: 400 cc/rev

• Intermittent Torque: 1440 N.m

• Intermittent Power: 67 kW

• Intermittent Pressure: 250 bar

• Mounting Flange: 8-hole wheel flange, Ø223.9 mm, BC 265 mm

• Port Size: G1

• Drain Size: G1/4

• Weight: Approx. 53.7 kg

• Code Number: 151Z8205 (European) / 151Z8210 (US)

TMVW500 (151Z8206 / 151Z8211, etc.)

• Geometric Displacement: 500 cc/rev

• Intermittent Torque: 1800 N.m

• Intermittent Power: 67 kW

• Intermittent Pressure: 250 bar

• Mounting Flange: 8-hole wheel flange, Ø223.9 mm, BC 265 mm

• Port Size: G1

• Drain Size: G1/4

• Weight: Approx. 53.7 kg

• Code Number: 151Z8206 (European) / 151Z8211 (US)

Key Technical Advantages

1. Gerotor/Geroler Design for High Starting Torque and Smooth Operation

The TMK/TMTW/TMVW series employs proven gerotor/geroler technology, delivering high starting torque and smooth operation across the entire speed range. High starting torque enables stable high-torque output at extremely low speeds. Constant operating torque across a wide speed range ensures stable power delivery under varying operating conditions.

2. High Pressure Rating with High Torque Output

TMK series offers intermittent pressure capability up to 350 bar, TMTW series delivers 350 bar intermittent pressure, and TMVW series provides maximum operating pressure up to 350 bar. The TMVW500 delivers intermittent torque up to 1800 N.m, while the TMK470 delivers continuous torque of 1090 N.m. This high pressure and torque capability meets the most demanding mobile machinery applications.

3. 100% Interchangeability – Zero-Modification Drop-In Replacement

Manufactured to exact OEM mounting dimensions, porting specifications, and performance standards, these motors achieve 100% interchangeability with original Danfoss TMK/TMTW/TMVW series units. No machine modifications are required—simply replace and resume operation, minimizing downtime and reducing maintenance costs.

4. 100% Simulated Duty Cycle Testing for Extreme Environment Reliability

Every motor undergoes 100% simulated duty cycle testing before shipment, validating performance under rated and peak pressure conditions—ensuring long-term reliability in demanding construction, forestry, and mobile applications.

5. Robust Cardan Shaft Design with High-Capacity Bearings

High-capacity bearings and a robust cardan shaft design deliver extended service life. High radial and axial load capacity enables the motor to withstand various shock loads common in mobile machinery. Optional dust seal rings provide additional shaft seal protection.

6. Optional Integrated Features for Enhanced System Flexibility

TMK series offers optional speed sensors, integrated brakes, and integrated flushing valves (for continuous oil renewal and cooling in closed circuits). Short motors without bearings enable compact integration into gearboxes. TMTW series features wheel-mount design for direct hub installation on travel drive mechanisms.

7. High Efficiency with Energy-Saving Operation

Danfoss orbital motors are renowned for their outstanding motor efficiency, effectively reducing fuel consumption. Low internal leakage and high volumetric efficiency ensure optimized energy consumption during prolonged continuous operation. Compatibility with a wide variety of hydraulic fluids and both open and closed-loop systems provides application flexibility.

Application Areas

• Skid Steer Loaders: Propulsion and work functions

• Trench Compactors: Propel drives

• Forestry Equipment: Harvester heads, forwarder travel drives

• Agricultural Equipment: Beet harvesters, combine harvester travel drives

• Material Handling & Lifting: Forklifts, AGV drives

• Construction Equipment: Roller travel drives, tracked travel mechanism drives

• Lawn & Turf Equipment: Turf machinery hydraulic drives

• Marine & Industrial: Deck machinery, machine tool hydraulics

Expert Maintenance Tips

1. Pre-Installation Preparation: Before using the TMK/TMTW/TMVW series motor, read and understand the complete Danfoss technical manual. For first commissioning, fill the motor housing with hydraulic fluid using a filling unit with filtration not less than 10 µm. Never operate the motor without fluid.

2. Drain Line Requirements: Large orbital motors such as the TMVW series must always use a drain line. Shaft seal pressure equals the pressure in the drain line. Ensure the drain line is unobstructed and returns to a separate oil tank to prevent seal damage from excessive housing pressure.

3. Drain Pressure Limits: For TMVW series, monitor maximum oil flow in the drain line when return pressure is below 5–10 bar. TMTW series drain pressure should be maintained within allowable limits.

4. Oil Cleanliness Control: Recommended system filtration not less than ISO 4406 18/13. Regular oil analysis is recommended with filter change intervals adjusted based on contamination levels.

5. Coupling Alignment: Precise alignment between the motor shaft and drive shaft is required with minimal tolerance. After installation, manually rotate the coupling to verify smooth operation.

6. Brake System Maintenance (if equipped): For models with integrated brakes, regularly inspect brake functionality and confirm brake pressure meets requirements.

7. Regular Inspection Schedule: Regular inspection of the hydraulic system and motor is recommended. Check hydraulic fluid level daily and monitor operating temperature, noise levels, and case drain flow regularly. Abnormal increases may indicate internal wear or seal degradation.
