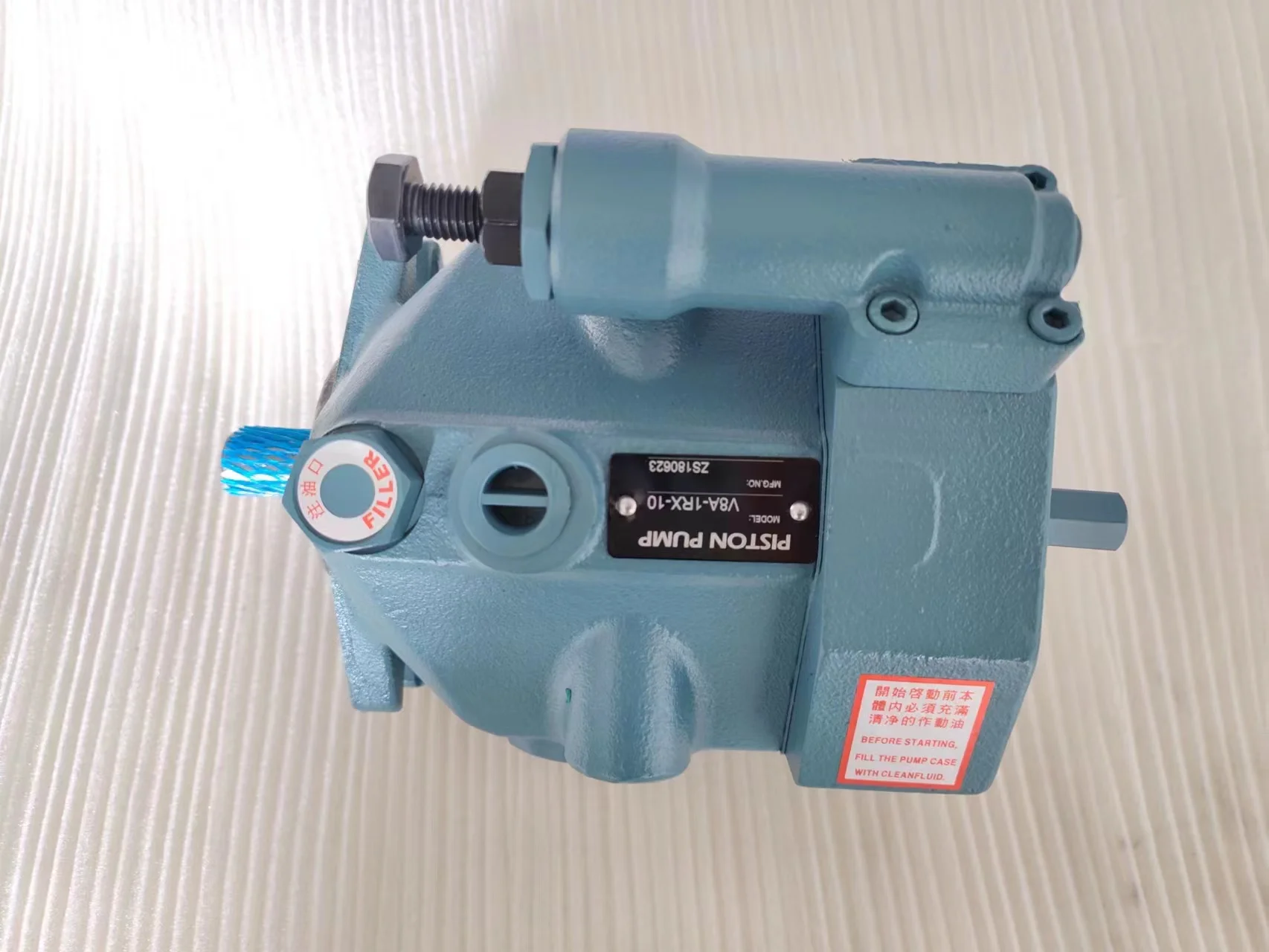

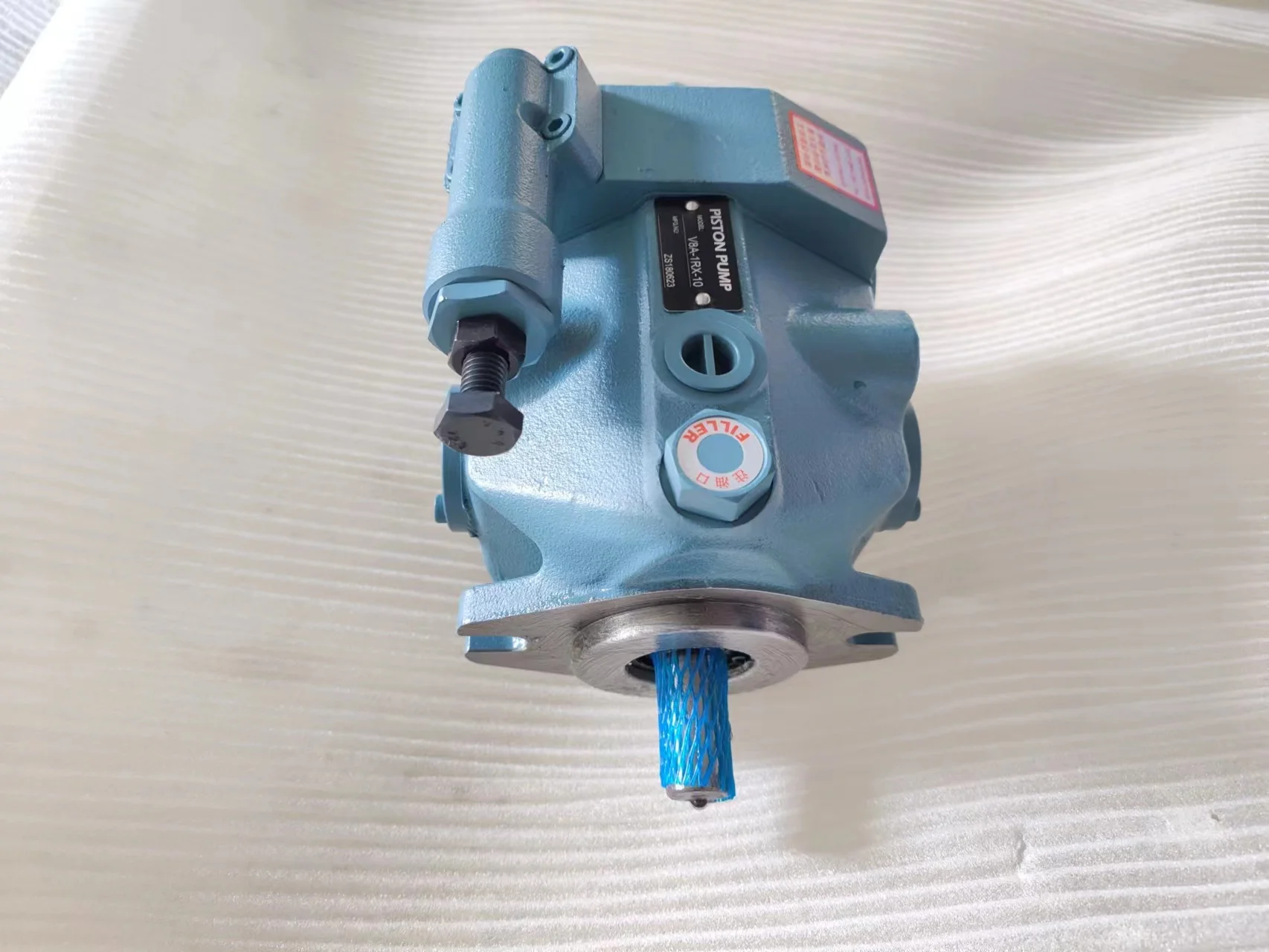

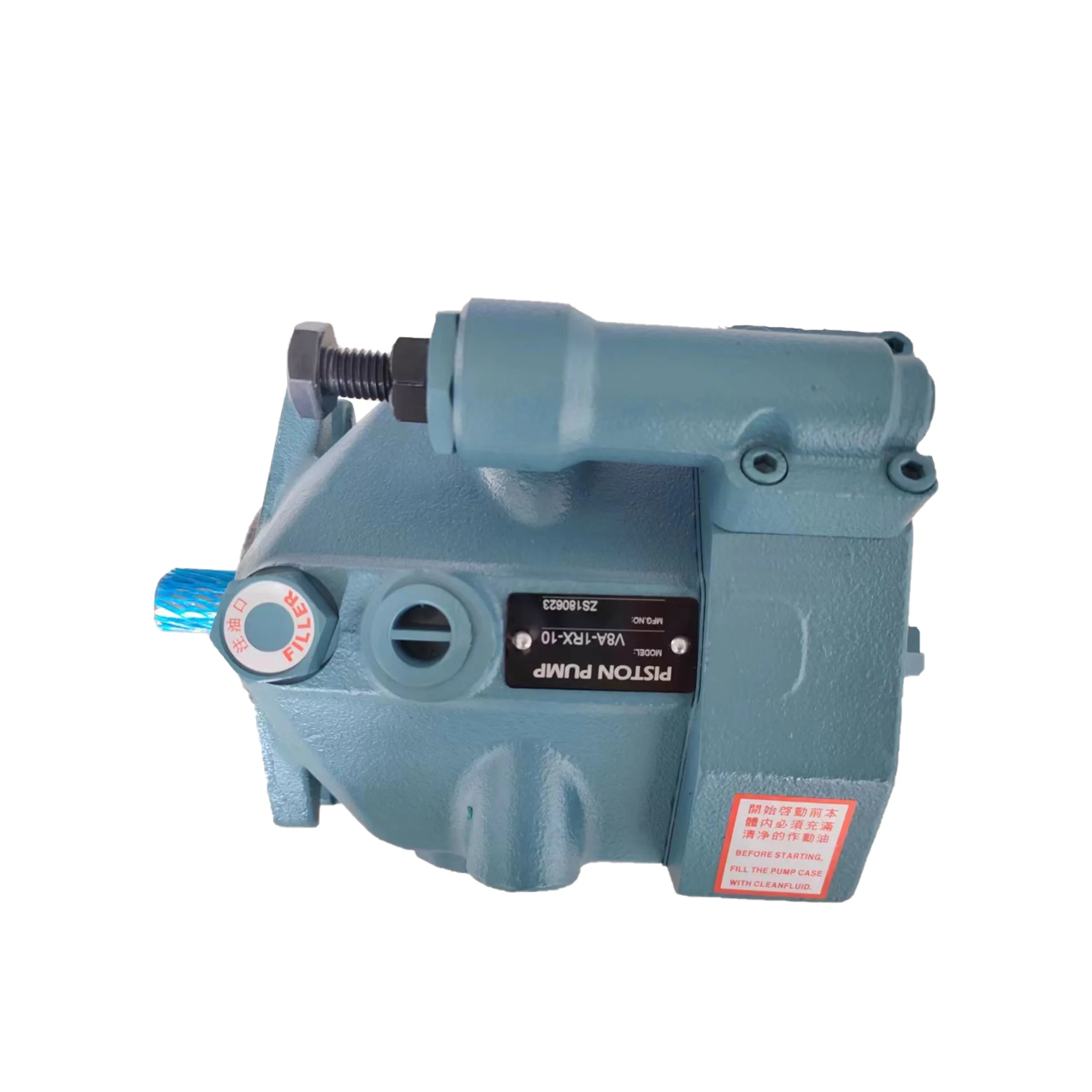

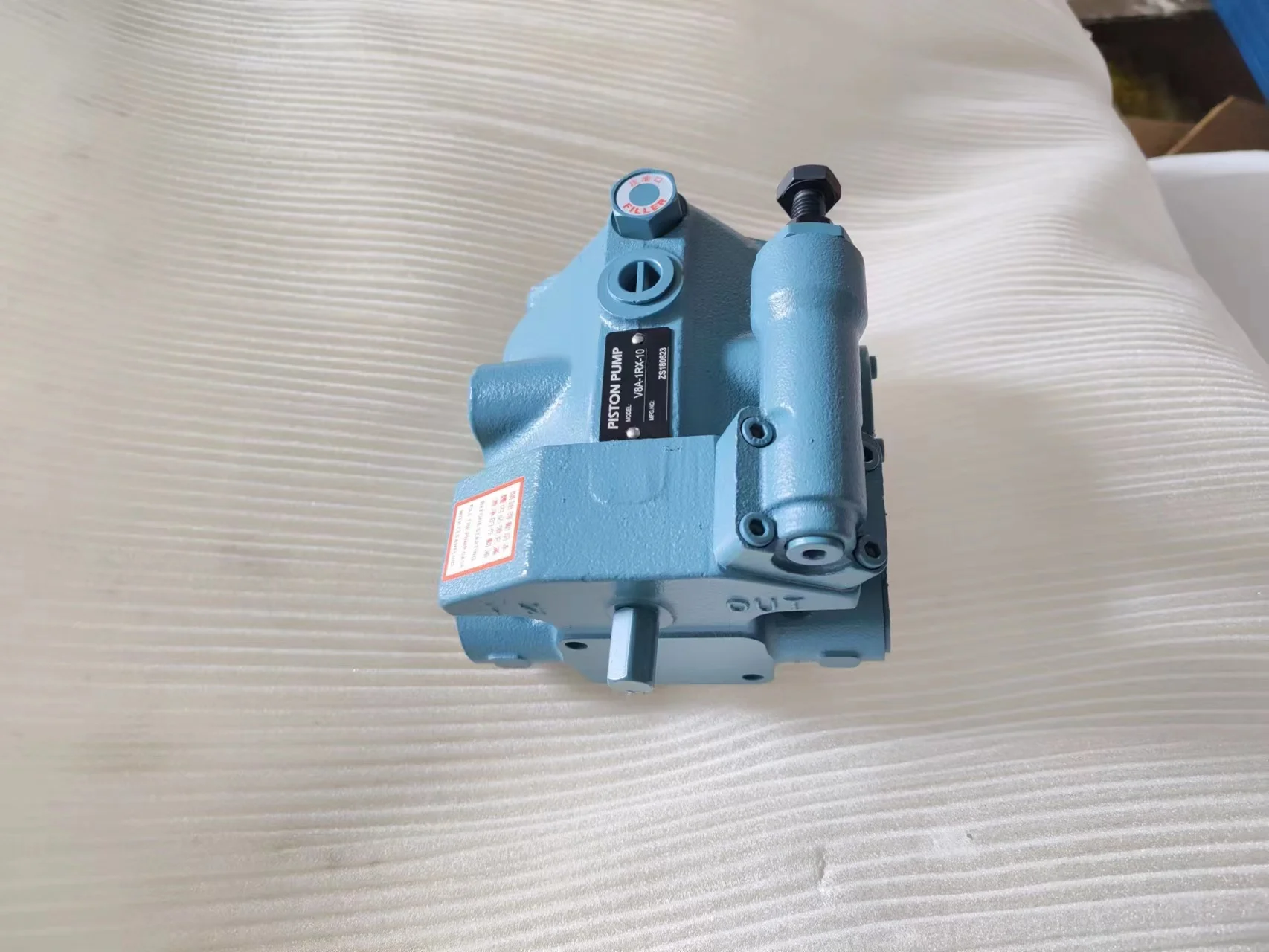

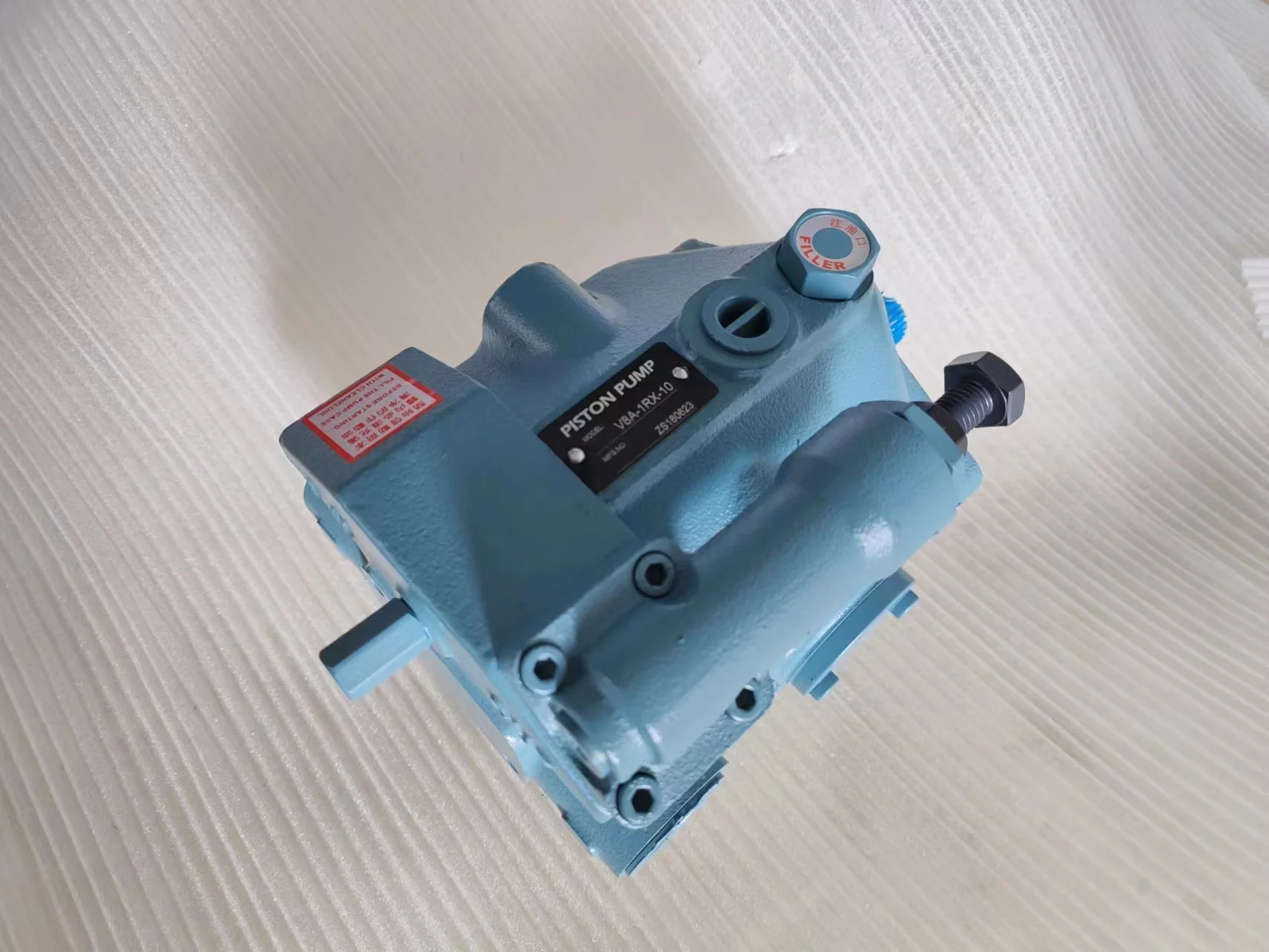

Daikin V Series Variable Piston Pump Replacement

Genlu Hydraulic stands as an elite-tier global developer and high-precision manufacturer of industrial fluid power machinery, quiet axial piston configurations, and specialized flow-control modules for global B2B supply channels. The V, V15, V18, V23, and V70 Series High-Performance Axial Variable Displacement Piston Pump Line—engineered to deliver a premium 100% drop-in interchangeable alternative to the definitive ultra-low-noise industrial pump standard established by Japanese motion control pioneer Daikin Industries (comprehensively spanning the entire volumetric catalog across V8, V15, V18, V23, V38, V50, and V70, while directly matching specialized ordering codes such as V15A1RY-95, V23A2RX-30, V70A3RX-60, and V8A1RX-20)—represents a highly efficient fluid power solution. Celebrated throughout global metalworking and manufacturing industries as the benchmark for whisper-quiet operations, this series integrates an exceptionally rigid housing design with highly responsive pressure compensation architecture.

When industrial systems enter prolonged pressure-holding phases (such as a CNC machining center sustaining cylinder clamping force), the variable swashplate angle automatically adjusts back to a near-zero flow deadhead state. During this phase, the 9 internal pistons oscillate at minimal stroke lengths under high speeds, generating intense fluid shear heating across the shoe-to-swashplate and cylinder-to-valve-plate boundaries. Low-grade aftermarket alternatives failing to tightly manage thermal expansion metrics or using sub-standard bimetallic bonding succumb to sudden mechanical failure—including piston shoe detachment, valve plate galling, or sticking servo compensation spools that cause intense pressure spikes and catastrophic pump lock-up. Genlu’s premium V series replacement pump line is reverse-engineered to duplicate the exact factory low-noise internal geometry, high-damping structural enclosures, and specialized micro-damping slots on the valve plate specified in product manuals. Whether validating standard SAE multi-bolt flanges, straight keyed/splined drive shafts, or specialized integrated pressure-control compensators (including A1, A2, and A3 automatic regulators), our piston pumps guarantee 100% mechanical and functional drop-in interchangeability. Prior to delivery, each unit passes rigorous verification on our Digital Piston Pump Test Rigs under Full-Simulation Conditions to evaluate flow linearity curves, full cut-off deadhead leakage thresholds, pressure compensation reaction speeds, and operational decibel levels, ensuring seamless field installation.

Technical Specifications

• Product Classification: V/V15/V18/V23/V70 Series Ultra-Low-Noise Axial Variable Displacement Piston Pump Platform

• Core Cross-Reference Specification Ordering Codes Matrix:

  • V15A1RY-95 (V15 Displacement, A1 Pressure Regulator, Clockwise Right-Hand, Flange Mount, Series-95 Design)

  • V23A2RX-30 (V23 Displacement, A2 Pressure Regulator, Clockwise Right-Hand, Flange Mount, Series-30 Design)

  • V70A3RX-60 (V70 Displacement, A3 Pressure Regulator, Clockwise Right-Hand, Flange Mount, Series-60 Design)

  • V8A1RX-20 (V8 Compact Frame, A1 Pressure Regulator, Clockwise Right-Hand, Flange Mount, Series-20 Design)

• Comprehensive Volumetric Displacements Matrix Coverage:

  • V8 (8.0 $cc/rev$) / V15 (14.8 $cc/rev$) / V18 (17.8 $cc/rev$)

  • V23 (23.0 $cc/rev$) / V38 (37.7 $cc/rev$) / V50 (51.6 $cc/rev$) / V70 (69.8 $cc/rev$)

• Continuous Rated Nominal Operating Pressures: 17.5 MPa (175 bar / 2538 PSI) for V15 to V23 frames, with transient peak overpressures rated up to 21.0 to 25.0 MPa depending on frame size

• Pressure Compensation Adjustment Ranges:

  • A1 Controller Regulator Envelope: 0.8 to 7.0 MPa (8 to 70 bar)

  • A2 Controller Regulator Envelope: 1.5 to 14.0 MPa (15 to 140 bar)

  • A3 Controller Regulator Envelope: 3.5 to 21.0 MPa (35 to 210 bar)

• Permissible Drive Shaft Speed Thresholds: Continuous tracking from 500 RPM up to 1800 RPM (optimized for standard 4-pole and 6-pole industrial electric motors)

• Factory-Calibrated Rotational Setting: Standard R-suffix designation (Clockwise Right-Hand rotation viewing directly from shaft face; reverse drive prohibited)

Key Technical Advantages:

• Acoustically Optimized Ribbed Housing for Whisper-Quiet Performance: Features specialized internal noise-dampening cavity topology and reinforced cast iron wall thicknesses. This design holds operational noise levels for the V15/V23 between 53 and 58 dB(A) at a full 14 MPa load, eliminating high-frequency harmonic whine in CNC machine tool environments.

• Ultra-Responsive A1/A2/A3 Pressure-Compensating Regulators: Equipped with high-precision servo adjustment pistons and balanced constant-pressure spring assemblies. Upon reaching the pre-set pressure cut-off point, the mechanism adjusts the swashplate angle to zero within 0.03 seconds, minimizing unnecessary bypass heating and reducing electric motor energy consumption.

• Micro-Engineered Dual Damping Relief Slots on the Valve Plate: Utilizes micro-machined geometric fluid damping paths that eliminate fluid trapping shocks during the transition between suction and discharge. This configuration dampens acoustic vibrations while lowering output pressure ripples to enhance feed positioning accuracy for machine tool tool-posts.

• Advanced Sintered Bimetallic Alloy Interfacing for Piston Groups: Piston shoes and cylinder-to-valve-plate wear boundaries feature high-density silicon nitride and specialized copper alloy bimetallic sintering. This hydrostatic load-bearing surface maintains volumetric efficiency above 95% and minimizes internal leakage even during brief thermal spikes up to 70°C.

Application Areas:

• Precision CNC Machine Tools and Metal Cutting Centers: Primary pressure supply for CNC lathe chuck clamping loops, high-speed hydraulic turret indexing, and automated machining center tool-changers.

• Specialized Light Industrial Machinery and Footwear Equipment: Automated computer-controlled injection molding units, heavy hydraulic sole-clicking machines, and precision vulcanizing setups.

• Custom Automated Industrial Hydraulic Power Units (HPUs): Centralized non-standard factory fluid power stations and high-precision laboratory hydrostatic servo loops.

Expert Maintenance Tips:

• Enforced Low-Backpressure Rules for the Independent Case Drain Line: When operating at full cut-off pressure holding, the pump relies entirely on its case drain line to remove internal friction heat. Route the independent case drain line directly back to the reservoir via a dedicated single line (do not combine with main returns or valve block ports), keeping continuous case backpressure below 0.1 MPa (1 bar) to safeguard the shaft seal and prevent servo piston sluggishness.

• Rigid Enforcement of Fluid Cleanliness Levels (Within NAS Grade 9): Because the pressure compensation spool paths feature micro-scale clearance tolerances, maintain fluid cleanliness at or above NAS Grade 9 (ISO 4406 19/16/13). Equip the main return line with high-efficiency filters rated at 10 microns or finer; microscopic particulates can jam the regulator spool, causing pressure instability or motor overload.

• Mandatory Pre-Fill and Electrical Inching Sequences Prior to Initial Startup: Precision piston pumps cannot withstand dry-run conditions. Prior to initial startup, manually fill the pump housing with clean hydraulic oil through the top case drain port and rotate the coupling 3–5 times by hand. Use a brief “inching” method (triggering the motor for 1 second, repeating 3 times) to clear residual air from the intake line before initiating continuous operation.
