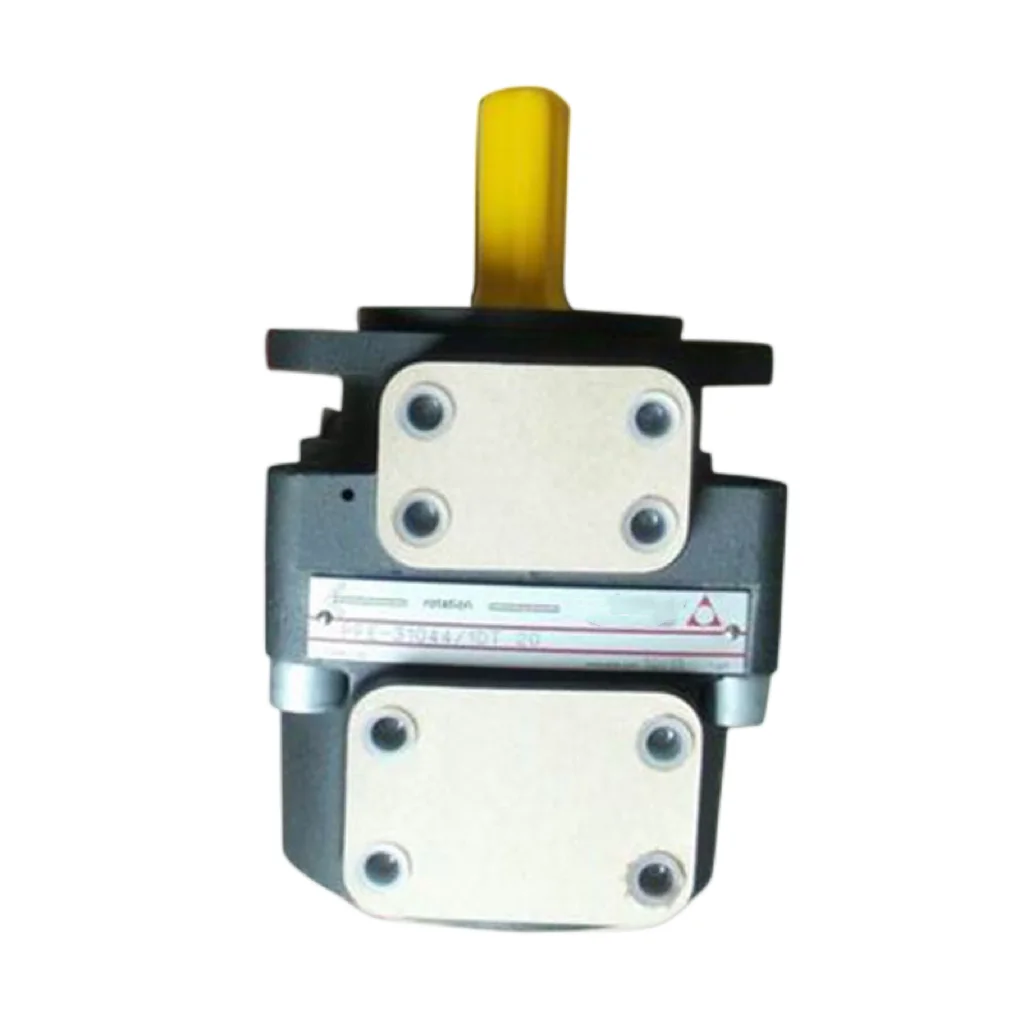

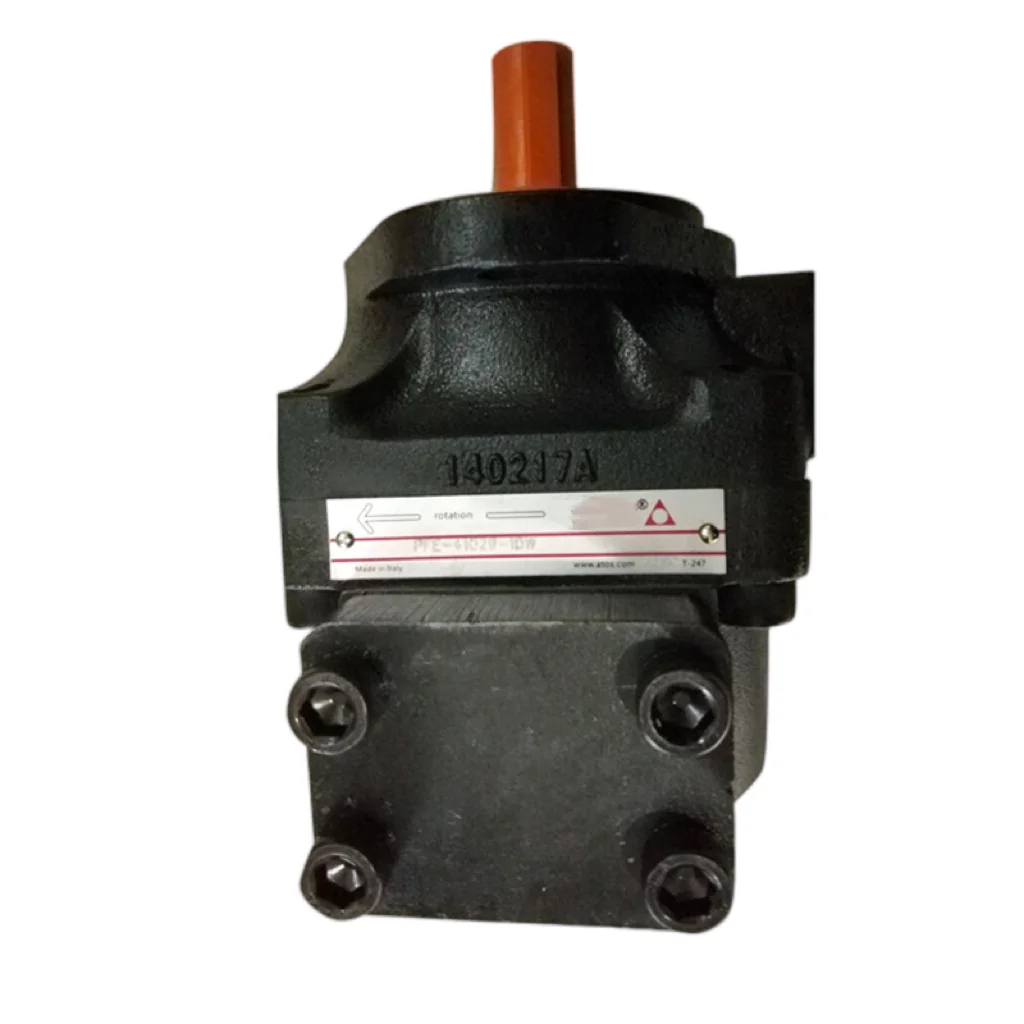

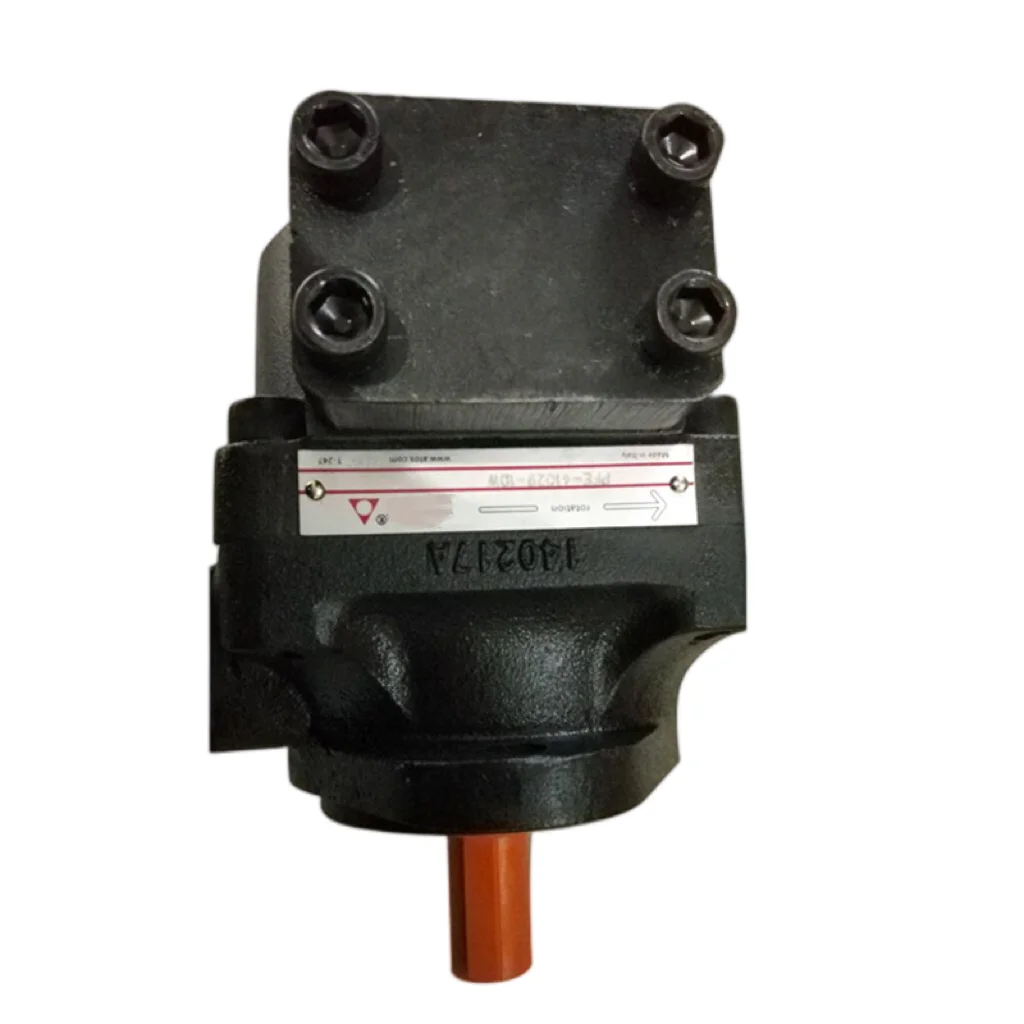

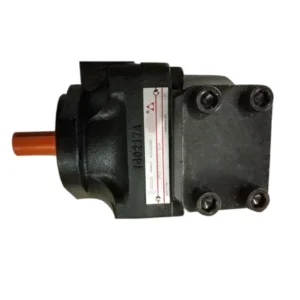

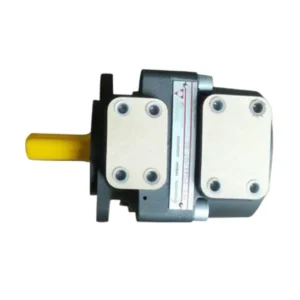

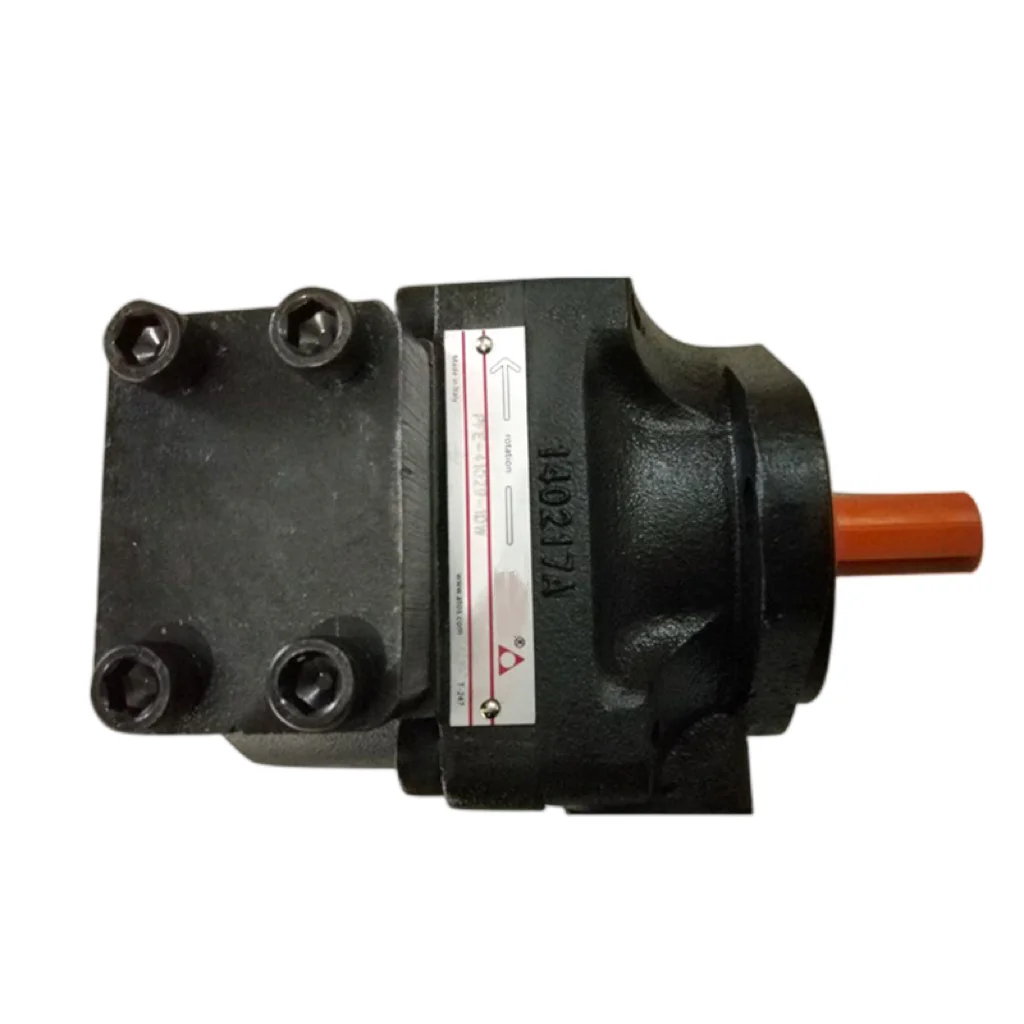

PFE-31022/3DT Atos Vane Pump 21.6cm³ 210bar

Product Overview

The PFE-31022/3DT, PFE-31022/5DT, PFE-31028/1DT and PFE-31028/1DU models are fixed-displacement vane pumps fully interchangeable with the genuine Atos PFE series. Featuring a 12-vane dual/triple cartridge design with integral hydraulic balancing, these pumps deliver high pressure capability (up to 210 bar), low noise and long service life. Every unit undergoes 100% simulated duty-cycle testing to guarantee exact matching of flanges, shaft ends, ports and performance curves with original Atos PFE pumps. Ideal for industrial hydraulic systems, they provide a reliable drop-in replacement that reduces spare-part costs and downtime.

Technical Specifications

• Models: PFE-31022/3DT / PFE-31028/1DT etc. (Atos PFE-31 series)
• Displacement (PFE-31022): 21.6 cm³/rev
• Displacement (PFE-31028): 28.1 cm³/rev
• Continuous/peak pressure: 210 bar
• Speed range: 800–2800 rpm
• Control type: Fixed displacement vane pump
• Typical weight: approx. 9 kg
• Rotation: D = clockwise (standard)
• Port orientation: T = standard
• Features: 12-vane, hydraulic balancing, replaceable cartridge design

Key Technical Advantages

1. 12-vane design with integral hydraulic balancing enables high pressure capability (210 bar) and high volumetric efficiency while significantly reducing noise and pulsation.
2. Dual/triple cartridge design allows easy field servicing without removing the entire pump body to restore performance.
3. Full dimensional interchangeability with genuine Atos PFE series (flange, shaft and ports) verified by rigorous testing, enabling true drop-in replacement.
4. 100% simulated duty-cycle testing covering pressure, speed and flow curves guarantees factory performance matching original units and minimizes field failures.
5. Robust housing and precision manufacturing provide long service life and high reliability across multiple hydraulic fluids.

Application Areas

Industrial hydraulic systems, machine tools, injection molding machines, presses, metallurgical equipment, test benches and other applications requiring medium-to-high pressure fixed-displacement vane pumps.

Expert Maintenance Tips

• Ensure precise shaft alignment with a flexible coupling; avoid applying radial or axial loads directly to the shaft end.
• Keep suction line diameter at least equal to the pump inlet, minimize length and fittings, and maintain adequate positive suction head to prevent cavitation.
• On first start-up, set the system relief valve to the lowest setting, run at low speed under no load for several minutes to purge air, then gradually raise pressure.
• Use anti-wear hydraulic oil (DIN 51524) with appropriate viscosity and maintain high fluid cleanliness; replace filters regularly.
• Periodically inspect shaft seals and mounting bolts; keep the seal area clean to extend service life.
