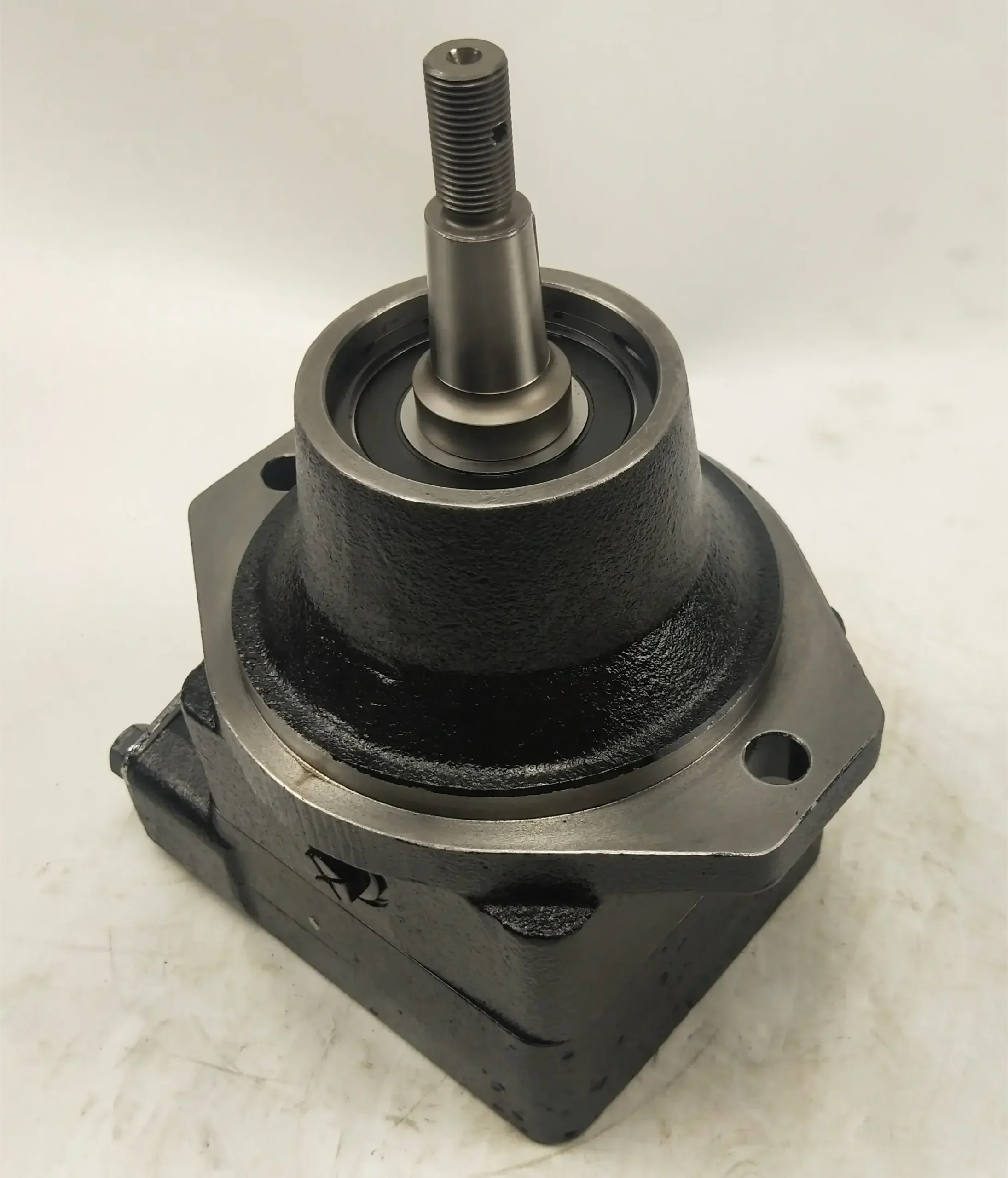

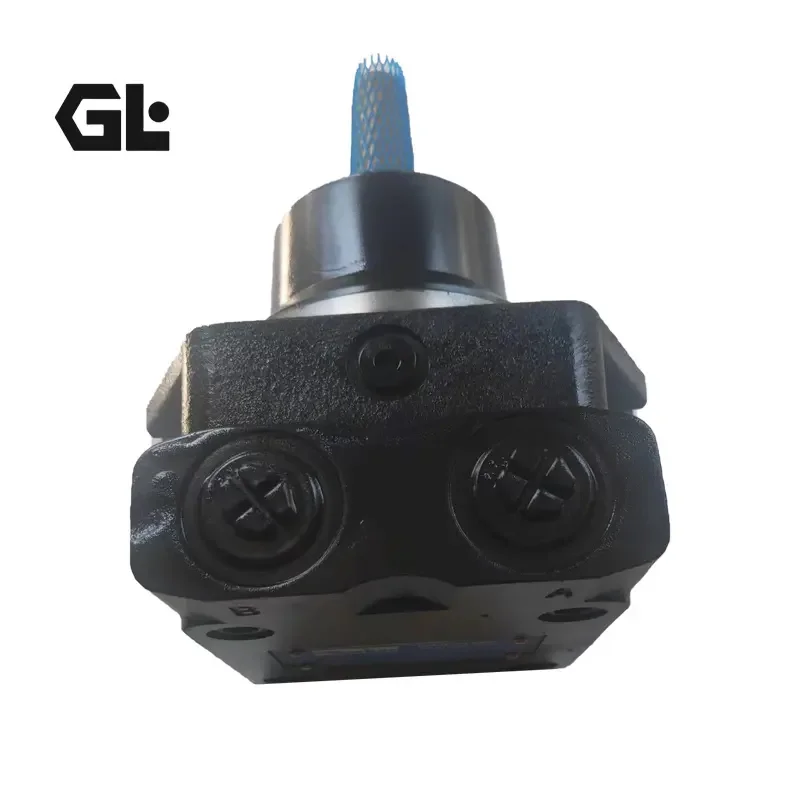

M5AF-018-2R01-B1W2 Parker Denison Vane Motor 18 cc 300 bar 4000 rpm

Product Overview

The M5AF-018-2R01-B1W2 is a Parker Denison M5AF Series heavy-duty hydraulic fixed displacement vane motor with a displacement of 18.0 ml/rev. This series is engineered for severe-duty applications requiring high pressure, high speed, and reliable performance under low fluid lubricity conditions.

The M5AF Series features a 12-vane design with a patented cartridge that ensures exceptionally low noise levels across the entire speed range. The vane, rotor, and cam ring are pressure-balanced to extend service life over the full speed range. The uni-directional version incorporates an internal valve that enables smooth dynamic braking, simplifies the hydraulic circuit, and eliminates the risk of motor cavitation.

As a premium aftermarket alternative to original Parker Denison hydraulic motors, this product offers 100% direct interchangeability with identical mounting dimensions and performance specifications, requiring zero modification to existing systems. Rotating groups may be easily replaced to renew the motor or change displacement to suit altered speed or torque requirements.

Every unit undergoes 100% simulated duty cycle testing prior to shipment, guaranteeing performance reliability under actual working conditions.

Technical Specifications

• Model: M5AF-018-2R01-B1W2

• Brand: Parker Denison

• Series: M5AF Heavy-Duty Vane Motor

• Displacement: 18.0 ml/rev (cm³/rev)

• Maximum Intermittent Pressure: 300 bar

• Maximum Continuous Pressure: 300 bar

• Maximum Speed: 4000 RPM

• Rotation: Clockwise (viewed from shaft end)

• Shaft Type: Keyed (non-SAE)

• Inlet Port: SAE 12 – 1-1/16″ UNF

• Outlet Port: SAE 12 – 1-1/16″ UNF

• Drain Port Size: SAE 6 – 9/16″ UNF

• Flange Size: Special diameter 120 – 2 bolts

• Seal Material: BUNA-N

• Pressure Relief Valve: None

Key Technical Advantages

1. High Starting Torque Efficiency
Vane-type motors deliver exceptional starting torque efficiency, enabling smooth starts under high-load conditions without pressure overshoots, jerks, or instantaneous horsepower spikes.

2. Low Noise Operation
The 12-vane design combined with a patented cartridge ensures very low noise levels at any speed.

3. Built-in Dynamic Braking & Cavitation Resistance
The uni-directional version incorporates an internal valve for smooth dynamic braking, simplifying the hydraulic circuit and eliminating cavitation risk.

4. Extended Service Life via Pressure Balance
Pressure-balanced vane, rotor, and cam ring design extends service life across the full speed range. Double-lip vanes reduce sensitivity to fluid contamination.

Application Areas

• Fan Drive

• Mixer

• Shredder

• Compressor

• Generator Drive

• Construction Equipment

• Agriculture Machinery

Expert Maintenance Tips

1. Pre-Start Priming: Prior to initial start-up, fill the motor housing with hydraulic fluid through the drain port to ensure adequate lubrication.

2. Mounting Torque: Refer to Parker Service Manual (Bulletin HY29-0017-M1/UK) for proper mounting bolt torque. Standard torque for M5AF Series is 100 Nm.

3. Rotation Confirmation: Verify clockwise rotation matches system requirements before installation.

4. Fluid Cleanliness: Maintain system fluid cleanliness to ISO 4406 18/16/13 or better.

Model 2: M5BF-028-1N02-B1M3 (M534168)

Product Overview

The M5BF-028-1N02-B1M3 (M534168) is a Parker Denison M5BF Series heavy-duty hydraulic fixed displacement vane motor with a displacement of 28.0 ml/rev. This series is engineered for severe-duty applications requiring high pressure, high speed, and reliable performance under low fluid lubricity conditions.

The M5BF Series features a 12-vane design with bi-rotational capability, making it suitable for complex applications requiring both clockwise and counter-clockwise rotation. With an intermittent pressure rating of 320 bar, this motor offers exceptional high-pressure performance in its class. High-capacity double ball bearings allow direct mounting of shaft loads including fans, belt drives, and chain drives.

As a premium aftermarket alternative to original Parker Denison hydraulic motors, this product offers 100% direct interchangeability with identical mounting dimensions and performance specifications. Precision manufacturing ensures that any component is interchangeable.

Every unit undergoes 100% simulated duty cycle testing prior to shipment, guaranteeing performance reliability under actual working conditions.

Technical Specifications (Bulleted List)

• Model: M5BF-028-1N02-B1M3 (M534168)

• Brand: Parker Denison

• Series: M5BF Heavy-Duty Vane Motor

• Displacement: 28.0 ml/rev (cm³/rev)

• Maximum Intermittent Pressure: 320 bar

• Maximum Continuous Pressure: 290 bar

• Maximum Speed: 4000 RPM

• Rotation: Bi-rotational

• Theoretical Torque: 0.446 Nm/bar

• Shaft Type: Tapered with M16×1.5 thread

• Flange Size: Special diameter 135 mm – 2 bolts, 160 mm center distance

• Port Connections: SAE flange ports, side entry

• Drain Port Size: M18×1.5 Metric Thread

• Seal Material: BUNA-N

• Additional Options: Anti-starve valve

• Weight: Approx. 18.5 kg

Key Technical Advantages

1. Bi-Rotational Capability
The M5BF Series offers bi-rotational operation, enabling both clockwise and counter-clockwise rotation for complex applications.

2. Superior High-Pressure Performance
Maximum intermittent pressure of 320 bar offers a significant advantage among vane motors in its class.

3. High Starting Torque Efficiency
Vane-type motors deliver high starting torque efficiency for smooth starts under high load without pressure spikes.

4. Low Torque Ripple
The 12-vane motor exhibits very low torque ripple — typically ±1.5% — even at low speeds.

5. High Load Capacity Bearings
High-capacity double ball bearings allow direct mounting of shaft loads including fans, belt drives, and chain drives.

Application Areas

• Fan Drive

• Mixer

• Shredder

• Compressor

• Generator Drive

• Construction Equipment

• Agriculture Machinery

Expert Maintenance Tips

1. Pre-Start Priming: Fill the motor housing with hydraulic fluid through the drain port before initial start-up.

2. Mounting Torque: Refer to Parker Service Manual (Bulletin HY29-0017-M1/UK) for proper mounting bolt torque.

3. Bi-Rotational Operation: This model is bi-rotational — no rotation direction verification is required prior to installation.

4. Shaft Load Installation: High-capacity double ball bearings allow direct shaft load mounting, but ensure radial loads do not exceed bearing ratings.

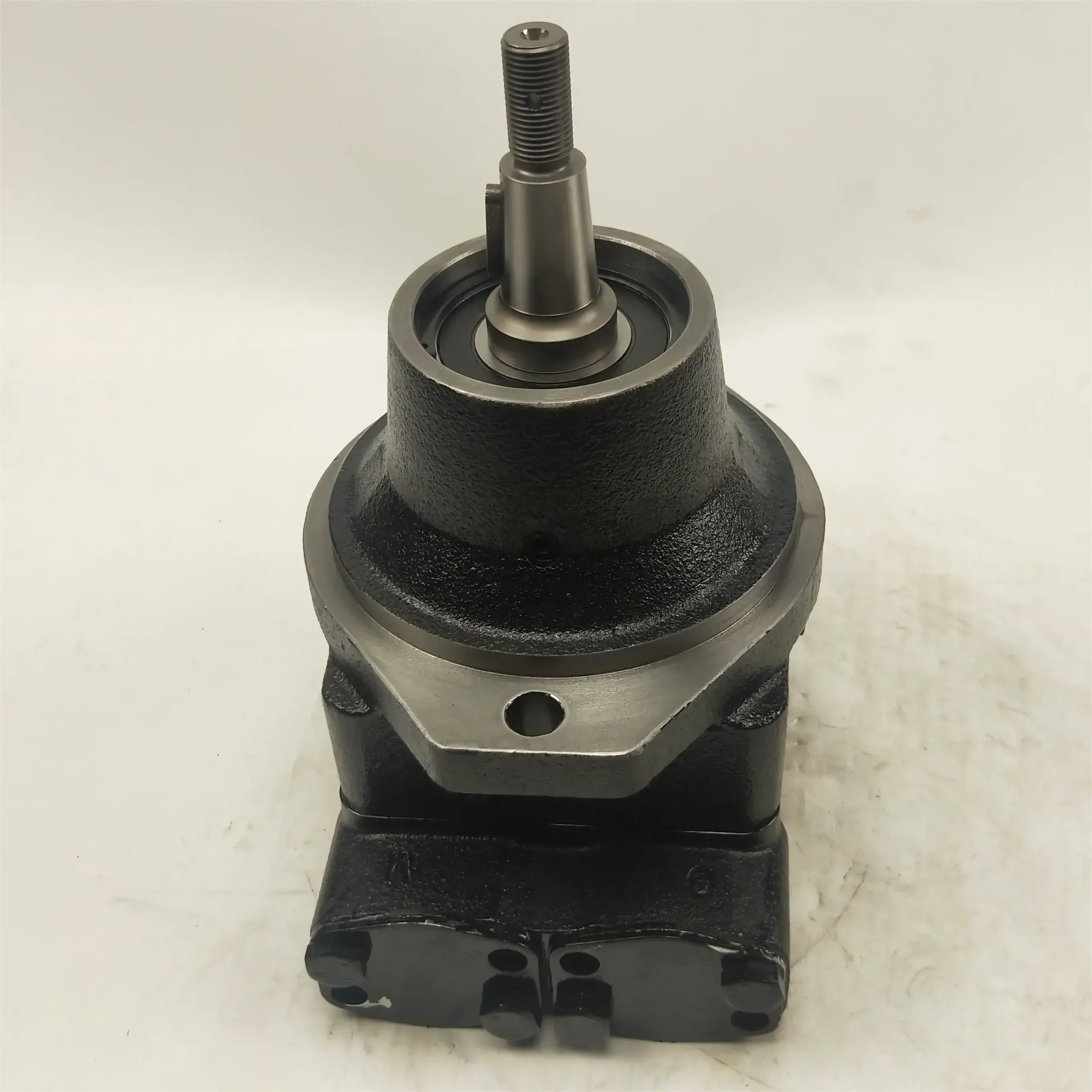

Model 3: M5BF-036-1N02-B1M3 (M294696)

Product Overview

The M5BF-036-1N02-B1M3 (M294696) is a Parker Denison M5BF Series heavy-duty hydraulic fixed displacement vane motor with a displacement of 36.0 ml/rev. This series is engineered for severe-duty applications requiring high pressure, high speed, and reliable performance under low fluid lubricity conditions.

The M5BF Series features a 12-vane design with bi-rotational capability. With an intermittent pressure rating of 320 bar and a maximum speed of 4000 RPM, this motor delivers exceptional performance in demanding industrial environments. High-capacity double ball bearings allow direct mounting of shaft loads.

As a premium aftermarket alternative to original Parker Denison hydraulic motors, this product offers 100% direct interchangeability with identical mounting dimensions and performance specifications, requiring zero modification to existing systems.

Every unit undergoes 100% simulated duty cycle testing prior to shipment, guaranteeing performance reliability under actual working conditions.

Technical Specifications

• Model: M5BF-036-1N02-B1M3 (M294696)

• Brand: Parker Denison

• Series: M5BF Heavy-Duty Vane Motor

• Displacement: 36.0 ml/rev (cm³/rev)

• Maximum Intermittent Pressure: 320 bar

• Maximum Speed: 4000 RPM

• Rotation: Bi-rotational

• Theoretical Torque: 0.573 Nm/bar

• Shaft Type: Tapered with M16×1.5 thread

• Flange Size: Special diameter 135 mm – 2 bolts, 160 mm center distance

• Port Connections: SAE flange ports, side entry

• Seal Material: BUNA-N

• Weight: Approx. 18.5 kg

Key Technical Advantages

1. Bi-Rotational Capability
The M5BF Series offers bi-rotational operation for applications requiring both rotation directions.

2. Superior High-Pressure & High-Speed Performance
Maximum intermittent pressure of 320 bar and maximum speed of 4000 RPM deliver industry-leading performance.

3. High Starting Torque Efficiency
Vane-type motors deliver exceptional starting torque efficiency for smooth starts under high-load conditions.

4. Low Torque Ripple
The 12-vane motor exhibits very low torque ripple — typically ±1.5%.

5. High Volumetric Efficiency
Overall efficiency reaches 90% at 320 bar. Vane motors maintain high volumetric efficiency throughout their operating life.

Application Areas

• Fan Drive

• Mixer

• Shredder

• Compressor

• Generator Drive

• Construction Equipment

• Agriculture Machinery

Expert Maintenance Tips

1. Pre-Start Priming: Fill the motor housing with hydraulic fluid through the drain port before initial start-up.

2. Mounting Torque: Refer to Parker Service Manual (Bulletin HY29-0017-M1/UK) for proper mounting bolt torque.

3. Bi-Rotational Operation: This model is bi-rotational — no rotation direction verification required.

4. Fluid Cleanliness: Maintain system fluid cleanliness to ISO 4406 18/16/13 or better.
