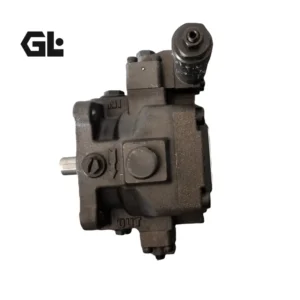

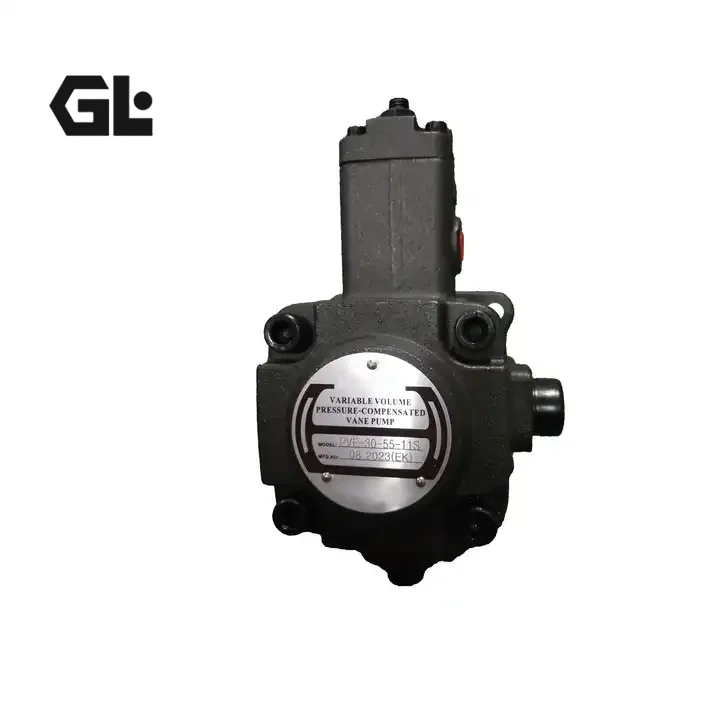

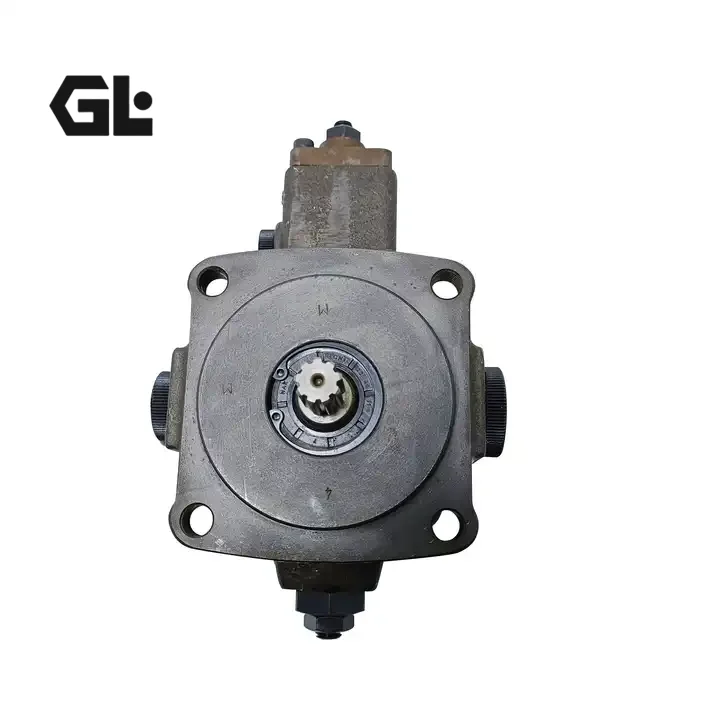

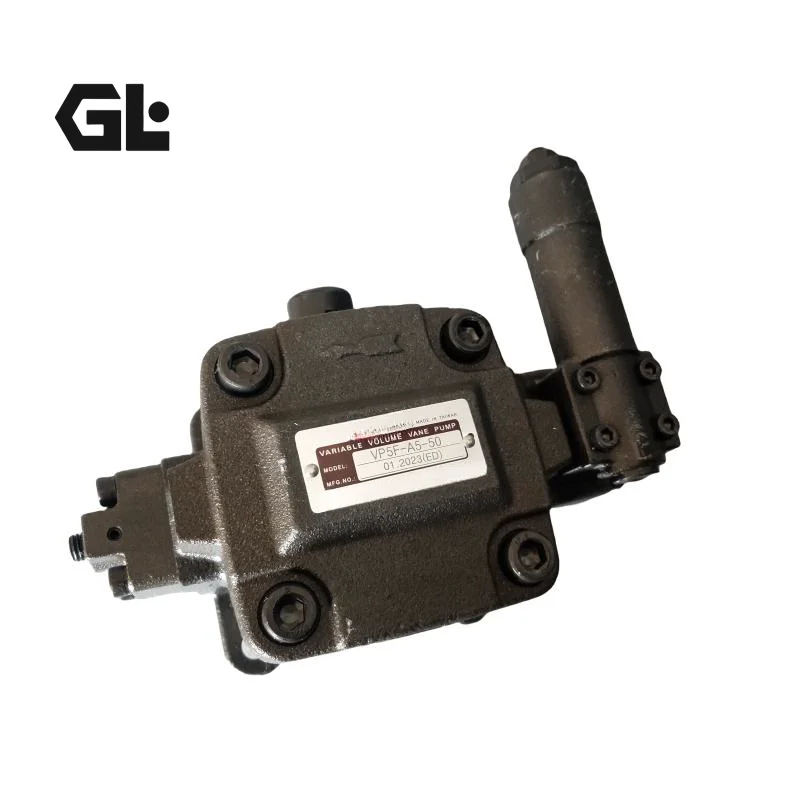

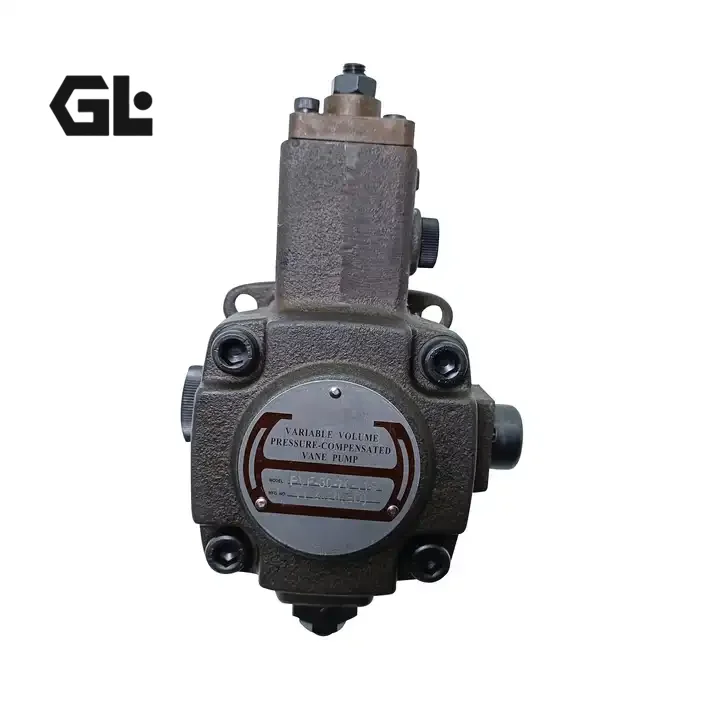

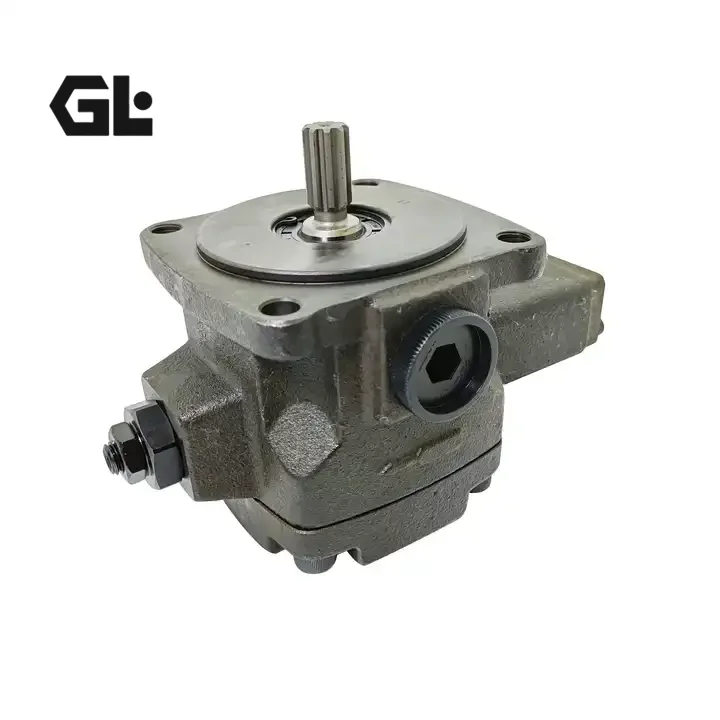

VP-20/A3 VP-40/A3 VP-30-FA3 VP-SF-40-D Variable Displacement Vane Pump

Product Overview:

The VP series (VP1/VP2/VP3/VP4 configurations) variable displacement vane pumps, including models VP-20/A3, VP-40/A3, VP-30-FA3 and VP-SF-40-D, are engineered for medium-to-low pressure energy-efficient hydraulic systems. Featuring automatic pressure-compensated variable displacement, they deliver high flow at low load and reduced flow at high pressure, significantly cutting motor power consumption and system heat generation. These pumps offer excellent drop-in interchangeability with equivalent Taiwanese and imported variable vane pumps. Every unit undergoes 100% simulated operating condition testing to verify volumetric efficiency, pressure stability and noise performance, making them ideal for machine tools, shoe-making equipment and compact hydraulic power units.

Technical Specifications

• Models: VP-20/A3 (VP-20-FA3), VP-30-FA3, VP-40/A3 (VP-40-FA3), VP-SF-40-D
• Geometric displacement: VP-20 series 11.1 ml/r; VP-30 series 16.7 ml/r; VP-40 series 22.2 ml/r
• Rated continuous pressure: max. 7.0 MPa (70 bar)
• Peak pressure: approx. 7.5 MPa intermittent
• Pressure adjustment range (A3 control): 4.0–7.0 MPa (40–70 bar)
• Speed range: 800–1800 r/min (optimal approx. 1440–1800 r/min)
• No-load flow (approx. at 1800 r/min): VP-20 ~20 L/min; VP-30 ~30 L/min; VP-40 ~40 L/min
• Control type: Internal feedback pressure-compensated variable displacement
• Rotation: Standard clockwise (viewed from shaft end); counterclockwise optional
• Mounting: Primarily flange type (F); foot-mount available; keyed or splined shaft options
• Weight: VP-20 series approx. 5 kg; VP-30/40 series approx. 9–10 kg (flange version)
• Recommended fluid: ISO VG32, viscosity 20–50 cSt at 40 °C
• Operating oil temperature: 15–60 °C continuous (extreme approx. –10 to +70 °C)
• Volumetric efficiency: ≥90% (typical conditions)

Key Technical Advantages:

• Precise pressure compensation: Built-in spring and feedback mechanism enable stepless displacement adjustment—high flow under low load for rapid response, automatic reduction under pressure hold—delivering measurable energy savings and lower heat generation.
• High volumetric efficiency with low internal leakage: Optimized stator contour and tight vane-to-stator clearances, combined with quality seals, maintain stable efficiency and minimize power loss.
• Quiet operation: Balanced vane design and precision-machined stator ensure smooth, low-noise performance, ideal for machine tools and indoor environments.
• Extended service life and reliable bearing support: Wear-resistant materials and properly engineered bearings, together with strict cleanliness control and 100% simulated duty testing, ensure long-term pressure stability and durability.
• Superior interchangeability: Flange, shaft end and port dimensions match equivalent VP-series pumps for direct replacement with minimal system modification.

Application Areas:

Machine tool feed and clamping systems, shoe-making and cutting machine hydraulic stations, light-duty injection molding auxiliaries, compact hydraulic power packs, medium-to-low pressure circuits in automated production lines, packaging and textile machinery drives.

Expert Maintenance Tips:

Ensure shaft alignment between pump and motor: eccentricity ≤0.05 mm and angular error ≤1° to avoid radial or axial loads. Route the case drain line directly below the tank oil level with back pressure held ≤0.3 bar. On initial start-up, run unloaded for approximately 10 minutes to purge air. Maintain fluid cleanliness (recommended filtration ≤25 μm) and keep oil temperature within the specified range. When adjusting pressure, loosen the lock nut first. Use matched original or equivalent-precision parts when replacing vanes or stator to preserve clearance and performance.
