ZD-L10 ZT-L12-1 Pneumatic Monoblock Valve 40L 250bar

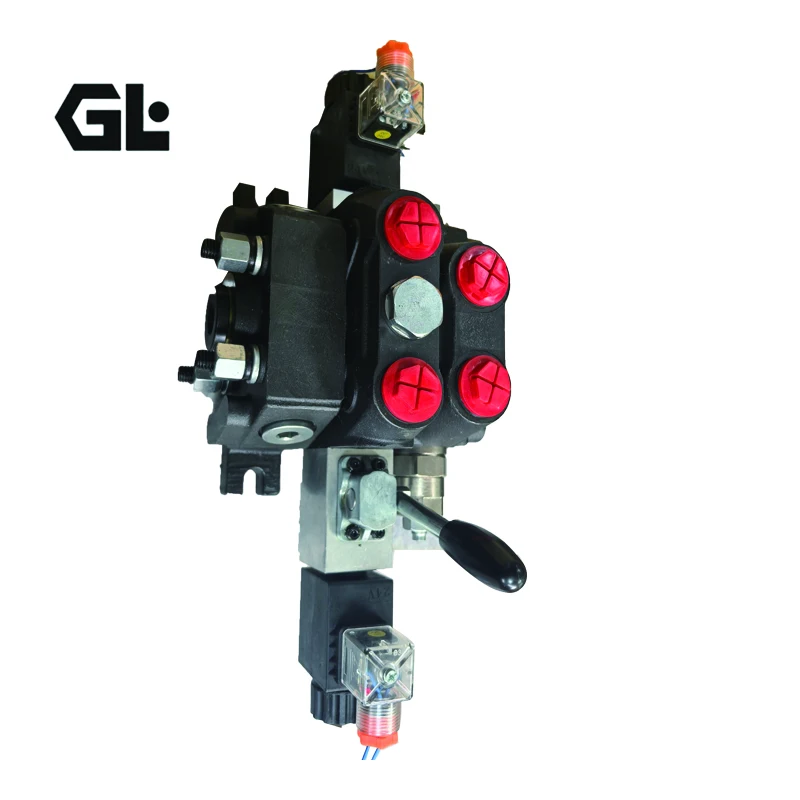

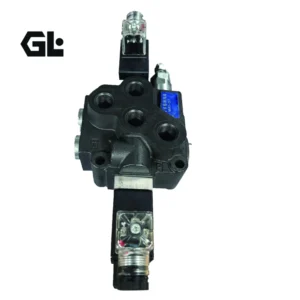

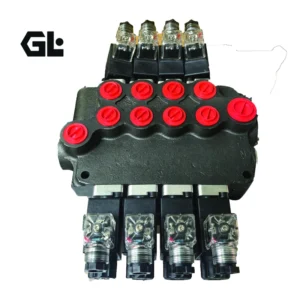

Product Overview

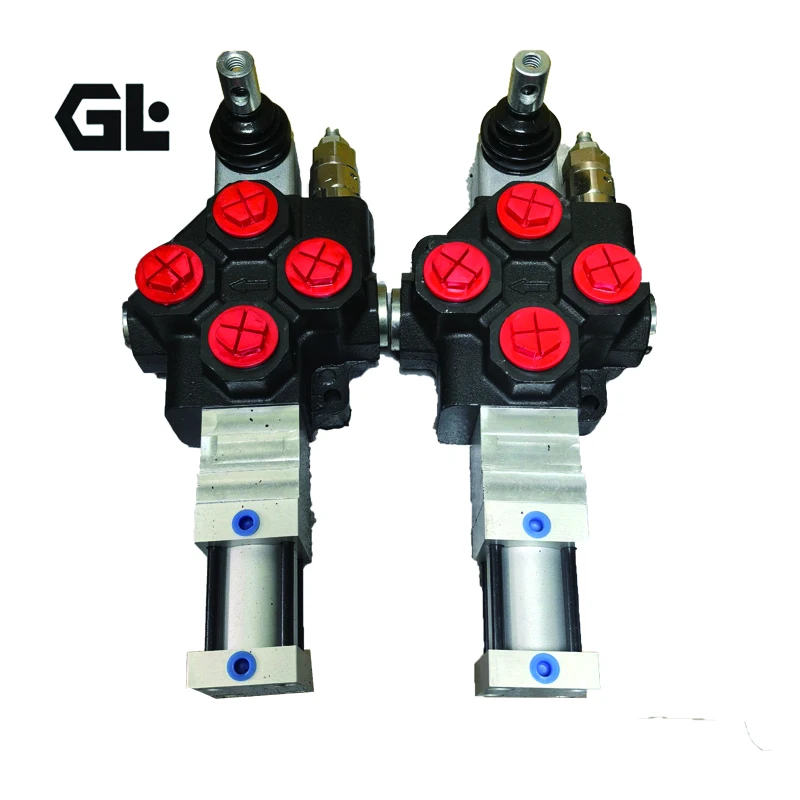

The ZD-L10, ZT-L12-1, ZDa-L15-1, ZD-L15-1 and ZT-L20-1 are medium-to-high pressure monoblock directional control valves with integral cast construction, built-in check and relief valves, and support for lever and pneumatic actuation. The ZD-L10 is rated at approximately 40 L/min and 160/200 bar (max 250 bar); the ZT-L12 reaches 45–50 L/min up to 315 bar; the ZD-L15 handles 60–63 L/min. Parallel circuit design with optional power-beyond port and spool functions O, A, Y, P provide versatile control. Fully interchangeable with equivalent monoblock valves, every unit undergoes 100% simulated operating-condition testing for reliable directional control and pneumatic remote operation on forklifts, sanitation vehicles and light loaders.

Technical Specifications

• Models: ZD-L10, ZT-L12-1, ZDa-L15-1, ZD-L15-1, ZT-L20-1
• Type: Monoblock directional control valve (lever + pneumatic control)
• Nominal flow: ZD-L10 approx. 40 L/min; ZT-L12 approx. 45–50 L/min; ZD-L15 approx. 60–63 L/min
• Rated / max pressure: 160/200 bar (up to 250–315 bar depending on model)
• Number of sections: 1–6 (model dependent)
• Control options: Manual lever, pneumatic (hydraulic/electro-hydraulic optional)
• Spool return: T (spring return), W (ball detent)
• Spool functions: O, A, Y, P etc.
• Circuit: Parallel, optional power beyond
• Built-in features: Check valve (anti-return), relief valve (system pressure adjustment)
• Port threads: G3/8, G1/2, M18×1.5, SAE etc.
• Operating temperature: –20…+80 °C
• Viscosity range: 10–400 mm²/s
• Filtration: ≤10 μm

Key Technical Advantages

1. Integral cast monoblock design: Superior sealing performance compared with sectional valves, compact size and low leakage for space-constrained installations.
2. Built-in check and relief valves: Internal check prevents oil return; adjustable relief sets system pressure, reducing external plumbing.
3. Dual lever + pneumatic control: Supports pneumatic remote operation alongside manual lever for flexible and reliable actuation across different duty cycles.
4. Full interchangeability: Standardized interfaces and spool dimensions allow direct replacement of equivalent ZD/ZT series or compatible monoblock valves.
5. Precision machining and durability: Heat-treated spools (approx. HRC45) with honed surfaces and throttling grooves deliver smooth shifting, wear resistance and long service life.

Application Areas

Directional control on forklifts and stackers

• Sanitation vehicles, light loaders and small construction equipment
• Agricultural machinery and material-handling systems
• Mobile hydraulic circuits requiring pneumatic remote or manual lever operation
• OEM service and aftermarket replacement of monoblock directional control valves

Expert Maintenance Tips:

1. Ensure mounting surfaces are clean and flat; tighten threaded connections correctly to prevent leaks; keep pneumatic control lines free of moisture and contamination.
2. Regularly verify the setting of the internal relief valve to avoid system over-pressure; clean or replace the check valve if return-flow issues appear.
3. Maintain fluid cleanliness and viscosity within recommended limits with filtration ≤10 μm to prevent spool sticking.
4. Check pneumatic pressure stability during air control operation; lubricate lever-side moving parts periodically.
5. After long storage, cycle the valve manually several times to confirm return and shifting before applying full system load.
