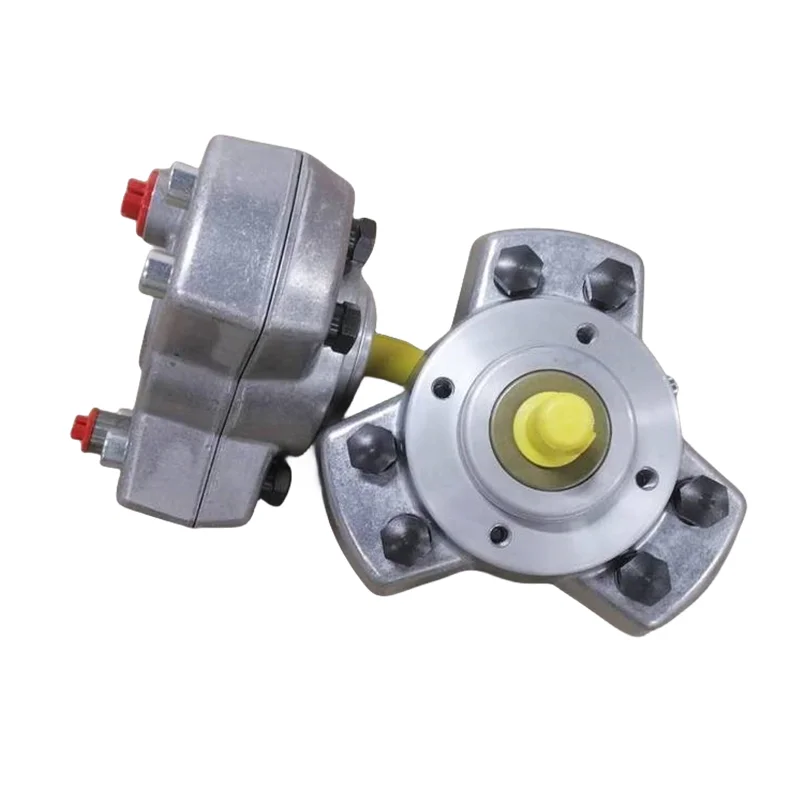

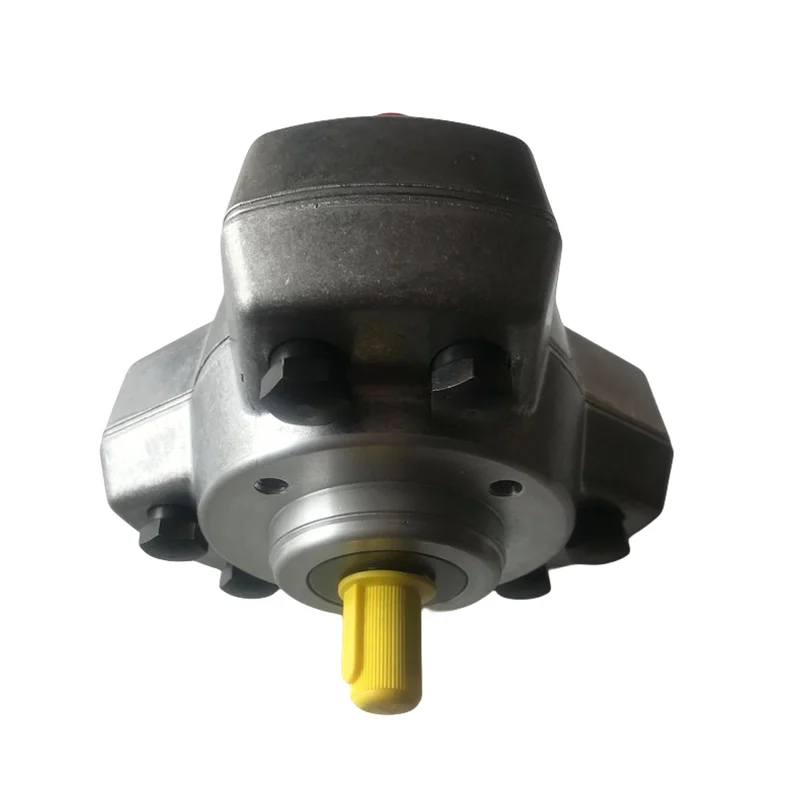

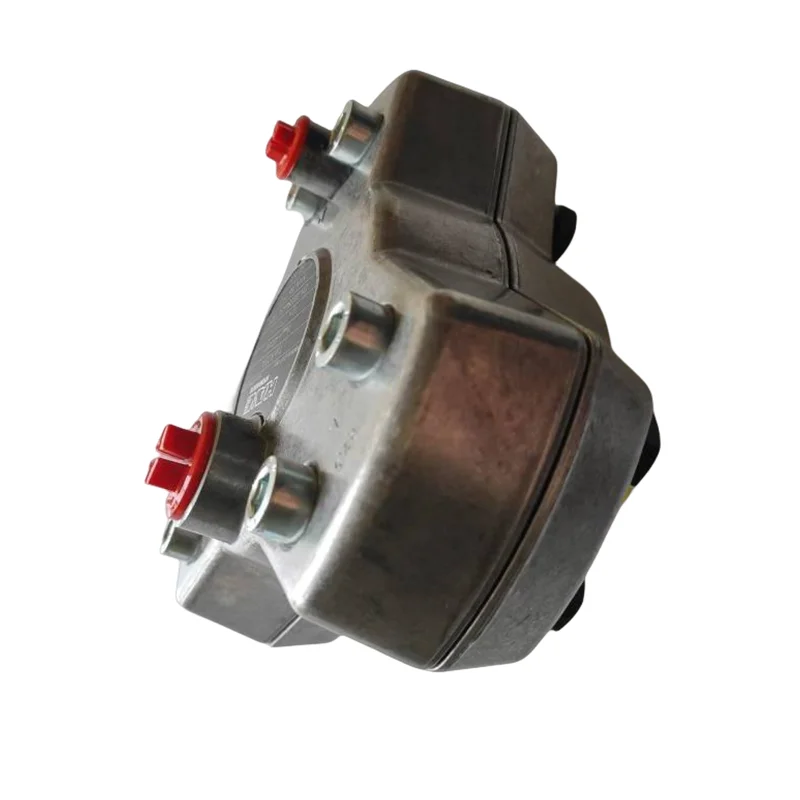

ZNYB Series Axial Piston Pump | ZNYB02020101 ZNYB02020201 Variable Displacement Pump

Genlu Hydraulic proudly introduces our ZNYB Series (including key architectural references ZNYB02020101 and ZNYB02020201) high-pressure swashplate axial piston variable displacement hydraulic pumps. This series is purposefully engineered for industrial automation, metal-forming equipment, heavy-duty hydraulic power units, and medium-to-high pressure control circuits, incorporating an advanced swashplate design with responsive variable control manifolds (such as pressure compensator or constant power regulators). Genlu guarantees 100% Drop-in Interchangeability across standard SAE mounting flanges, parallel or splined drive shafts, port dimensions, and regulatory control valving logics compared to factory original benchmarks. Every ZNYB variable pump assembly undergoes strict 100% simulation testing under dynamic heavy-load parameters to ensure exceptional volumetric behavior and premium transient responsiveness in demanding factory environments.

Technical Specifications

• Product Series: ZNYB Series Swashplate Axial Piston Variable Displacement Pump

• Key Model Target Identifiers: ZNYB02020101, ZNYB02020201

• Nominal Geometric Displacement: 20 cc/rev to 45 cc/rev (precisely configured per reference model suffix)

• Nominal Circuit Operating Pressure: 31.5 MPa (315 bar)

• Peak Transient Circuit Pressure: 35 MPa (350 bar)

• Permissible Operational Speeds: 600 rpm to 2800 rpm

• Control Methodologies: Pressure Compensation / Constant Power Regulation (adjusting flow on-demand to limit thermal loss)

• Housing Structural Material: High-tensile shock-absorbing ductile iron matrix casing

• Direction of Rotation: Right Hand (Clockwise, looking from the drive shaft end)

Key Technical Advantages:

• Ultra-Rigid Ductile Iron Housing via FEA Optimization: To withstand cyclical hydraulic load variations, the ZNYB chassis is cast from premium, stress-relieved nodular iron. The structural shell is optimized through Finite Element Analysis (FEA) to eliminate block distortion under a continuous 31.5 MPa pressure, reducing uneven abrasive wear on internal rotary parts.

• Advanced 9-Piston Rotary Block with Hydrostatic Slipper Balancing: The cylinder barrel implements a classic asymmetric 9-piston matrix coupled with nitrided piston rods and mirror-finished slipper shoes. Driven by an advanced hydrostatic pressure balance track under the slippers, running friction torque is minimized, pushing mechanical efficiency above 95%.

• High-Sensitivity Adaptive Variable Displacement Manifold: Configuration nodes like the ZNYB02020101 house microsecond-response feedback springs and precision-ground spools. The moment system resistance encounters preset cut-off thresholds, the pump adjusts the swashplate angle seamlessly, ensuring perfect power management and checking unnecessary fluid heating.

• High-Capacity Dual-Row Main Drive Bearings: The drive shaft is centered by premium, heavy-load rolling bearings rated for exceptional radial capacity and vibration dampening. This setup easily accommodates minor alignment variations from electric motor couplings, securing the shaft assembly against dynamic seals weeping over long intervals.

Application Areas:

• Metal Forming & Machine Tool Networks: Compact hydraulic presses, sheet metal shearing/bending equipment, die-casting auxiliary circuits, and CNC machining high-pressure power sources.

• Industrial Automation & Process Machinery: Plastic injection molding units, multi-station clamping hydraulic manifolds, paper-mill processing, and automated textile web control blocks.

• Environmental & Material Handling Fleet: Municipal waste compaction stations, specialized hydraulic lift platforms, and compact material handling handling gear.

Expert Maintenance Tips:

• Mandatory Case Priming Prior to Operational Startup (Critical Protocol): Once the pump is integrated into the grid and before energizing the electric motor or engine, you must completely flood the pump casing with clean, highly filtered hydraulic fluid through the highest available case drain port. Starting the pump unprimed will score the piston shoes and valve plate through dry friction within seconds, leading to catastrophic failure.

• Isolate Case Drain Lines from High-Backpressure Circuits: The dedicated casing drain lines of the ZNYB02020101 / ZNYB02020201 must run independently back to the reservoir via an unrestricted line, discharging below the static oil level. Never tie this line into main system return paths or lines choked with high-differential filters; high case backpressure will instantly blow out the main shaft lip seal.

• Rigid Fluid Cleanliness and Thermal Audits: As a high-precision variable piston component, fluid filtration must maintain a consistent index of $\le 10\mu m$ (ISO 18/16/13 target matrix). Furthermore, carefully monitor operating conditions to keep continuous tank temperatures under $60^\circ\text{C}$. Overheated oil severely degrades viscosity, breaking down vital boundary oil films on the piston sliding surfaces.
